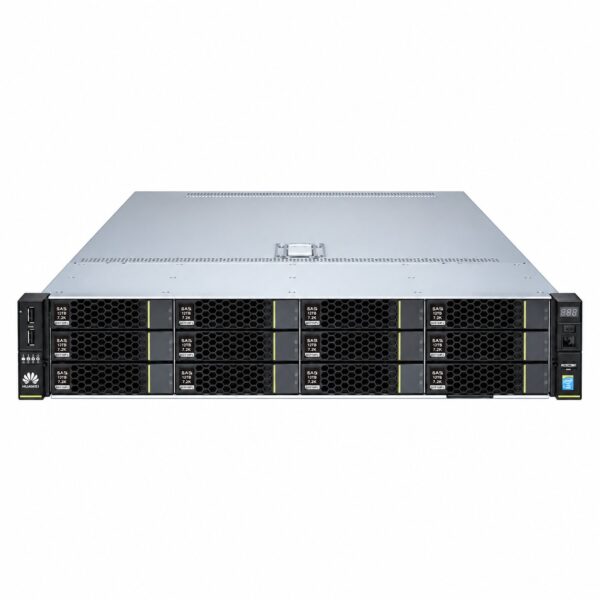

Huawei 2288C V5 Server

Huawei 2288C V5 Server

2288C V5

SKU: 2288CV5 Category: Brand: ,
Request a quote Email SKU

Enterprise stock · tested · export documentation available

Huawei 2288C V5 Server – Product Documentation & Specifications

Product Overview

The Huawei 2288C V5 is a 2U 2-socket rack server designed for data center and enterprise workloads. It supports 2nd Generation Intel Xeon Scalable processors (Cascade Lake and Skylake), delivering high performance for cloud computing, virtualization, high-performance computing (HPC), distributed storage, and big data analytics . The server features DDR4 memory support up to 2933 MT/s, flexible storage configurations, and multiple PCIe 3.0 expansion slots. Integrated with Huawei’s iBMC management chip, it enables remote administration and intelligent system monitoring . The 2288C V5 is built for high reliability, energy efficiency, and ease of deployment, making it suitable for both enterprise IT core businesses and telecommunications applications .

Product Specifications

Category Specification Details
Form Factor 2U Rack Server
Processor 1 or 2 x 2nd Gen Intel Xeon Scalable processors (Cascade Lake/Skylake); Up to 20 cores per processor, 80 threads per system; 2 x 10.4 GT/s UPI links; Intel Turbo Boost Technology 2.0; Intel Hyper-Threading Technology; Intel AVX-512; Intel DL Boost (VNNI) – Cascade Lake only
Memory 16 x DDR4 DIMM slots; Supports RDIMM and LRDIMM; Memory speed up to 2933 MT/s; Max capacity: 1,024 GB
Storage Configuration Flexible HDD/SSD configurations: 8 x 2.5″ SAS/SATA/SSD; 12/16/20 x 3.5″ SAS/SATA; 4/8/12/24/28 x NVMe SSD; 31 x 2.5″ SAS/SATA/SSD; 2 x M.2 SSD
RAID Support RAID 0, 1, 1E, 10, 5, 50, 6, 60 (varies by controller); RAID Cache with supercapacitor power backup
Network Interfaces Onboard: 2 x 10GE optical/electrical ports + 2 x GE electrical ports; Flexible I/O cards: Optional 2 x GE, 4 x GE, 2 x 10GE, 2 x 25GE, or 1/2 x 56G FDR IB interfaces
PCIe Expansion Up to 6 x PCIe 3.0 standard slots
Management iBMC management chip (Hi1710) with VGA support; Redfish, SNMP, IPMI 2.0 support; HTML5/VNC KVM remote management; Agentless management; Optional FusionDirector for lifecycle automation
Cooling 4 x hot-swappable counter-rotating fans with N+1 redundancy
Power Supply 2 x hot-swappable redundant power supplies (1+1); Options: 550W AC Platinum, 900W AC Platinum/Titanium, 1500W AC Platinum, 1500W 380V HVDC, 1200W -48V DC
Physical Dimensions 3.5″ drive chassis: 86.1 mm × 447 mm × 748 mm; 2.5″ drive chassis: 86.1 mm × 447 mm × 708 mm
Operating Temperature 5°C to 45°C (41°F to 113°F); Complies with ASHRAE A3 and A4 standards
Certified OS Ubuntu 20.04 LTS (certified)
