Huawei CloudEngine CE6880-48S4Q2CQ-EI
CE6880-48S4Q2CQ-EI
Enterprise stock · tested · export documentation available
Huawei CloudEngine CE6880-48S4Q2CQ-EI – Product Documentation
Product Overview

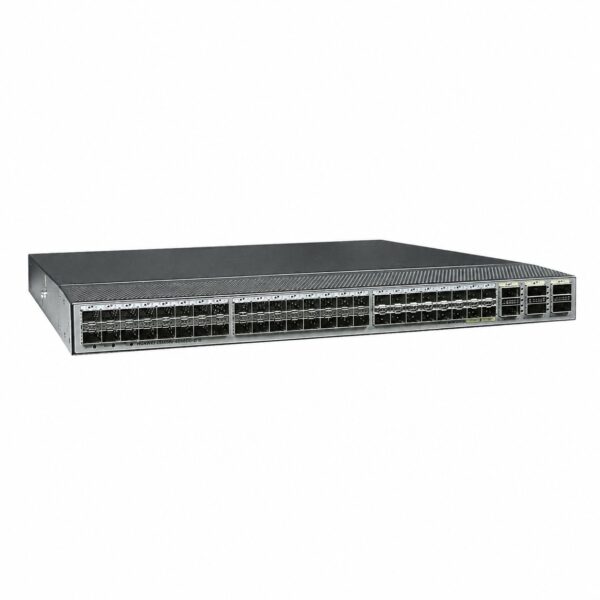

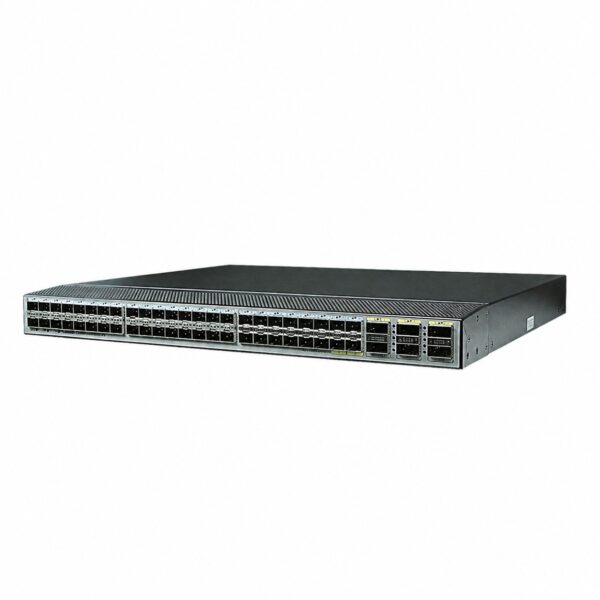

The Huawei CloudEngine CE6880-48S4Q2CQ-EI is a high-performance, high-density 10GE Top-of-Rack (ToR) data center switch designed for cloud-scale and enterprise networking environments. Housed in a compact 1U form factor, this switch delivers ultra-low latency (sub-2 microseconds) and robust forwarding performance, making it an ideal solution for spine-leaf architectures and mission-critical data center deployments.

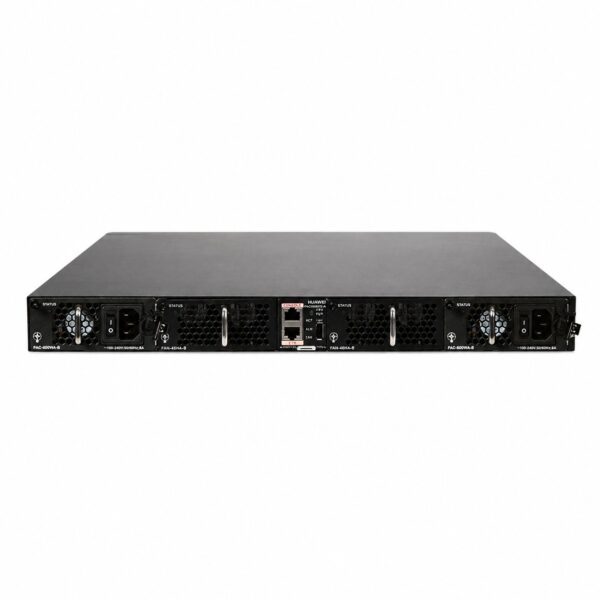

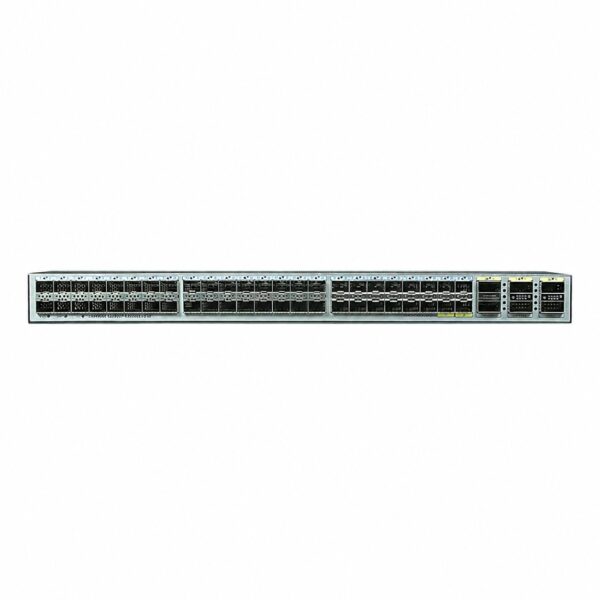

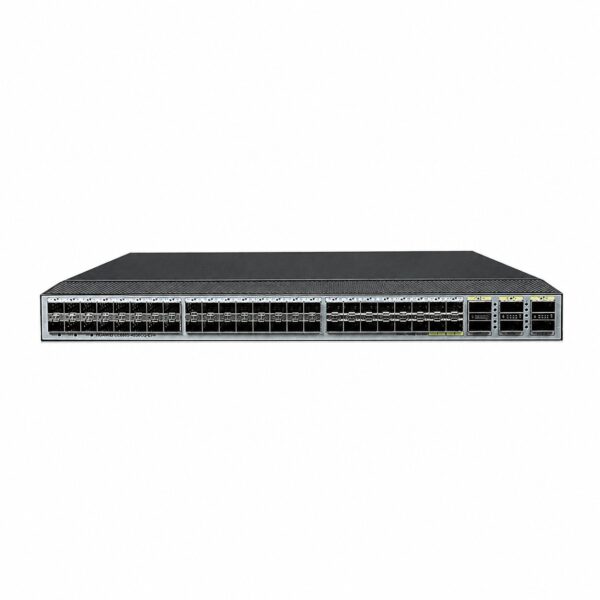

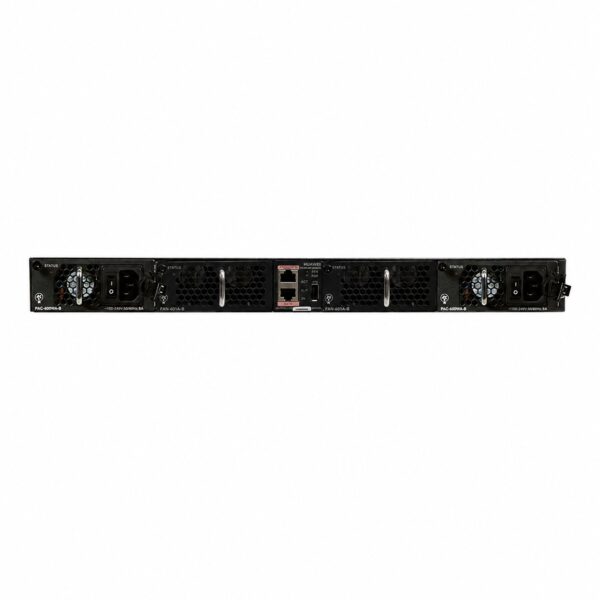

The CE6880-48S4Q2CQ-EI provides 48 x 10GE SFP+ access ports alongside flexible 40GE/100GE uplink capabilities, enabling seamless network scalability. It supports advanced virtualization features including VXLAN, BGP-EVPN, M-LAG, and iStack, which simplifies network design and enhances operational efficiency. The switch integrates with SDN controllers and cloud platforms through open APIs and supports Zero Touch Provisioning (ZTP) for automated deployment. With dual redundant power supplies and modular fan assemblies supporting front-to-back or back-to-front airflow, it ensures high reliability and flexible deployment options across diverse data center environments.
Product Specifications
| Category | Specification | Details |
|---|---|---|
| Port Configuration | 10GE SFP+ Ports | 48 x ports (ports 1–12 support 10/100/1000 Mbit/s; ports 13–48 support 100/1000 Mbit/s) |
| 40GE QSFP+ Ports | 4 x ports (cannot be split into 4 x 10GE) | |
| 40GE/100GE QSFP28 Ports | 2 x ports (default rate 40GE; configurable to 100GE; splitting into 4 x 10GE supported; when set to 100GE, specific 10GE ports become unavailable) | |
| Performance | Switching Capacity | 1.6 Tbit/s |
| Packet Forwarding Rate | 960 Mpps | |
| Latency | Sub-2 microseconds | |
| Buffer Size | 16.5 MB | |
| Physical Specifications | Dimensions (W x D x H) | 442.0 mm x 420.0 mm x 43.6 mm |
| Weight (fully loaded) | 8.7 kg | |
| Power | Power Supply Slots | 2 (supports 1+1 redundancy, hot-swappable) |
| Power Supply Options | 600W AC / 350W DC | |
| Input Voltage (AC) | 90 V to 290 V (rated 100–240V, 50/60Hz) | |
| Input Voltage (DC) | -38.4 V to -72 V (rated -48–-60V) | |
| Maximum Power Consumption | 267 W | |
| Typical Power Consumption | 147 W (100% load, 48xSFP+ cables, dual PSU) | |
| Typical Heat Dissipation | 500 BTU/hr (100% load) | |
| Maximum Heat Dissipation | 911 BTU/hr | |
| Cooling | Fan Slots | 2 (must have both operational; hot-swappable) |
| Airflow Direction | Front-to-back or back-to-front (configurable based on modules) | |
| Noise (27°C, sound pressure) | < 52 dBA | |
| Environmental | Operating Temperature | 0°C to 40°C (derated 1°C per 220m above 1800m) |
| Storage Temperature | -40°C to +70°C | |
| Operating Humidity | 5% to 95% RH (non-condensing) | |
| Altitude | < 5000 m | |
| Management and | Console Port | 1 x RJ45 |
| Connectivity | ETH Management Port | 1 x RJ45 (10/100/1000 Mbit/s) |
| USB Port | 1 x USB 2.0 | |
| Key Technologies | Virtualization | iStack (up to 16 switches), M-LAG, VXLAN, TRILL |
| Programmability | Open Programmability System (OPS), Open APIs, ZTP | |
| Layer 3 Features | BGP-EVPN, MPLS | |
| Processor & Memory | CPU | 8-core, 1.5 GHz |
| DRAM | 2 GB | |
| NAND Flash | 1 GB | |
| NOR Flash | 32 MB | |
| Reliability | MTBF | 54.65 years |
| MTTR | 1.81 hours | |
| Availability | 0.99999622209 | |
| Surge Protection | AC Power | Common mode 6kV, Differential mode 6kV |
| DC Power | Common mode 4kV, Differential mode 2kV |
Ordering Information
| Part Number | Part Model | Description |
|---|---|---|
| 02350SRB | CE6880-48S4Q2CQ-EI | Switch (without fans and power modules) |
| 02350SRE | CE6880-EI-F-B0A | Switch with 2x AC power modules and 2x fan boxes (port-side exhaust) |
| 02350SRF | CE6880-EI-B-B0A | Switch with 2x AC power modules and 2x fan boxes (port-side intake) |
