Dell PowerEdge M630 2SFF — Product Datasheet

Product Overview

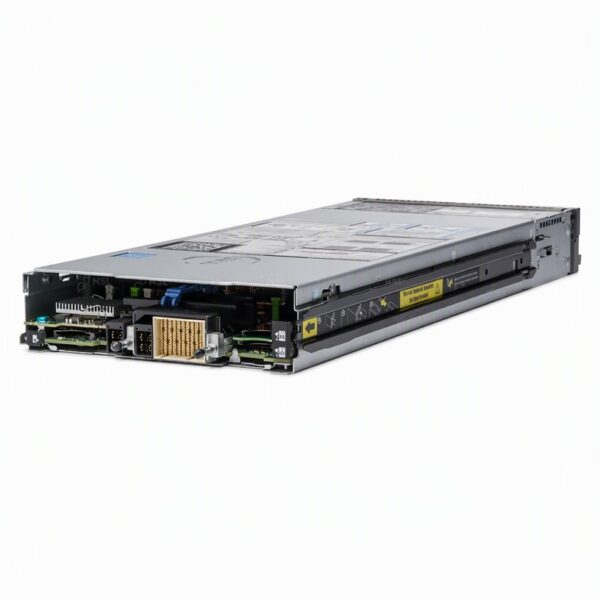

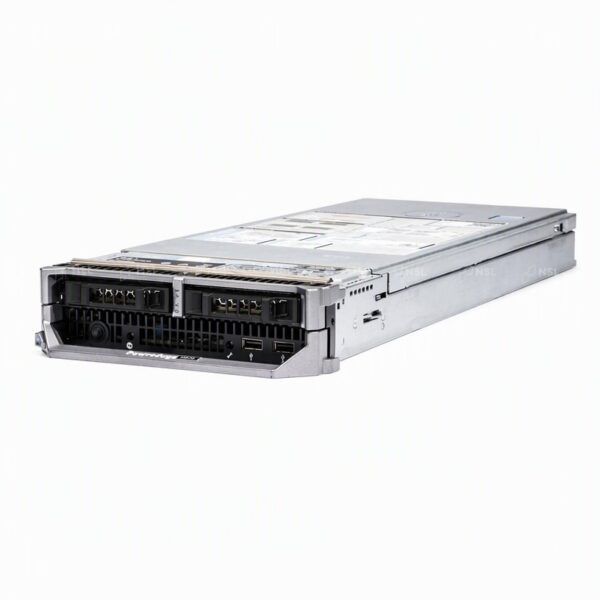

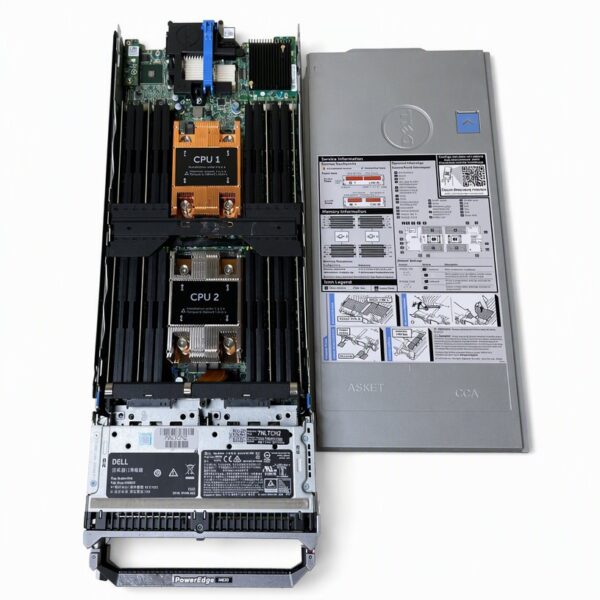

The Dell PowerEdge M630 2SFF is a half-height blade server designed for the PowerEdge M1000e and VRTX modular enclosures. It is a dual-socket platform built around the Intel Xeon E5-2600 v3/v4 processor family, delivering high core density and substantial memory capacity within a compact blade form factor. The 2SFF designation refers to its support for two 2.5-inch small form factor drive bays, making it suitable for workloads that prioritize balanced local storage performance and redundancy. With 24 DDR4 DIMM slots and support for up to 44 processor cores across two sockets, the M630 is positioned for virtualization, database management, and other demanding data center applications that require scalable compute resources in a high-density enclosure environment.

Specifications

Feature Technical Specification
Form Factor Half-height blade; up to 16 nodes per M1000e 10U chassis; up to 4 nodes per VRTX chassis
Dimensions (H × W × D) 197.9 mm × 50.35 mm × 564.9 mm (7.79 in × 1.98 in × 22.2 in)
Processor Intel Xeon E5-2600 v3 or v4 product family
Processor Sockets 2 × LGA2011-3
Max Cores (Dual Socket) Up to 44 cores (22 per CPU)
Cache 2.5 MB per core; core options: 4, 6, 8, 10, 12, 14, 16, 18, 20, 22
Chipset Intel C610 series
Memory Slots 24 DIMM slots (12 per processor)
Memory Type DDR4 RDIMM and LRDIMM
Memory Capacity Up to 1.5 TB (with dual processors and 64 GB LRDIMMs)
Memory Speed Up to 2400 MT/s (also 2133 MT/s, 1866 MT/s depending on configuration)
DIMM Sizes Supported 4 GB, 8 GB, 16 GB, 32 GB, 64 GB DDR4
Storage Bays (2SFF) 2 × 2.5-inch hot-swap SAS, SATA, or PCIe SSD drives
Alternative Storage Up to 4 × 1.8-inch SATA SSDs (when configured accordingly)
RAID Controllers PERC S130 (software RAID), PERC H330, PERC H730, PERC H730P
PCIe Mezzanine Slots 2 × PCIe 3.0 x8 mezzanine slots
Supported Mezzanine Cards Dual-port 10 Gb Ethernet, quad-port 1 Gb Ethernet, FC8 Fibre Channel, FC16 Fibre Channel, InfiniBand
Embedded NIC Modular 4-port 10 GbE NIC (chassis-dependent)
Remote Management iDRAC8 with Lifecycle Controller
USB Ports 1 × USB 2.0 (front), 1 × USB 3.0 (front), 1 × USB 2.0 (internal)
Internal SD Module Dual SD card slots for embedded hypervisor redundancy
Optional vFlash Supported with iDRAC8 Enterprise
Video Matrox G200 VGA integrated with iDRAC (2 GB shared memory)
Power Supply Chassis-level (M1000e: 2700 W Platinum or 3000 W Titanium)
Operating Temperature 10°C to 35°C (50°F to 95°F) continuous operation
Storage Temperature −40°C to 65°C (−40°F to 149°F)
Operating Humidity 10% to 80% relative humidity, 29°C max dew point
