Huawei CloudEngine CE6881-48S6CQ-K Switch – Product Documentation

Name: Huawei CloudEngine CE6881-48S6CQ-K - Refurbished & Tested - SunSpike
Brand: HUAWEI
SKU: CE6881-48S6CQ-K

Product Overview

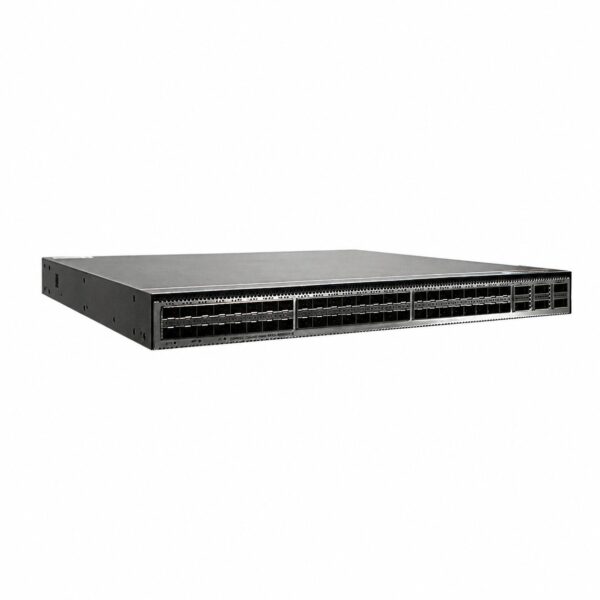

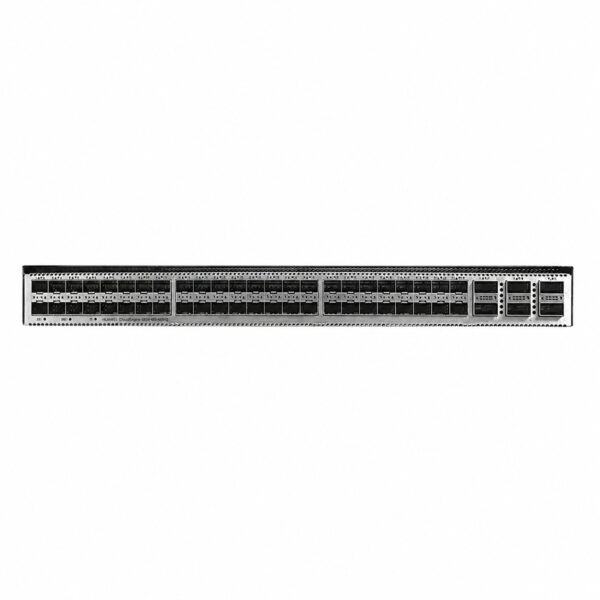

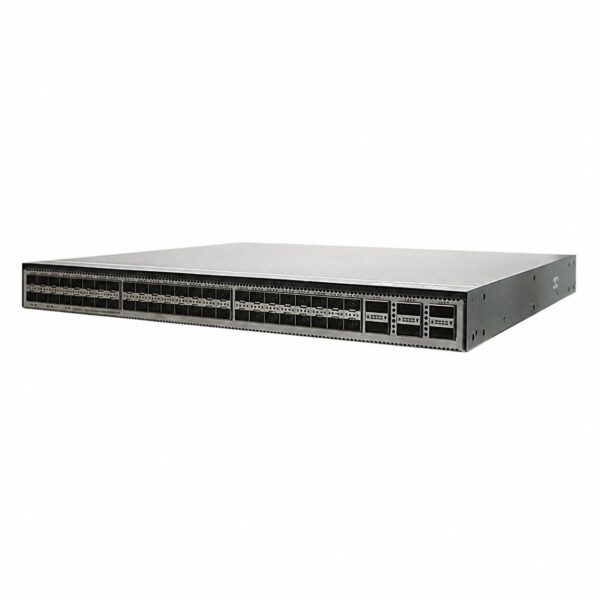

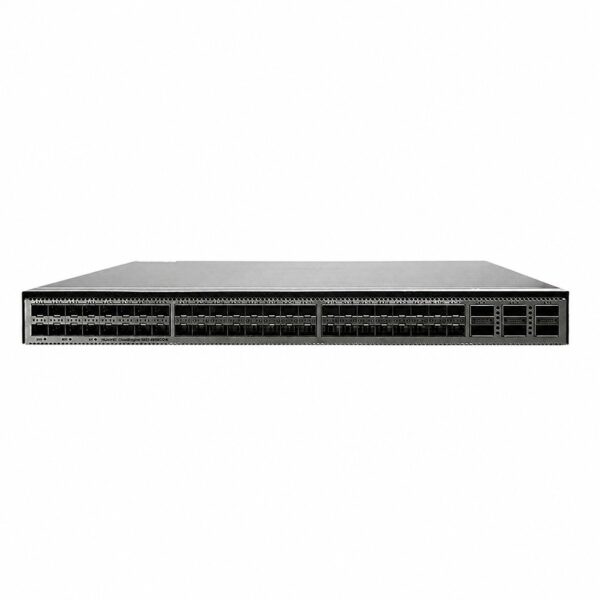

The Huawei CloudEngine CE6881-48S6CQ-K is a next-generation, high-performance 10GE top-of-rack (TOR) switch designed primarily for data centers and high-end campus networks. It features a compact form factor with high port density, providing 48 x 10GE SFP+ access ports and 6 x 40GE/100GE QSFP28 uplink ports in a 1U chassis .

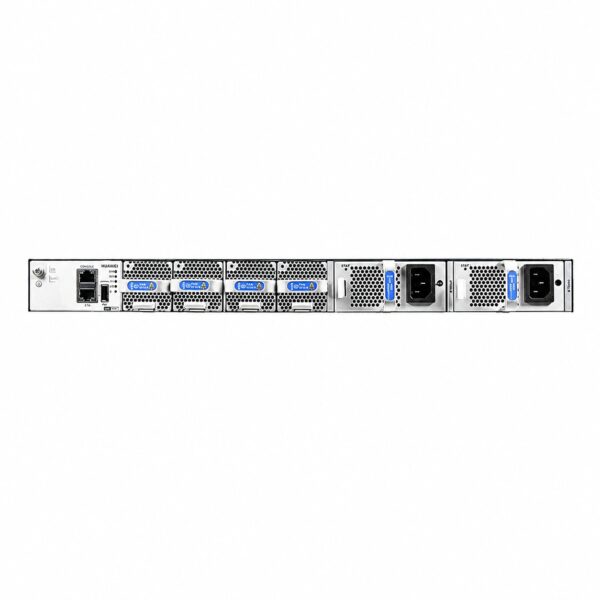

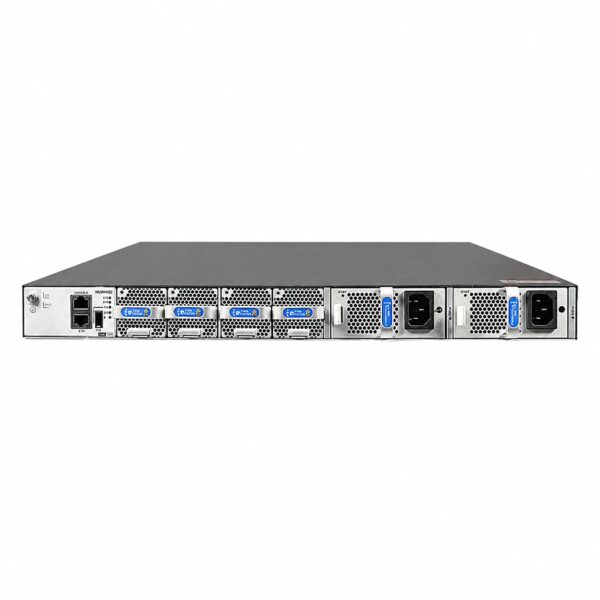

Built on Huawei’s VRP8 software platform, the CE6881-48S6CQ-K supports extensive data center features including VXLAN routing and bridging, BGP-EVPN, and M-LAG for device-level link redundancy . It employs a flexible airflow design (front-to-back or back-to-front) and supports dual, hot-swappable power modules in 1+1 backup mode, with four hot-swappable fan modules providing cooling redundancy .

The switch delivers a switching capacity of 2.16 Tbit/s and a forwarding rate of 940 Mpps . It supports advanced network visibility and O&M capabilities, including Telemetry, iPCA (Packet Conservation Algorithm for Internet) for per-hop packet loss and delay detection, and integration with iMaster NCE-Fabric for simplified network deployment and intelligent operations . Additionally, it supports Zero Touch Provisioning (ZTP) for automated deployment, reducing manual configuration efforts and operational costs .

Technical Specifications

Category	Item	Description
Part Information	Part Number	02353JAP (Chassis only), 02353JAQ (with 2x AC PSU, Port-side intake)
	Model	CE6881-48S6CQ-K
	Starting Support Version	V200R019C10
Ports	Access Ports	48 x 10GE SFP+ Ethernet optical ports
	Uplink Ports	6 x 40GE/100GE QSFP28 Ethernet optical ports
	Management Port	1 x ETH management port (RJ45)
	Console Port	1 x Console port (RJ45)
	USB	1 x USB port
Performance	Switching Capacity	2.16 Tbit/s
	Forwarding Rate	940 Mpps
	MAC Address Entries	256K
	IPv4 FIB Entries	256K
	IPv6 FIB Entries	80K
	ARP Table Size	256K
	ND Table Size	80K
	Multicast FIB (IPv4/IPv6)	32K / 2K
	Max VRF	4096
	Max ECMP Paths	128
	Max ACL Number	30K
Physical Specifications	Dimensions (H x W x D)	43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.)
	Max Dimensions (with protrusions)	43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.4 in. x 17.6 in.)
	Weight (with 2 PSUs & 2 FANs)	7.8 kg (17.20 lb)
Power Specifications	Power Source Type	AC / DC / HVDC
	AC Input Voltage	Rated: 100 V AC to 240 V AC, 50/60 Hz; Max: 90 V AC to 290 V AC, 47 Hz to 63 Hz
	DC Input Voltage	Rated: -48 V DC to -60 V DC; Max: -38.4 V DC to -72 V DC
	HVDC Input Voltage	Rated: 240 V DC; Max: 190 V DC to 290 V DC
	Max Chassis Power Consumption	349 W
	Typical Chassis Power Consumption	194 W (with high-speed cables) / 240 W (with optical modules)
	Max Chassis Heat Dissipation	1191 BTU/hr
	Typical Chassis Heat Dissipation	662 BTU/hr / 819 BTU/hr
Environmental	Operating Temperature	0°C to 40°C (32°F to 104°F) at 0-1800m altitude
	Storage Temperature	-40°C to +70°C (-40°F to +158°F)
	Relative Humidity	5% RH to 95% RH, noncondensing
	Altitude	< 5000 m (16404 ft.)
Acoustics	Noise (Sound Pressure @ 27°C)	< 57 dBA (Back-to-front airflow) / < 58 dBA (Front-to-back airflow)
Slot Information	Power Supply Slots	2 slots, horizontal insertion, supports 1+1 backup, hot-swappable
	Fan Slots	4 slots, horizontal insertion, hot-swappable, supports hot backup
