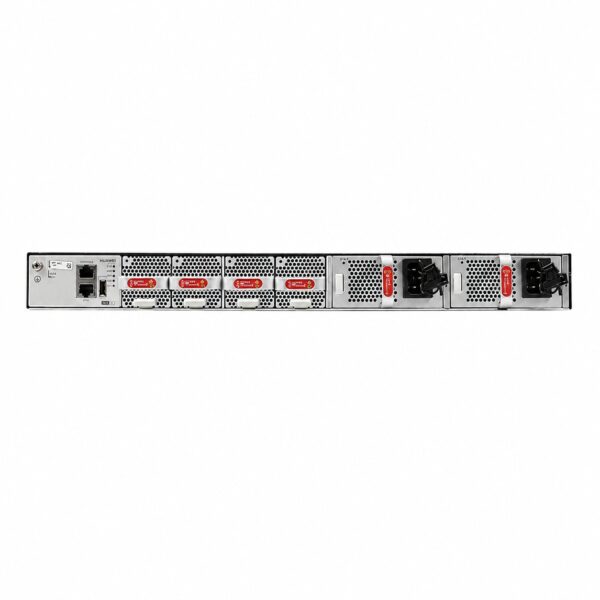

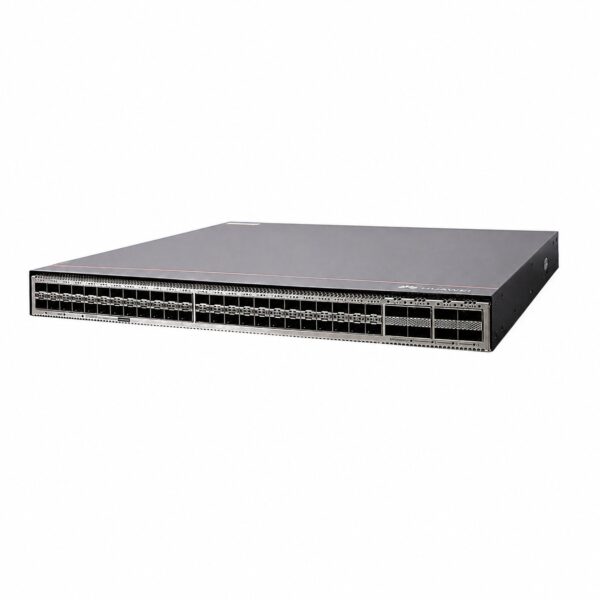

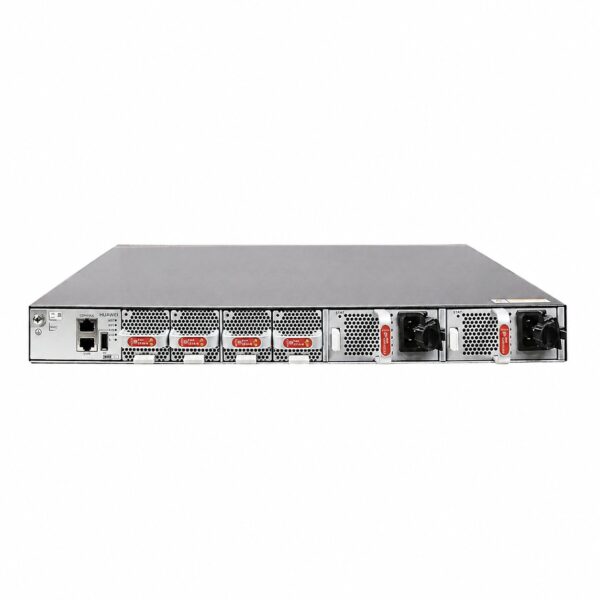

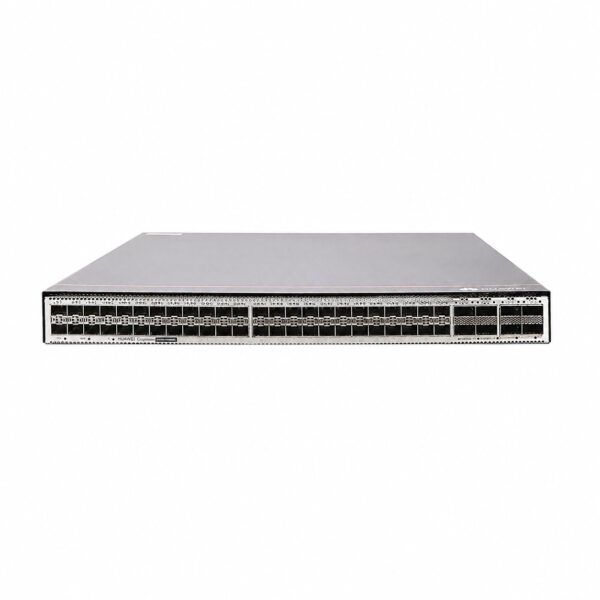

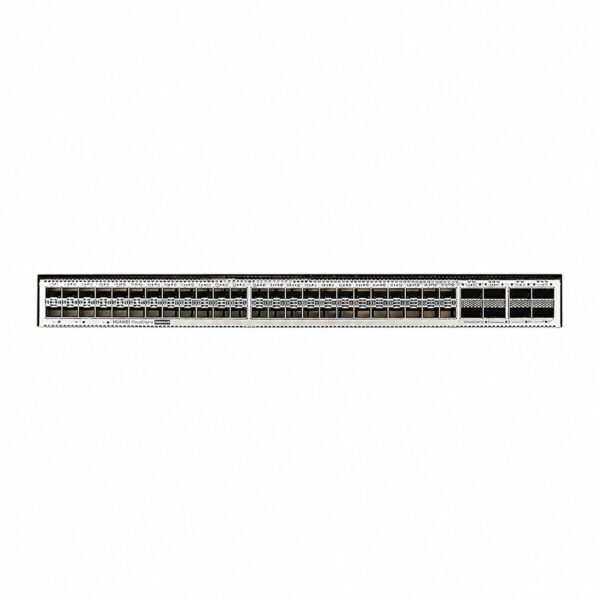

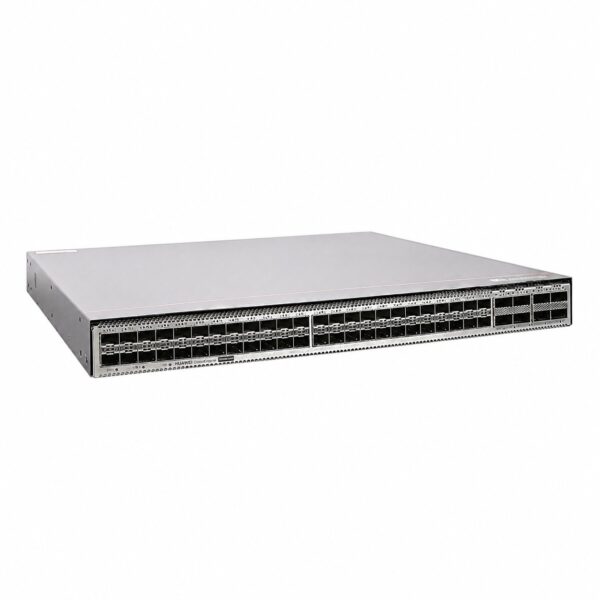

Huawei CloudEngine CE6860-SAN
CE6860-SAN
Enterprise stock · tested · export documentation available
Huawei CloudEngine CE6860-SAN Product Documentation
Product Overview
The Huawei CloudEngine CE6860-SAN is a next-generation, high-density data center storage network switch purpose-built for all-flash storage arrays . As part of Huawei’s CloudEngine 6800 series, this switch delivers high performance, ultra-low latency, and carrier-class reliability for modern storage networks .
The CE6860-SAN features advanced hardware architecture offering dense 10GE/25GE/50GE port access with flexible 100GE/200GE uplink capabilities . It leverages Huawei’s proprietary iLossless intelligent algorithm to ensure lossless Ethernet performance, enabling NVMe storage systems to operate at peak efficiency and fully unlocking the potential of all-flash storage . When paired with Huawei OceanStor Dorado all-flash storage arrays, the end-to-end latency can reach as low as 0.05 ms .
The switch supports NOF+ (NVMe Over Fabric Plus) technology, enabling plug-and-play storage network deployment, rapid host discovery, and end-to-end visualization of links and performance . With support for advanced data center features including VXLAN, BGP EVPN, and M-LAG, the CE6860-SAN integrates seamlessly into software-defined networks managed by Huawei iMaster NCE-Fabric .
Product Specifications
| Category | Parameter | Details |
|---|---|---|
| Model | Product Model | CE6860-SAN |
| Part Numbers | 02354FPM (without PSU/fans), 02354FPN (with AC PSU, port-side intake), 02354FPP (with AC PSU, port-side exhaust) | |
| First Supported Version | V300R020C10SPC200 | |
| Ports | Downlink Ports | 48 x 25GE SFP28 (compatible with 10GE) or 48 x 50GE SFP56 (compatible with 25GE, upgrade requires RTU license) |
| Uplink Ports | 8 x 100GE QSFP28 (compatible with 40GE) or 8 x 200GE QSFP56 (compatible with 100GE/40GE, upgrade requires RTU license) | |
| Management Ports | 1 x RJ45 Console Port, 1 x RJ45 ETH Management Port, 1 x USB Port | |
| Performance | Switching Capacity | 8 Tbps |
| Forwarding Rate | 2400 Mpps | |
| Packet Buffer | 64 MB | |
| CPU | 4-core, 1.4 GHz | |
| Memory | DRAM: 8 GB; NOR Flash: 64 MB; NAND Flash: 4 GB | |
| Power | Power Supply Types | AC: 90V – 290V; DC: -38.4V – -72V; 240V HVDC: 190V – 290V; 380V HVDC: 190V – 400V |
| Maximum Power Consumption | 619W (48 x 50GE + 8 x 200GE, 100% load, high temperature); 544W (48 x 25GE + 8 x 100GE, 100% load, high temperature) | |
| Typical Power Consumption (50% load) | 374W (50GE configurations); 360W – 407W (25GE configurations) | |
| Static Power Consumption | 322W | |
| Power Slot Count | 2 (supports 1+1 redundancy, hot-swappable) | |
| Cooling | Fan Slots | 4 (hot-swappable, supports N+1 redundancy) |
| Airflow Direction | Port-side intake or port-side exhaust (configurable) | |
| Physical | Dimensions (W x D x H) | 442 x 420 x 43.6 mm (1RU) |
| Weight (Fully Configured) | 8.7 kg (with AC PSU and fan modules, excluding optics) | |
| Chassis Weight (Empty) | 6.7 kg (without PSU, fans, or optics) | |
| Environmental | Operating Temperature | 0°C to 40°C (0m – 1800m) |
| Storage Temperature | -40°C to +70°C | |
| Relative Humidity | 5% – 95%, non-condensing | |
| Reliability & Availability | Link Aggregation | LACP |
| Redundancy | M-LAG, 1+1 Power Redundancy, N+1 Fan Redundancy | |
| Bidirectional Forwarding Detection | Hardware BFD with 3.3ms minimum interval | |
| Spanning Tree | STP, RSTP, VBST, MSTP, BPDU Protection | |
| VRRP | VRRP, VRRP Load Balancing, BFD for VRRP | |
| Data Center Features | Network Virtualization | VXLAN Routing and Bridging, BGP EVPN |
| SDN Compatibility | iMaster NCE-Fabric, OpenFlow, OPS Programming | |
| Intelligent Lossless Network | iLossless Algorithms | AI ECN, PFC Deadlock Prevention, ECN Overlay, iQCN |
| NOF+ | iNOF (intelligent NOF), Plug-and-Play, NPCC | |
| RoCE Support | RDMA, RoCE v1/v2, NVMe over RoCE | |
| O&M | Telemetry & Monitoring | Telemetry, NetStream, ERSPAN+, IOAM, Full Flow Analysis, Intelligent Traffic Analysis, Packet Event (loss and ultra-long latency visibility) |
| Precision Timing | 1588v2 | |
| Management & Configuration | Console, Telnet, SSH, SNMP v1/v2/v3, FTP/TFTP, ZTP, NetConf | |
| Security & QoS | Security Features | MACsec, AAA, RADIUS, HWTACACS, 802.1x, ACL, DOS/ARP Attack Protection, Port Isolation, MAC address blacklisting |
| Quality of Service | Flow Classification (Layer 2/3/4), PQ, DRR, PQ+DRR Queue Scheduling, WRED, Traffic Shaping | |
| VLAN | VLAN Support | Access, Trunk, Hybrid modes; Default VLAN |
| IP Routing | IPv4 Dynamic Routing | RIP, OSPF, ISIS, BGP |
| IPv6 Dynamic Routing | RIPng, OSPFv3, ISISv6, BGP4+ | |
| Multicast | Multicast Protocols | IGMP Snooping, IGMP Proxy, PIM-SM, PIM-DM, MBGP, MSDP |
