Huawei CloudEngine S2309TP-EI-DC Switch – Product Documentation

Name: Huawei CloudEngine S2309TP-EI-DC - Refurbished & Tested - SunSpike
Brand: HUAWEI
SKU: S2309TP-EI-DC

Product Overview

The Huawei CloudEngine S2309TP-EI-DC (formerly Quidway S2309TP-EI-DC) is a carrier-grade Layer 2 Gigabit Ethernet switch designed for enterprise intranets and IP Metropolitan Area Networks (MANs) . As part of the S2300 series, this switch delivers high-density port connectivity, cost-effective packet forwarding, and multi-service access capabilities in a compact form factor .

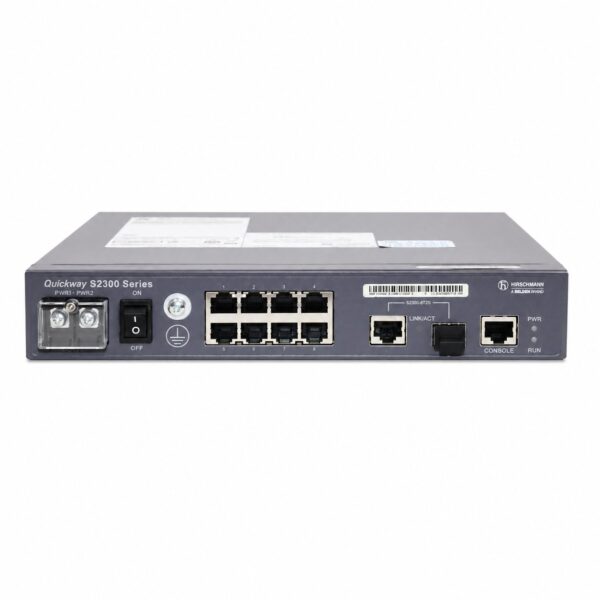

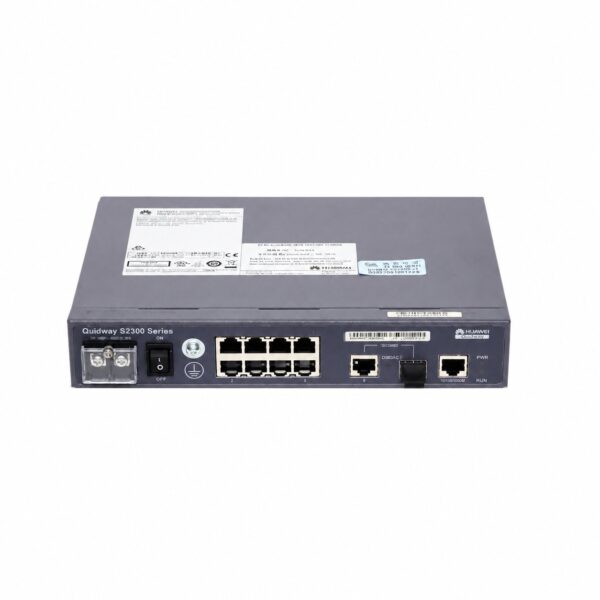

The device features 9 ports: 8 x 10/100Base-T Ethernet ports and 1 x 10/100/1000Base-T + 100/1000Base-X SFP combo port, providing flexible uplink options . With a switching capacity of 32 Gbps and a forwarding performance of 2.7 Mpps, it supports advanced VLAN features including IEEE 802.1Q, QinQ, 1:1 and N:1 VLAN switching .

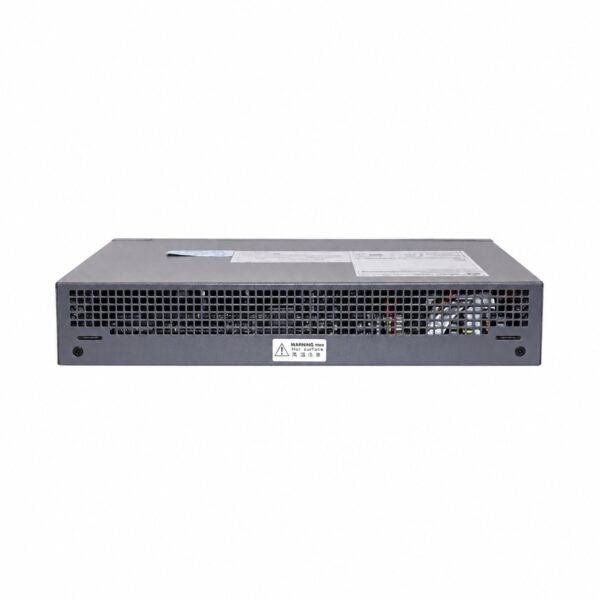

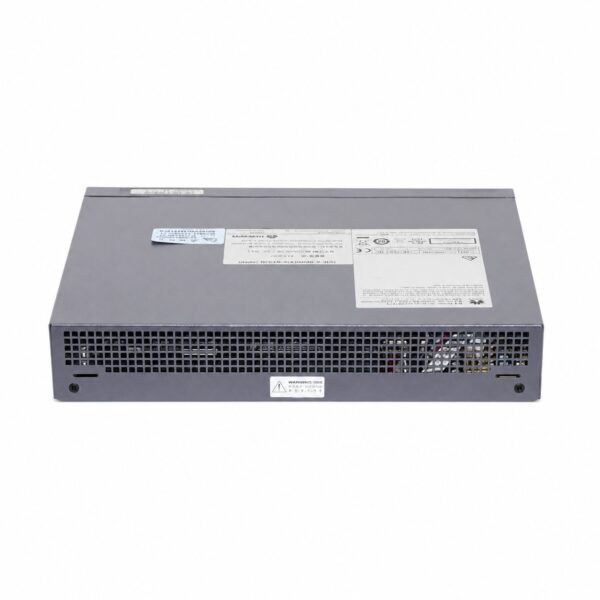

The S2309TP-EI-DC is powered by a -48V to -60V DC power supply with low power consumption of <12.8W, and features a fanless natural heat dissipation design for silent operation . The switch supports comprehensive QoS, multicast management (IGMP Snooping), IPv6 host functions, robust security features (802.1X, dynamic ARP detection, IP Source Guard), and multiple management interfaces including CLI, Telnet, SNMP v1/v2/v3, and Web management .

Product Specification Table

Category	Parameter
General
Product Type	Carrier-grade Gigabit Ethernet Switch
Application Layer	Layer 2
Transmission Rate	10/100/1000 Mbps
Switching Capacity	32 Gbps (Backplane)
Forwarding Performance	2.7 Mpps
Switching Method	Store-and-Forward
MAC Address Table	8K entries
Ports
Port Structure	Non-modular
Fixed Ports	8 x 10/100Base-TX ports; 1 x 10/100/1000Base-T or 100/1000Base-X SFP combo port
Number of Ports	9
Module Slot	1
Transmission Mode	Full-duplex / Half-duplex auto-negotiation
Network Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q
VLAN Features	Supports IEEE 802.1Q (up to 4K VLANs); Port-based VLAN; MAC-based VLAN; Basic QinQ; 1:1 VLAN switching; N:1 VLAN switching
QoS	Port rate limit and traffic rate limit; 4 priority queues per port; 802.1p mapping; SP, WRR, SP+WRR scheduling algorithms; Traffic classification based on source/destination MAC/IP, Layer-4 port, protocol type, VLAN ID, CoS
Multicast	IGMP v1/v2/v3 snooping; Multicast load sharing among bundled ports; Port-based multicast rate limit and traffic statistics
IPv6 Features	IPv6 host functions; Static route configuration; IPv6 ACL; MLD v1/v2 snooping
Security	IEEE 802.1X authentication; Dynamic ARP detection; IP Source Guard; AAA/RADIUS/HWTACACS+/NAC authentication; IP+MAC+port+VLAN binding; Port isolation, port security, sticky MAC; MAC address filtering; Broadcast/multicast/unknown unicast suppression; CPU protection; Port surge protection: 6KV (15KV with external device)
Port Mirroring	1:1 or N:1 port mirroring; RSPAN; Traffic-based mirroring
Management	iStack stacking; Automatic configuration; CLI configuration; Telnet remote configuration; SNMP v1/v2/v3; RMON; HGMP v2 cluster management; SSH v2; Web management; GVRP protocol
Power	DC -48V to -60V
Power Consumption	< 12.8W
Physical Dimensions (W×D×H)	180 × 250 × 43.6 mm
Weight	< 1.4 kg
Environmental Specifications	Operating Temperature: 0°C to 50°C; Operating Humidity: 10% to 90%; Storage Temperature: -5°C to 55°C; Storage Humidity: 10% to 90%; Storage Altitude: 6000m; Operating Altitude: 3000m
