Name: Huawei CloudEngine CE6851-48S6Q-HI - Refurbished & Tested - SunSpike
Brand: HUAWEI
SKU: CE6851-48S6Q-HI

Product Overview

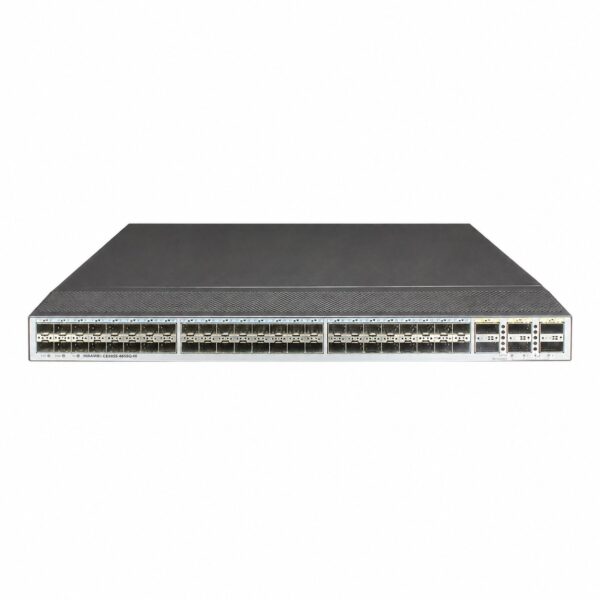

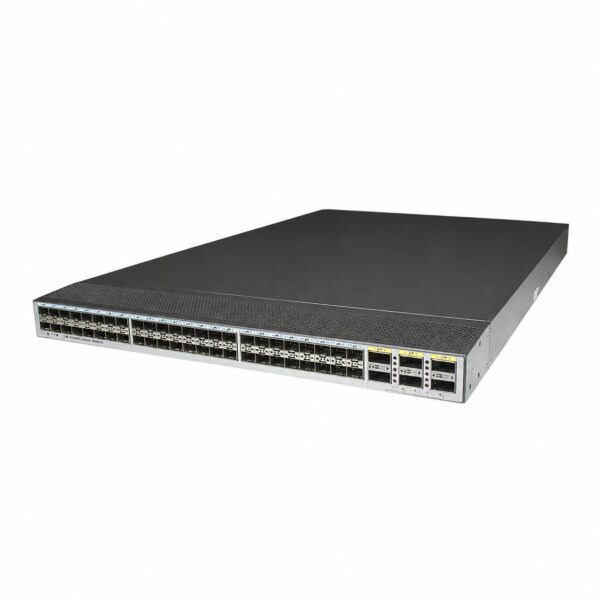

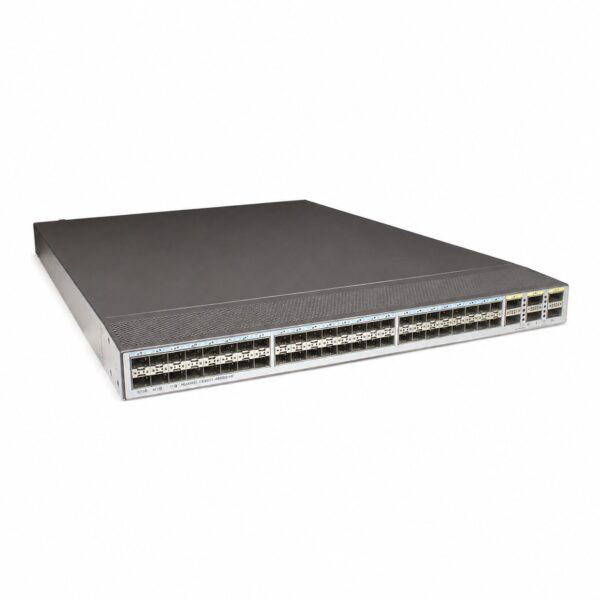

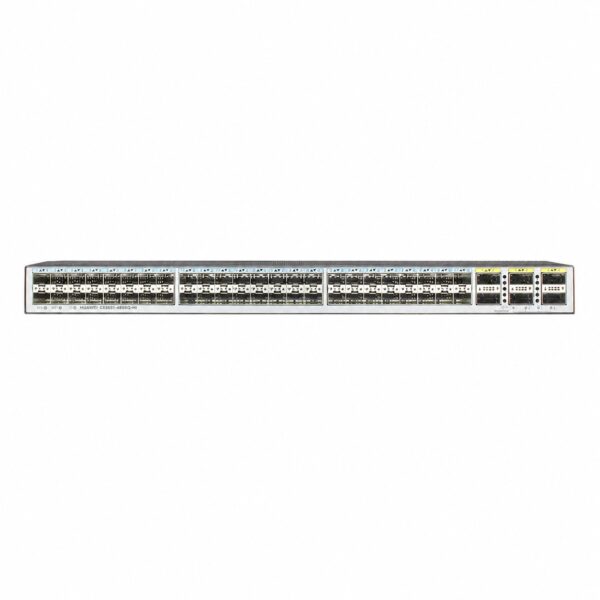

The Huawei CloudEngine CE6851-48S6Q-HI is a high-performance, fixed-configuration 1U top-of-rack (ToR) switch designed for next-generation data centers and high-end campus networks. It provides high-density 10GE server access with 48 x 10GE SFP+ ports and 6 x 40GE QSFP+ uplink ports. Each 40GE port can be split into four 10GE ports, offering flexible deployment options.

This switch is positioned as an access-layer device for data centers, supporting advanced virtualization technologies such as iStack (up to 16 units stacked) and SVF (Super Virtual Fabric). It also features comprehensive network virtualization capabilities, including VXLAN and BGP-EVPN, making it suitable for cloud infrastructure deployments. The CE6851-48S6Q-HI supports programmability via OpenFlow, OPS, and Ansible, and includes automation features like Zero Touch Provisioning (ZTP).

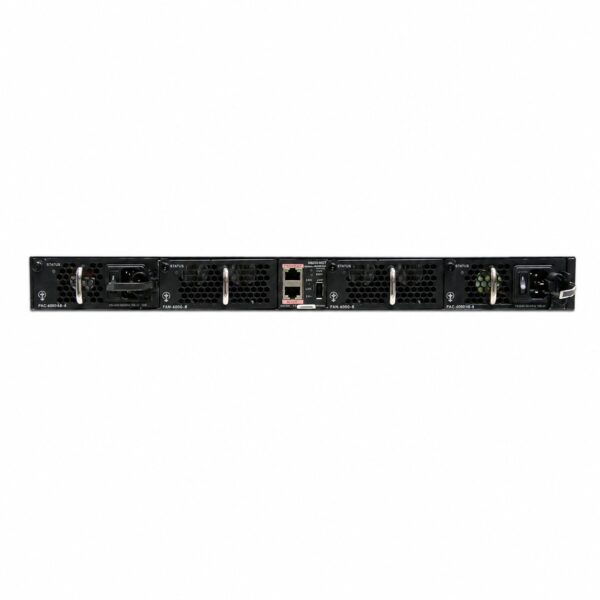

The switch features modular power supply and fan units with 1+1 power redundancy and hot-swappable fans. The airflow direction (front-to-back or back-to-front) depends on the specific order code, which must be matched with the corresponding power modules and fan boxes.

Product Specifications

Category	Specification
Model Name	CE6851-48S6Q-HI
Form Factor	1U Rack-mountable
Service Ports	48 x 10GE SFP+
Uplink Ports	6 x 40GE QSFP+ (each can be split into 4 x 10GE)
Switching Capacity	1.44 Tbit/s
Forwarding Rate	1,080 Mpps
MAC Address Table	288K
IPv4 FIB (Max)	256K
IPv6 FIB (Max)	128K
ARP Table (Max)	128K
VXLAN	Supported
MPLS	Supported
Management Ports	1 x RJ45 Console Port, 1 x RJ45 ETH Management Port, 1 x USB Port
Power Supply	1+1 Redundant, hot-swappable power modules
Cooling	2 x Hot-swappable fan modules, airflow direction varies by model (port-side intake or exhaust)
Max Power Consumption	245 W
Typical Power Consumption	145 W (under stated test conditions)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Operating Humidity	5% to 95% RH, non-condensing
Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm
Weight	5.7 – 8.7 kg (varies by configuration)
Virtualization	iStack, SVF (Super Virtual Fabric)
Reliability	M-LAG, LACP, BFD for BGP/IS-IS/OSPF/Static route, ERPS (G.8032), VRRP
Network Virtualization	VXLAN routing and bridging, BGP-EVPN, TRILL
Programmability	OpenFlow v1.3, OPS, Ansible, Python
Traffic Analysis	NetStream, sFlow
QoS	Traffic classification, ACL, CAR, PQ, WRR, DRR, WRED
Security & Management	802.1x authentication, AAA, RADIUS, HWTACACS, SNMPv1/v2c/v3, SSH, ZTP
Order Code Variations	– 02350JAP (CE6851-48S6Q-HI-F): Includes 2 fan boxes, port-side exhaust – 02350JAQ (CE6851-48S6Q-HI-B): Includes 2 fan boxes, port-side intake – 02350JAR (CE6851-HI-F-B0A): Includes 2 AC power supplies, 2 fan boxes, port-side exhaust – 02350TJJ (CE6851-48S6Q-HI-X): Bare mainframe (fan boxes and power modules excluded)
