Huawei CloudEngine CE6810-48S4Q-LI Switch – Product Documentation

Name: Huawei CloudEngine CE6810-48S4Q-LI - Refurbished & Tested - SunSpike
Brand: HUAWEI
SKU: CE6810-48S4Q-LI

Product Overview

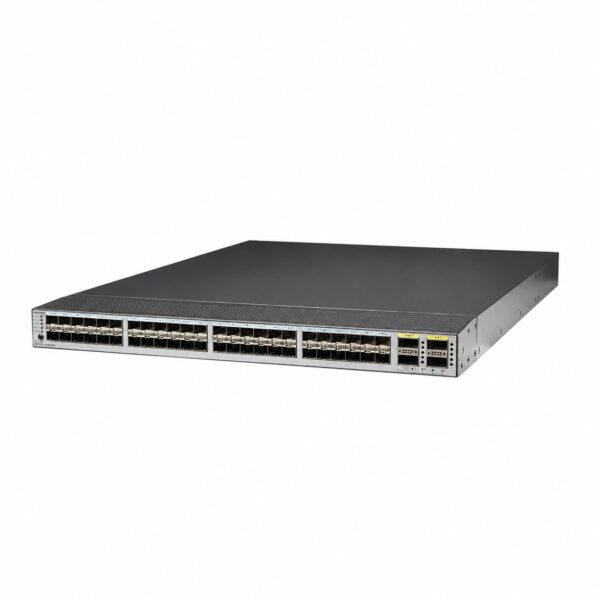

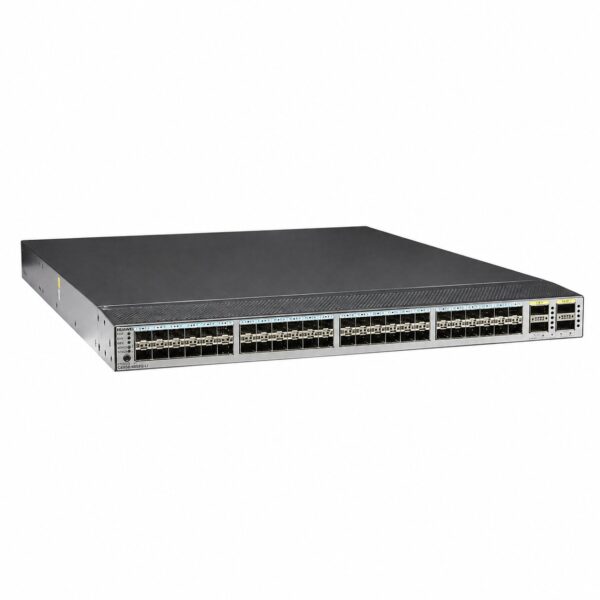

The Huawei CloudEngine CE6810-48S4Q-LI is a high-performance, Top-of-Rack (ToR) data center switch designed for modern, high-density network environments . This fully managed, 1U rack-mountable switch provides high-density 10GE access and 40GE uplink connectivity for enterprise data centers and cloud service provider networks . It is part of Huawei’s CloudEngine 6800 series, which is built on the VRP8 operating system, offering extensive Layer 2 and Layer 3 features, including advanced virtualization capabilities and robust stack management .

The CE6810-48S4Q-LI is engineered to support demanding server farm and data center network architectures, delivering high-speed forwarding rates and low latency for critical applications . It supports flexible airflow designs (front-to-back or back-to-front) to align with various data center cooling strategies and energy-efficient operations .

Product Specifications

Category	Specification
Model	CE6810-48S4Q-LI
Part Number	02350AQB
Enclosure	1U Rack-mountable

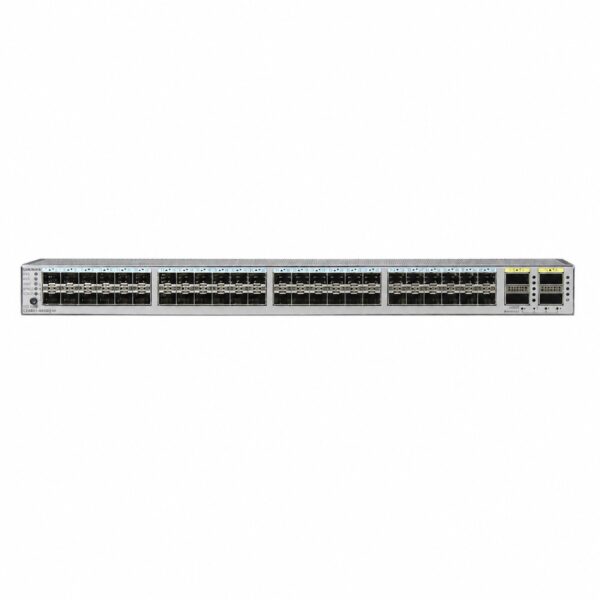

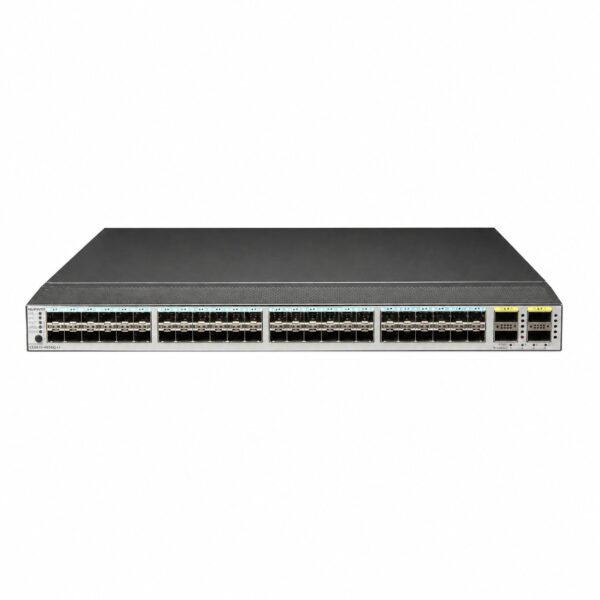

Fixed Ports	48 x 10GE SFP+ ports
Uplink Ports	4 x 40GE QSFP+ ports
Management Ports	1 x Console Port (RJ45), 1 x ETH Management Port (RJ45), 1 x USB Port
Switching Capacity	1.28 Tbps
Packet Forwarding Rate	960 Mpps
MAC Address Table	128,000 entries
IPv4 Routing Table	16,000 routes
VLANs	Supports up to 4094 VLANs (IEEE 802.1Q)
Layer 2 Features	VLAN, QinQ, STP/RSTP/MSTP, ERPS (G.8032), LACP, M-LAG, SVF
Layer 3 Features	Static routing, RIPv1/v2, OSPFv2, IS-IS, BGP, VRRP
Multicast	IGMP Snooping v1/v2/v3 (2048 groups)
Virtualization & Data Center Features	iStack (stacking), SVF (Super Virtual Fabric), VXLAN, TRILL
Security & Management	AAA, RADIUS, SSH, SNMP v1/v2/v3, NetStream, sFlow, RMON, Syslog, ZTP (Zero Touch Provisioning)

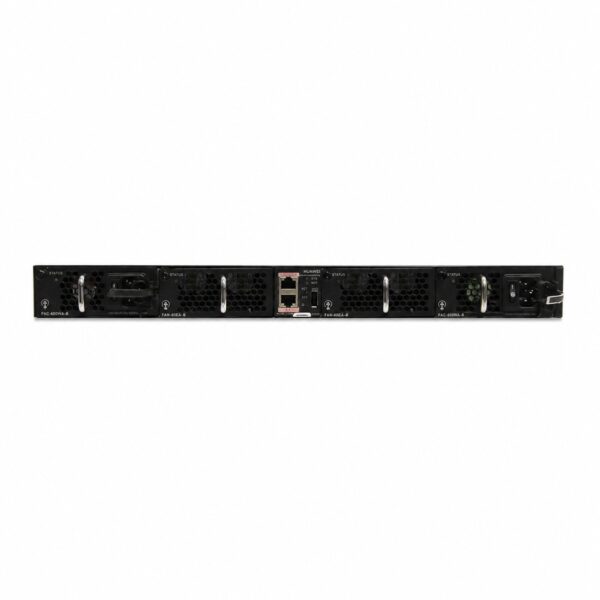

Airflow Design	Front-to-Back or Back-to-Front (field-replaceable fan modules)

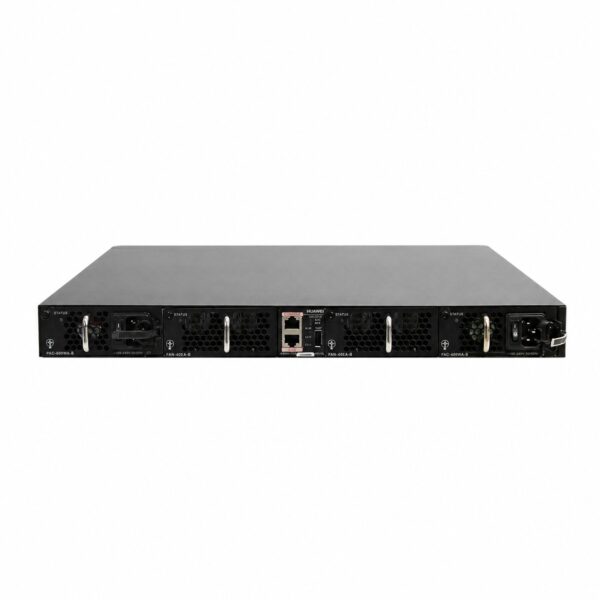

Power Supply	2 x hot-pluggable AC/DC power module slots (redundant capability)
AC Input Voltage	Rated: 100V ~ 240V AC; Max: 90V ~ 290V AC
DC Input Voltage	-38.4V ~ -72V DC
Maximum Power Consumption	238 W
Dimensions (W x D x H)	442.0 mm x 600.0 mm x 43.6 mm (17.4 in. x 23.6 in. x 1.72 in.)
Maximum Weight	10.4 kg (22.93 lbs)
Operating Temperature	0°C to 40°C (32°F to 104°F) at 0-1800m altitude
Storage Temperature	-40°C to +70°C (-40°F to +158°F)
Operating Humidity	5% RH to 95% RH, noncondensing
