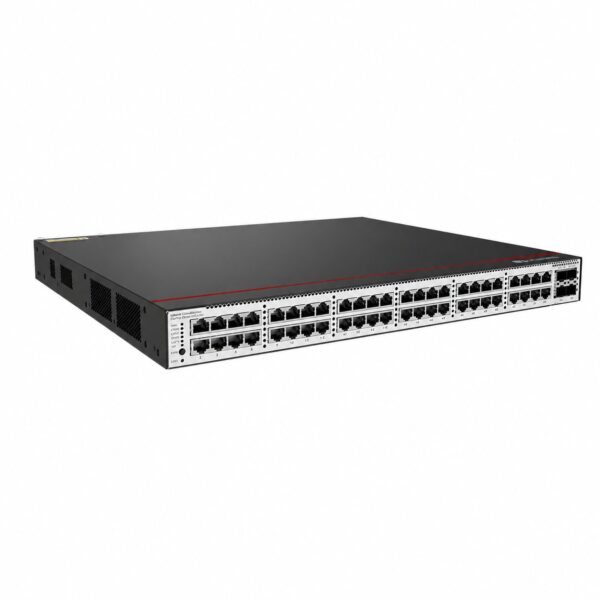

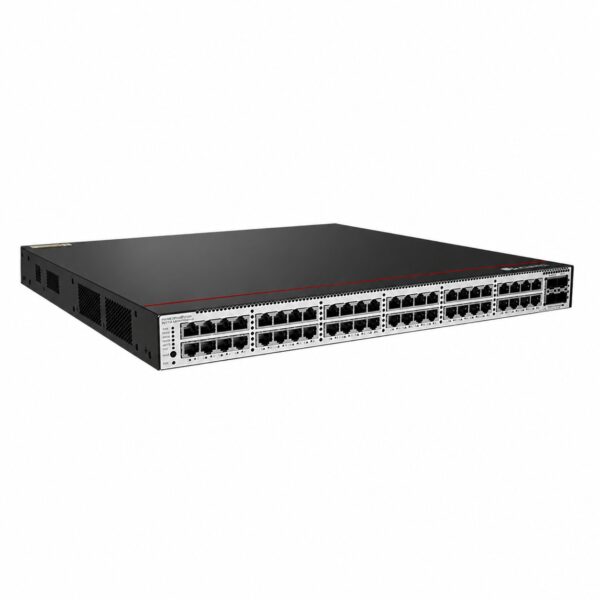

Huawei CloudEngine S5755-S-HT Series Twins Switch: Product Overview

Name: Huawei CloudEngine S5755-S-HT - Refurbished & Tested - SunSpike
Brand: HUAWEI
SKU: S5755-S-HT

The Huawei CloudEngine S5755-S-HT series is a next-generation, high-reliability Twins switch designed for mission-critical network environments . Built on an innovative “one device, dual-plane” architecture, the series implements full redundancy across management, control, and forwarding planes . This is achieved through a dual-CPU independent management architecture, a dual-engine forwarding design, and support for AC/DC hybrid redundant power supplies .

The core differentiator of the S5755-S-HT series is its ability to build a highly reliable M-LAG network using a single switch . An intelligent switchover module is integrated within the device, allowing single-uplink access terminals to join the M-LAG system. In the event of a master engine failure, traffic is swiftly redirected to the backup engine in sub-second time, ensuring zero service interruption . Software upgrades can also be performed on each engine independently without requiring a device reboot .

This series is specifically tailored for environments with stringent reliability requirements, such as production and manufacturing, smart healthcare, and financial services .

Product Specifications

Category	CloudEngine S5755-S48T4X4Y-HT	CloudEngine S5755-S48P4X4Y-HT
Product Type	High-Reliability Gigabit Ethernet Switch, L3 Managed	High-Reliability Gigabit Ethernet Switch, L3 Managed
Fixed Ports	48 x 10/100/1000BASE-T Twin-engine ports	48 x 10/100/1000BASE-T Twin-engine ports
Uplink Ports	4 x 1/2.5/10GE SFP+; 4 x 1/2.5/10/25GE SFP28	4 x 1/2.5/10GE SFP+; 4 x 1/2.5/10/25GE SFP28
Switching Capacity	2.4 Tbps / 24 Tbps	2.4 Tbps / 24 Tbps
Forwarding Performance	672 Mpps	672 Mpps
PoE Capability	Not Supported	PoE+
Redundancy Architecture	Dual-CPU independent management; Dual-engine forwarding design; Dual AC/DC redundant power supplies (1+1 backup); 2+2 fan redundancy (4 fans, any 2 can fail and system continues to operate)	Dual-CPU independent management; Dual-engine forwarding design; Dual AC/DC redundant power supplies (1+1 backup); 2+2 fan redundancy
High Availability Features	M-LAG support with sub-second ( < 1s ) switchover; < 50 ms switchover on uplink failure; VRRP; BFD; LLDP	M-LAG support with sub-second switchover; < 50 ms switchover on uplink failure; VRRP; BFD; LLDP
MAC Address Table	Up to 330,000 entries; Supports automatic learning, synchronization, aging; Static/dynamic/blackhole entries; Source MAC filtering; Port-based learning limits	Up to 330,000 entries; Supports automatic learning, synchronization, aging; Static/dynamic/blackhole entries; Source MAC filtering; Port-based learning limits
VXLAN Features	VXLAN distributed and centralized gateway; BGP-EVPN; VXLAN Layer 2 and 3 forwarding; NETCONF configuration; SDN-based automated wired deployment	VXLAN distributed and centralized gateway; BGP-EVPN; VXLAN Layer 2 and 3 forwarding; NETCONF configuration; SDN-based automated wired deployment
Interoperability	VBST (compatible with PVST/PVST+/RPVST); LNP (similar to DTP); VCMP (similar to VTP)	VBST (compatible with PVST/PVST+/RPVST); LNP (similar to DTP); VCMP (similar to VTP)
Stack Support	Not Supported (S5755-S48T4X4Y-HT and S5755-S48P4X4Y-HT do not support stack setup)	Not Supported
Dimensions (H x W x D)	43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)	43.6 mm x 442.0 mm x 420.0 mm
Typical Power Consumption	106 W (under typical conditions)	126 W (under typical conditions)
Power Supply Options	PAC180S12-CN (AC): 180W; Input: 100-240V AC, 50/60Hz or 240V DC PDC240S12-CN (DC): 240W; Input: ±48V to ±60V DC	PAC180S12-CN (AC) PDC240S12-CN (DC)
Fan Module	FAN-023A-B: Dimensions: 40x40x100.3 mm; Max power: 7.2W; Max speed: 18500 RPM; Airflow: exhausted from panel side	FAN-023A-B
Operating Temperature	-5°C to 45°C (at 0-1800m altitude); Derates at higher altitudes	-5°C to 45°C (at 0-1800m altitude); Derates at higher altitudes
