Huawei CloudEngine S5736-S24UM4XC – Product Documentation

Name: Huawei CloudEngine S5736-S24UM4XC - Refurbished & Tested - SunSpike
Brand: HUAWEI
SKU: S5736-S24UM4XC

Product Overview

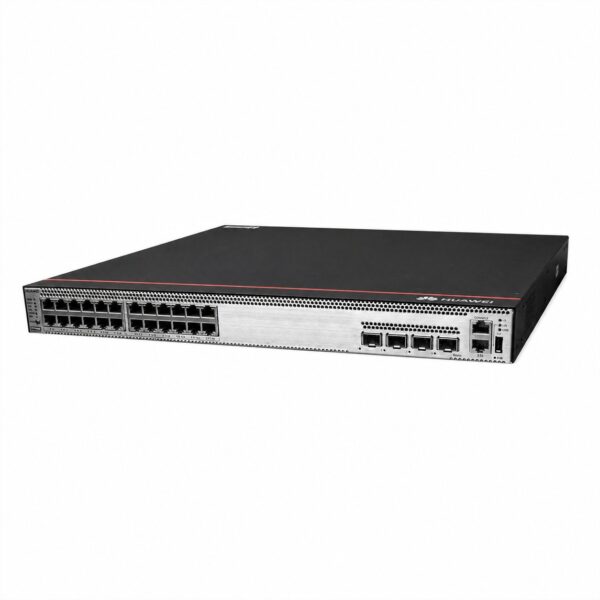

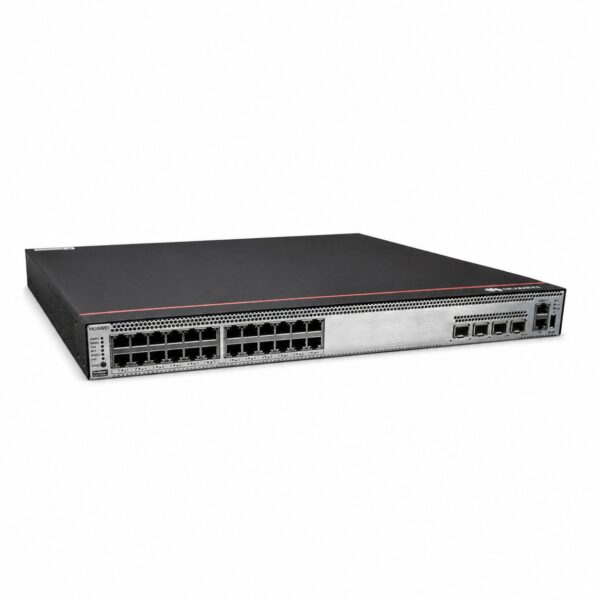

The Huawei CloudEngine S5736-S24UM4XC is a next-generation, full 10GE multi-rate Ethernet switch engineered for the Wi-Fi 6 era. As part of the CloudEngine S5736-S series, it is built on Huawei’s Versatile Routing Platform (VRP) and is designed to address the increasing bandwidth demands of modern enterprise campus networks, particularly those deploying high-speed wireless access points .

This model features 24 fixed multi-rate downlink ports that support speeds from 100M up to 10G, enabling a smooth transition from legacy 1G to high-speed 2.5G, 5G, and 10G connections through flexible Right-to-Use (RTU) licensing. It also includes four 10GE SFP+ uplink ports and one expansion slot for additional interface modules, offering extensive scalability . With robust Layer 3 routing capabilities, comprehensive security features, and support for up to 90W PoE++ per port to power next-generation devices, the S5736-S24UM4XC serves as a versatile solution suitable for campus aggregation/access layers and small-to-medium data center access .

Product Specifications

Category	Parameter	Specification
Model	Model Name	CloudEngine S5736-S24UM4XC
Performance	Switching Capacity	880 Gbit/s / 2.72 Tbit/s (device/system)
	Forwarding Performance	480 Mpps / 750 Mpps

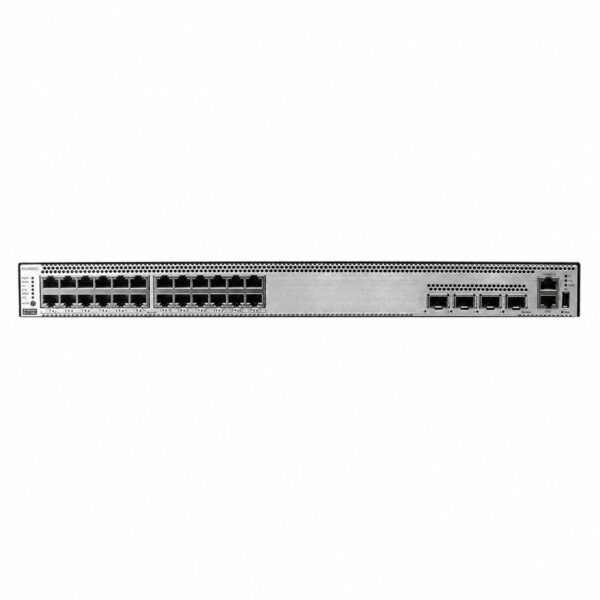

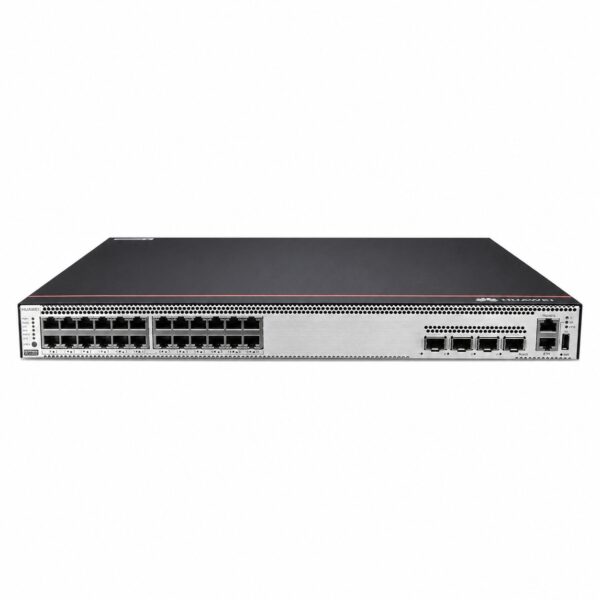

Ports & Slots	Fixed Ports	24 × 100M/1G/2.5G/5G/10G Base-T Ethernet ports
	Uplink Ports	4 × 10GE SFP+

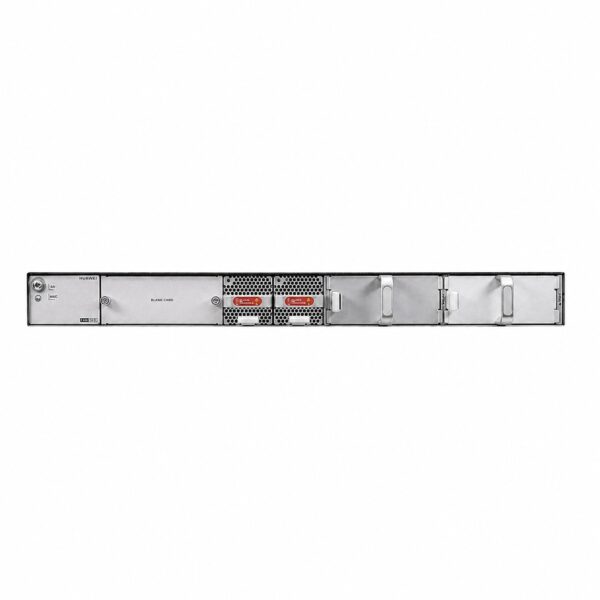

	Extended Slot	1 slot (supports 2×25GE SFP28, 8×10GE SFP+, or 4×40GE QSFP+ cards)
Power over Ethernet	PoE Capability	PoE++ support, up to 90W per port
Layer 2 Features	MAC Address Table	32,000 MAC entries
	VLAN Features	4,094 VLANs, Guest/ Voice VLAN, MUX VLAN, VLAN mapping (1:1 and N:1), VLAN assignment based on MAC/IP/Protocol/Port
Layer 3 Features	IP Routing	Static route, RIPv1/v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+, VRRP, VRRP6
Hardware	Dimensions (H×W×D)	43.6 mm × 442.0 mm × 420.0 mm (1U height)
	Chassis Weight (Empty)	Approx. 6.7 kg
	Chassis Weight (Fully Configured)	Approx. 9.7 kg

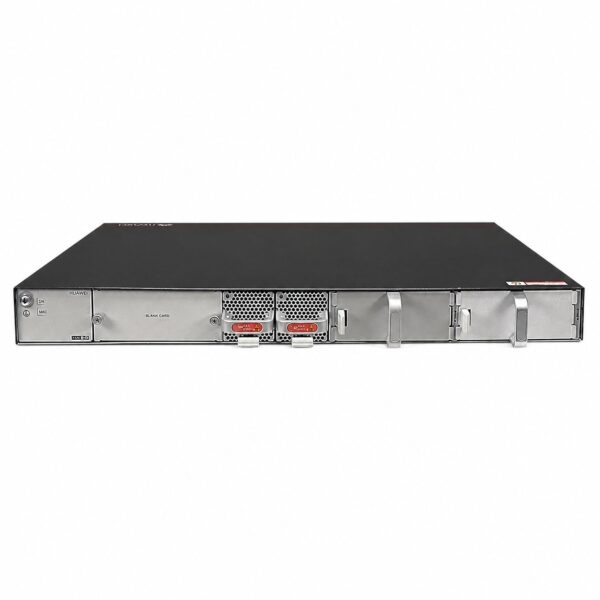

Power & Environmental	Power Supply Type	1000W AC PoE, 1+1 Redundancy
	Rated Voltage Range	AC: 100V to 240V, 50/60Hz; High-voltage DC: 240V
	Maximum Power Consumption (without PD)	176W
	Maximum Power Consumption (with PD)	Up to 1967W (PD: 1791W)
	Operating Temperature	-5°C to +45°C (Altitude: 0-1800m)
	Storage Temperature	-40°C to +70°C
	Relative Humidity	5% to 95% (non-condensing)
	Noise (Sound Power/Pressure)	70.1 dB(A) / 58.1 dB(A) at normal temperature
Security & Management	Security Features	802.1X, MAC authentication, Portal authentication, DoS attack prevention, DHCP Snooping, IP/MAC binding
	Management Features	iStack, SNMP v1/v2/v3, RMON, CLI, Web-based management, Netconf/YANG
