Huawei CloudEngine S5731-S48S4X-A – Product Documentation
Product Overview

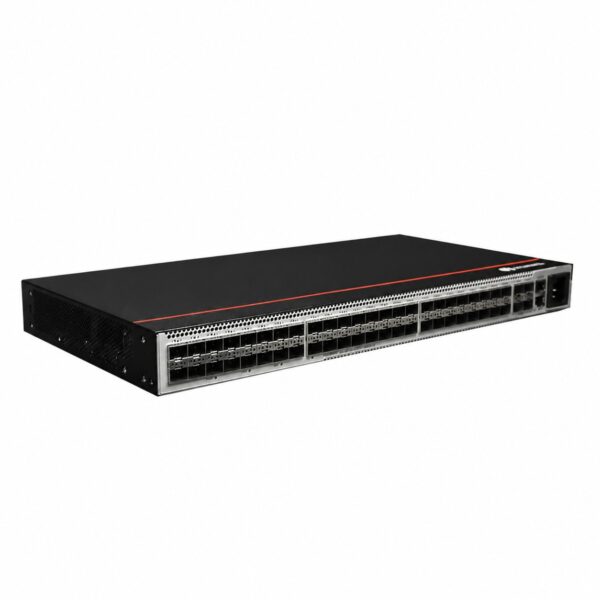

The Huawei CloudEngine S5731-S48S4X-A is a next-generation standard gigabit access switch that provides 48 Gigabit Ethernet SFP ports and 4 fixed 10GE SFP+ uplink ports. Built on Huawei’s unified Versatile Routing Platform (VRP), this switch delivers enhanced Layer 3 features, simplified operations and maintenance (O&M), Intelligent Stack (iStack) technology, flexible Ethernet networking, and mature IPv6 capabilities.

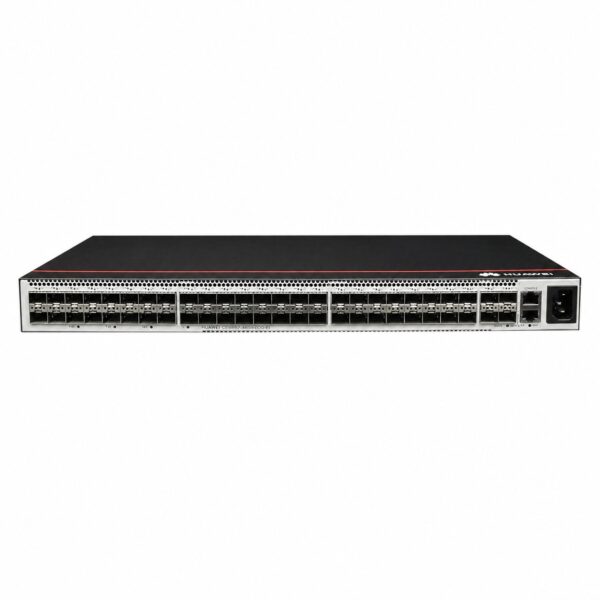

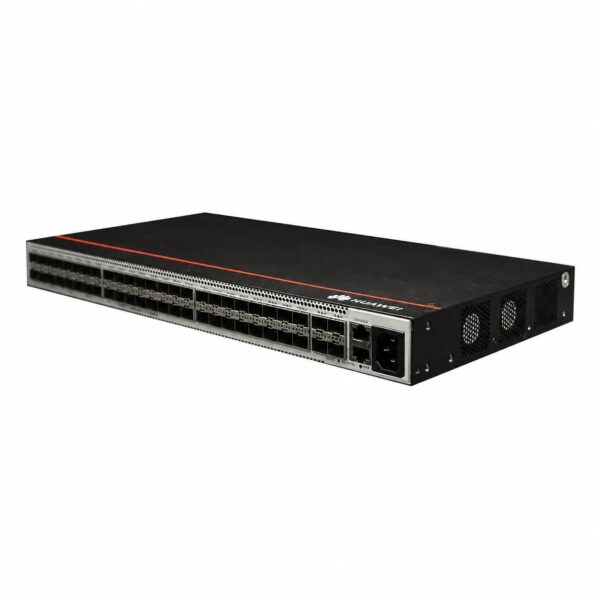

The switch features a front-access design with an integrated AC power supply, making it suitable for standard rack-mount deployment. It supports iStack, which virtualizes up to nine physical switches into a single logical switch, improving device reliability through redundancy backup and link aggregation while simplifying configuration and management.
Key capabilities include VXLAN-based network virtualization for automated service deployment, SVF (Super Virtual Fabric) for simplified network O&M with plug-and-play client support, and built-in security probes that integrate with the Huawei HiSec Insight system for network-wide collaborative security protection.
The CloudEngine S5731-S48S4X-A is widely deployed in enterprise campus access and aggregation networks, as well as data center access and metropolitan area network access scenarios.
Product Specifications
| Category | Specification |
|---|---|
| Model | S5731-S48S4X-A |
| Part Number | 98011801 |
| Description | 48 × GE SFP ports, 4 × 10GE SFP+ ports, AC power, front access |
| First Supported Version | V200R021C01 |

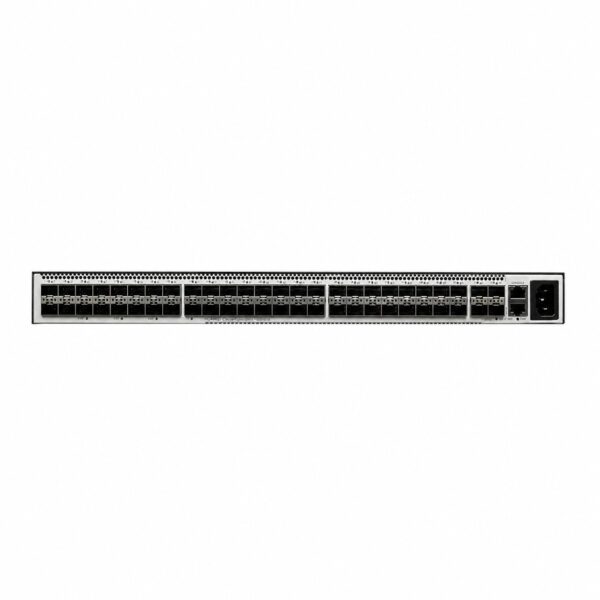

Ports & Interfaces
| Category | Specification |
|---|---|
| Downlink Ports | 48 × 100/1000BASE-X SFP ports |
| Uplink Ports | 4 × 10GE SFP+ ports |
| Console Port | 1 × RJ45 console port |
| Management Port | 1 × RJ45 ETH management port |
| PNP Button | 1 × PNP button (short press: reset; long press ≥6s: factory reset) |
| Ground Screw | 1 × grounding screw |
Note: In V200R023C00 and later versions, ports numbered from GE5 to GE48 can be configured to operate at 2.5 Gbit/s using the
port mode 2.5gecommand.
Performance
| Category | Specification |
|---|---|
| Forwarding Performance | 125 Mpps |
| Switching Capacity | 308 Gbps / 672 Gbps (device/system) |
| MAC Address Table | 64,000 entries |
| VLANs | 4,094 |
Power & Consumption
| Category | Specification |
|---|---|
| Power Supply | Built-in AC power supply |
| Rated Input Voltage | 100 V AC to 240 V AC, 50/60 Hz |
| Input Voltage Range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum Input Current | 3 A |
| Static Power Consumption | 47.28 W |
| Typical Power Consumption | 87.89 W |
| Maximum Power Consumption | 121.04 W |
| Typical Heat Dissipation | 299.89 BTU/hour |
| Maximum Heat Dissipation | 413.00 BTU/hour |
| Power Supply Surge Protection | 6 kV differential mode; 6 kV common mode |
Physical Specifications
| Category | Specification |
|---|---|
| Chassis Height | 1 U |
| Chassis Material | Metal |
| Dimensions (H × W × D) — Basic | 43.6 × 442.0 × 220.0 mm (1.72 × 17.40 × 8.66 in.) |
| Dimensions (H × W × D) — Maximum | 43.6 × 442.0 × 227.0 mm (1.72 × 17.40 × 8.94 in.) |
| Dimensions with Packaging (H × W × D) | 90.0 × 550.0 × 355.0 mm (3.54 × 21.65 × 13.98 in.) |
| Weight without Packaging | 3.49 kg (7.69 lb) |
| Weight with Packaging | 4.85 kg (10.69 lb) |
Environmental Specifications
| Category | Specification |
|---|---|
| Long-term Operating Temperature | -5°C to +45°C (23°F to 113°F) at 0–1800 m altitude |
| Short-term Operating Temperature | -5°C to +50°C (23°F to 122°F) at 0–1800 m altitude |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Long-term Operating Humidity | 5% to 95% RH, non-condensing |
| Long-term Operating Altitude | 0–5000 m (0–16404 ft.) |
| Storage Altitude | 0–5000 m (0–16404 ft.) |
| Noise (Acoustic Power) | 41.42 dB(A) |
| Noise (Acoustic Pressure) | 27.74 dB(A) |
| Airflow Direction | Air intake from left and front; air exhaust from right |
| Cooling | Fan-assisted with intelligent fan speed adjustment |
| MTBF | 31.39 years |
| Availability | > 0.99999 |
Software & Protocol Support
| Category | Specification |
|---|---|
| MAC Features | MAC address learning and aging; Static, dynamic, and blackhole MAC entries; Source MAC address filtering |
| VLAN Features | Guest VLAN, voice VLAN; GVRP; MUX VLAN; VLAN assignment based on MAC, protocol, IP subnet, policy, and port; 1:1 and N:1 VLAN mapping |
| SVF | Plug-and-play SVF client; Automatic software and patch loading; One-click service configuration delivery; Independent client operations |
| VXLAN | L2 and L3 gateways; Centralized and distributed gateways; BGP-EVPN; NETCONF configuration |
| Interoperability | VBST (compatible with PVST/PVST+/RPVST); LNP (similar to DTP); VCMP (similar to VTP) |
