Huawei S5700-48TP-SI-DC Switch – Product Documentation

Name: Huawei S5700-48TP-SI-DC Switch - SunSpike
SKU: S5700-48TP-SI-DC

Product Overview

The Huawei S5700-48TP-SI-DC is a gigabit Layer 3 Ethernet switch designed for enterprise campus networks and data center access deployments. It belongs to the S5700-SI series and is built on Huawei’s新一代 high-performance hardware architecture combined with the Versatile Routing Platform (VRP).

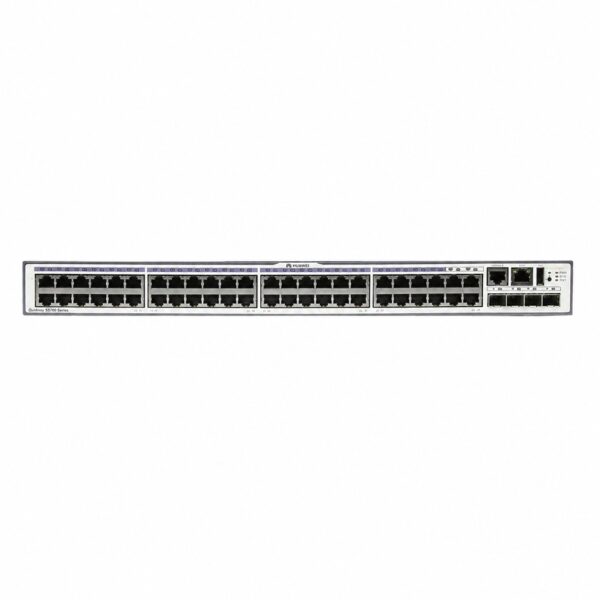

This switch offers 48 Ethernet 10/100/1000 ports, 4 of which are dual-purpose 10/100/1000 or SFP ports, providing flexible connectivity options for diverse network environments. With a switching capacity of 256 Gbps and a forwarding performance of 72 Mpps, the S5700-48TP-SI-DC delivers robust throughput for bandwidth-intensive applications.

The S5700-48TP-SI-DC supports extensive Layer 2 and Layer 3 features, including VLAN (up to 4K VLANs), QoS, multicast management, and comprehensive security mechanisms such as ACL, 802.1X authentication, and SSH v2.0. It also supports stacking, allowing network administrators to scale capacity and simplify management through a single logical device.

Designed with energy efficiency in mind, the switch incorporates intelligent fan control and advanced power management to reduce operational costs. The DC power input model (-48V to -60V) makes it suitable for telecommunications and data center environments where DC power distribution is preferred.

With its combination of high-density GE ports, comprehensive feature set, and robust reliability, the S5700-48TP-SI-DC is widely used as an access or aggregation switch in enterprise campus networks, as well as an access switch in data centers.

Technical Specifications

Category	Parameter	Specification
General	Model	S5700-48TP-SI-DC
	Part Number	02352357
	Product Type	Gigabit Ethernet Switch
	Application Layer	Layer 3
	Switching Method	Store-and-Forward
	Switch Type	Box-type / Non-modular
Performance	Switching Capacity	256 Gbps
	Forwarding Rate	72 Mpps
	MAC Address Table Size	16K
Ports	Total Ports	52
	Fixed Ports	44 × 10/100/1000BASE-T ports
	Combo Ports	4 × dual-purpose 10/100/1000BASE-T or 100/1000BASE-X SFP ports
	Console Port	1 × console port
	Management Port	1 × ETH management port
	USB Port	1 × USB port
Expansion	Stack Slots	1 × stack expansion slot
	Stack Ports	2 stack ports available on each stack card
	Stacking Support	Yes (stackable)
Memory	RAM	256 MB
	Flash	32 MB
Power	Power Supply Type	DC -48V
	Rated Voltage Range	-48 V DC to -60 V DC
	Maximum Voltage Range	-36 V DC to -72 V DC
	Maximum Power Consumption	64 W (100% throughput, full fan speed)
	RPS Support	Not supported
	PoE Support	Not supported
Physical	Dimensions (H × W × D)	43.6 × 442.0 × 420.0 mm (1.72 × 17.4 × 16.5 in.)
	Weight (Empty)	≤ 5 kg (11.02 lb)
	Weight (Fully Configured)	≤ 8.5 kg (18.74 lb)
Environment	Operating Temperature	0°C to 50°C (32°F to 122°F)
	Storage Temperature	-40°C to +70°C (-40°F to +158°F)
	Operating Humidity	5% to 95%, non-condensing
	Storage Humidity	5% to 95%, non-condensing
	Operating Altitude	0–2000 m (0–6562 ft.)
Standards & Compliance	Network Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1Q, 802.1d, 802.1X
	EMC Certification	Yes
	Safety Certification	Yes
	Manufacturing Certification	Yes
VLAN	VLAN Count	Up to 4K VLANs
	VLAN Types	Guest VLAN, Voice VLAN, MAC-based VLAN, Protocol-based VLAN, IP-subnet-based VLAN, Policy-based VLAN, Port-based VLAN
	VLAN Switching	1:1 and N:1 VLAN switching
QoS	Queue Support	8 queues per port
	Scheduling Algorithms	WRR, DRR, SP, WRR+SP, DRR+SP
	Traffic Policing	Dual-rate three-color CAR
	Priority Marking	802.1p and DSCP
	Packet Filtering	L2–L4 based on source/destination MAC, source/destination IP, port, protocol, VLAN
Multicast	IGMP Snooping	v1/v2/v3 with fast-leave
	Multicast VLAN	VLAN-based multicast forwarding and multicast multi-VLAN replication
	Multicast Load Balancing	Bundle port multicast load balancing
Management	Network Management	SNMP v1/v2/v3, RMON, WEB-based management, Telnet, CLI
	Cluster Management	HGMP
	Port Mirroring	Port mirroring and RSPAN (Remote SPAN)
	Virtual Cable Test	Supported
	MFF	Supported
	System Logging	System logs and hierarchical alarms
	GVRP	Supported
	MUX VLAN	Supported
Security	User Authentication	Hierarchical user management and password protection
	Attack Protection	DOS attack prevention, ARP attack prevention, ICMP attack prevention
	Port Security	Port isolation, port security, Sticky MAC
	MAC Security	Blackhole MAC addresses, MAC address learning limit
	802.1X Authentication	Supported with single-port max user limit
	AAA	RADIUS, TACACS+, NAC
	Secure Management	SSH v2.0, HTTPS
	CPU Protection	Supported
	Blacklist/Whitelist	Supported
	IP-MAC-Port-VLAN Binding	Supported
Reliability	MTBF	34 years
	MTTR	2 hours
	Availability	> 0.99999
	Service Port Surge Protection	Common mode: ±2 kV
	Power Supply Surge Protection	Differential mode: ±1 kV, Common mode: ±2 kV
	ERPS/G.8032	Supported (millisecond-level protection switching)
