Huawei S5700-48TP-PWR-SI – Product Information

Name: Huawei S5700-48TP-PWR-SI Switch - SunSpike
SKU: S5700-48TP-PWR-SI

Product Overview

The Huawei S5700-48TP-PWR-SI is a high-performance, fixed-configuration Gigabit Ethernet Layer 3 switch designed for enterprise campus networks, data center access, and high-density Gigabit-to-the-desktop deployments requiring Power over Ethernet (PoE) capabilities.

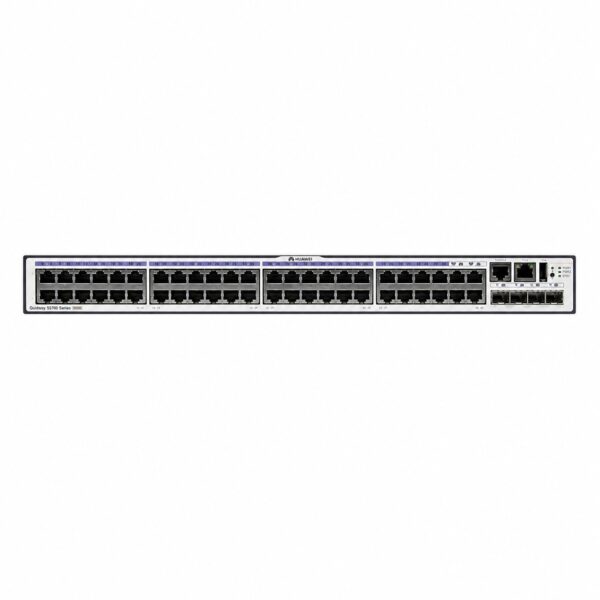

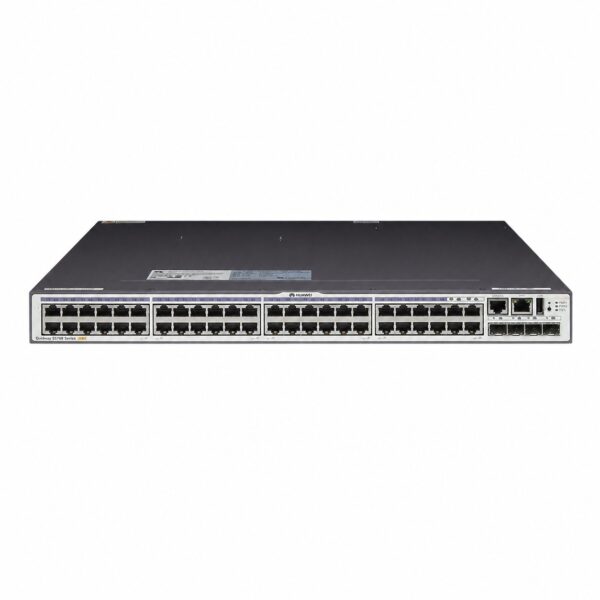

Built on Huawei’s Versatile Routing Platform (VRP) software and high-performance hardware, this switch delivers large-capacity, high-density Gigabit ports with flexible uplink options. It features 48 Gigabit Ethernet ports with 10/100/1000BASE-T connectivity, 44 of which are PoE+ enabled, plus 4 GE SFP combo ports for flexible fiber or copper uplink configurations.

The S5700-48TP-PWR-SI provides advanced Layer 2 and Layer 3 switching capabilities, comprehensive security features including ACLs and port security, and energy-efficient design. It supports stacking for simplified management and scalability through a dedicated stack expansion slot, and can be managed through Huawei’s eSight platform for streamlined network operations.

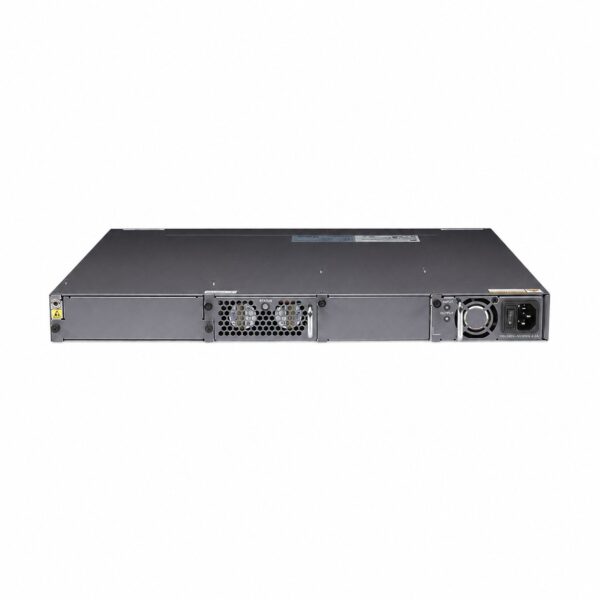

A key differentiator of this model is its robust PoE+ support, delivering substantial PoE power budget to power IP phones, wireless access points, surveillance cameras, and other PoE-enabled devices directly through the Ethernet ports. The switch features two hot-swappable power module slots, each capable of housing a 500 W or 250 W power module, providing flexibility and redundancy for mission-critical deployments. Please note that the S5700-48TP-PWR-SI is shipped without power modules; they must be purchased separately.

With its high port density, integrated PoE+ functionality, reliable performance for business-critical applications, and future-proof scalability, this switch is ideal for organizations seeking robust, feature-rich networking infrastructure. It is well-suited for campus network access/aggregation layers, IDC Gigabit access, and various enterprise connectivity scenarios where power delivery over Ethernet is essential.

Technical Specifications

Category	Specification
General
Model	S5700-48TP-PWR-SI
Product Type	Gigabit Ethernet Switch
Application Layer	Layer 3
Switching Mode	Store-and-Forward
Ports & Interfaces
Total Ports	52
PoE+ Ports	44 × 10/100/1000BASE-T PoE+ ports
Combo Ports	4 × combo ports (10/100/1000BASE-T (PoE+) + 100/1000BASE-X)
Console Port	1 × console port
Management Port	1 × ETH management port
USB Port	1 × USB port
Expansion Slot	1 × stack expansion slot
Performance
Switching Capacity	256 Gbit/s
Packet Forwarding Rate	72 Mpps
MAC Address Table	16K
Memory
RAM	256 MB
Flash Memory	32 MB
Power
Power Module Slots	2 hot-swappable power module slots
Power Modules Supported	500 W or 250 W AC power modules (sold separately)
Rated Voltage Range	100 V AC to 240 V AC, 50/60 Hz
Maximum Voltage Range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum Power Consumption (Operational)	< 907 W (PoE: up to 740 W)
PoE Standard	PoE+
Physical
Dimensions (W × D × H)	442.0 × 420.0 × 43.6 mm (17.4″ × 16.5″ × 1.72″)
Weight	Approx. 8.3 kg (without power modules)
Package Weight	Approx. 11.89 kg
Environmental
Operating Temperature	0°C to 50°C
Storage Temperature	-5°C to 55°C
Operating Humidity	5% to 95%, non-condensing
Storage Humidity	10% to 90%
Operating Altitude	0 to 5000 m
Network Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1X
VLAN	Supports 4K VLANs; Guest VLAN, Voice VLAN; MAC/IP/subnet/policy/port-based VLAN; 1:1 and N:1 VLAN switching
QoS	Port-based rate limiting; packet redirection; traffic policing; dual-rate three-color CAR; 8 queues per port; WRR, DRR, SP, WRR+SP, DRR+SP queue scheduling; 802.1p and DSCP priority re-marking; L2–L4 packet filtering
Security	User分级 management and password protection; DoS/ARP/ICMP attack prevention; IP-MAC-port-VLAN binding; port isolation; port security; Sticky MAC; MAC address learning limit; IEEE 802.1X authentication; AAA authentication (RADIUS, TACACS+, NAC); SSH V2.0; HTTPS; CPU protection; blacklist/whitelist
Network Management	Stacking support; MFF; Virtual Cable Test; port mirroring and RSPAN; Telnet; SNMPv1/v2/v3; RMON; Web-based management; cluster management (HGMP); system logs; hierarchical alarms; GVRP; MUX VLAN
Multicast	IGMP v1/v2/v3 snooping; fast leave; VLAN multicast forwarding; multicast multi-VLAN replication; multicast load balancing across bundled ports; controllable multicast; port-based multicast traffic statistics
IP Routing	Static routing; support for Layer 3 dynamic routing
Reliability	Ethernet OAM 802.3ah and 802.1ag; Enhanced Trunk; DLDP; LACP; STP/RSTP/MSTP; SmartLink; RRPP; ERPS (G.8032); SEP
