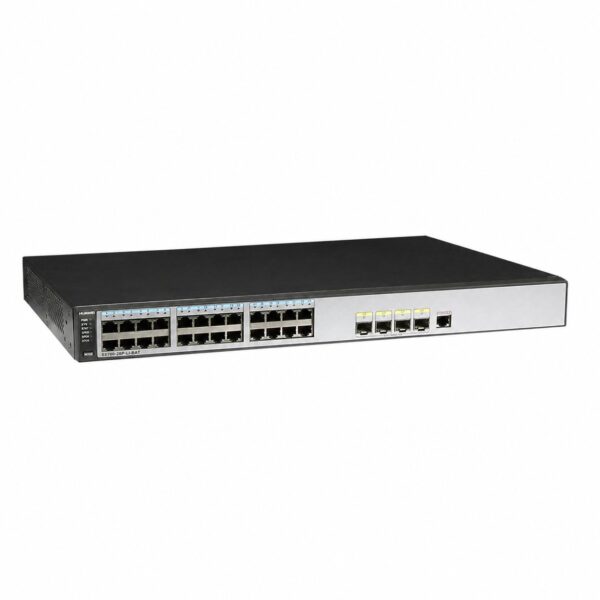

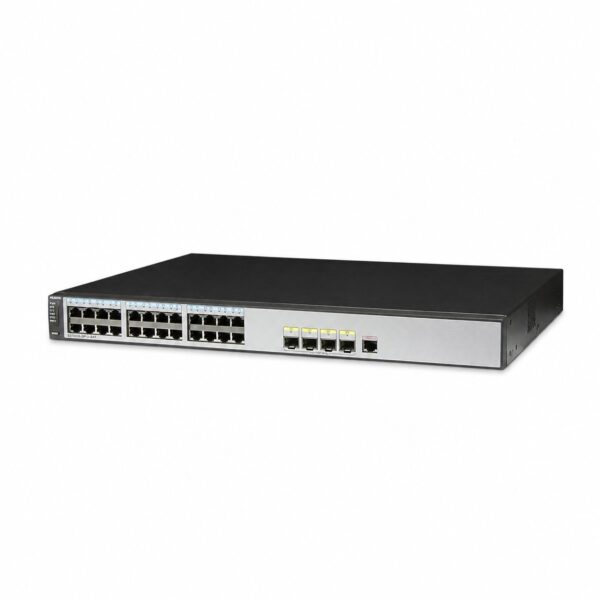

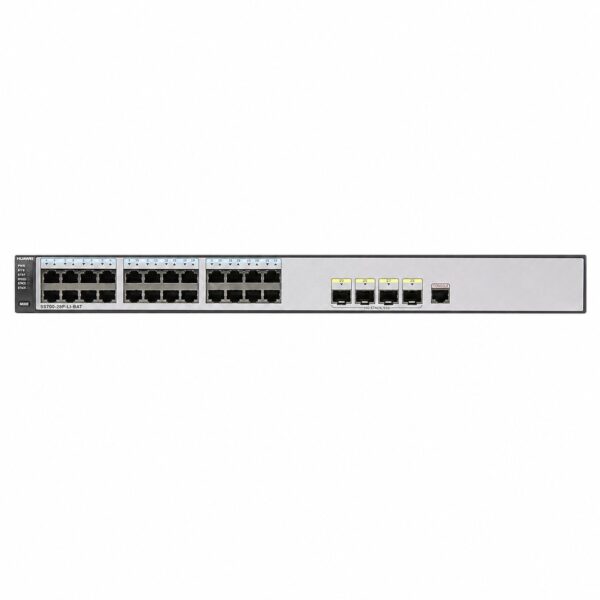

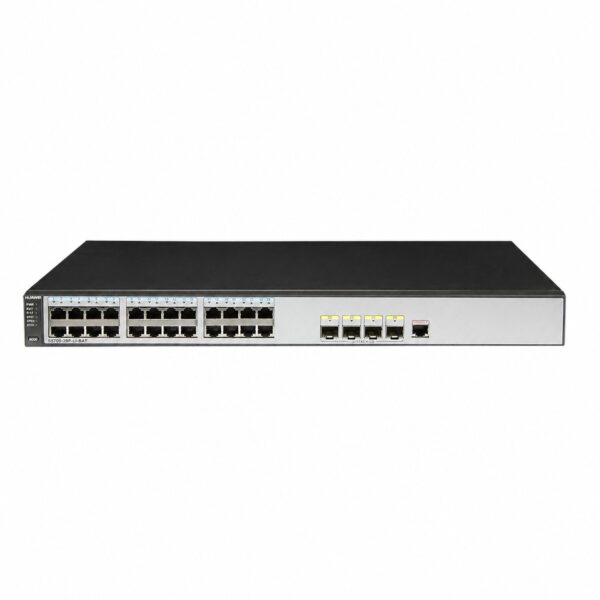

Huawei S5700-28P-LI-BAT-AC Switch – Product Documentation

Name: Huawei S5700-28P-LI-BAT-AC Switch - SunSpike
SKU: S5700-28P-LI-BAT-AC

Product Overview

The Huawei S5700-28P-LI-BAT-AC is a next-generation energy-saving Gigabit Ethernet switch from the S5700-LI series, designed for enterprise access layer deployments. Built on the high-performance Huawei Versatile Routing Platform (VRP), this switch delivers 24 × 10/100/1000BASE-T Ethernet ports and 4 × GE SFP ports, providing flexible Gigabit access with fiber uplink capabilities.

What distinguishes the S5700-28P-LI-BAT-AC from standard enterprise switches is its integrated battery backup system. The switch features a dedicated battery slot that supports optional BAT-4AHA or BAT-8AHA rechargeable lithium battery modules, as well as an external lead-acid battery via the PBB-12AHA charger module. In the event of a mains power failure, the battery automatically supplies power to ensure uninterrupted network services. When AC power is restored, the battery automatically switches to charging mode. This design is particularly valuable for distributed access layer deployments where deploying traditional Uninterruptible Power Supplies (UPS) is costly and space-consuming.

The switch also supports a 150 W AC or DC power module as a redundant power source, further enhancing power reliability. With a switching capacity of 256 Gbps and a forwarding performance of 42 Mpps, the S5700-28P-LI-BAT-AC delivers robust Layer 2 switching capabilities combined with comprehensive security, QoS, and management features. Its innovative energy-saving technologies—including Energy Efficient Ethernet (EEE), port power detection, dynamic CPU frequency adjustment, and device sleep mode—help reduce operational power consumption without compromising performance.

Technical Specifications

Category	Specification
Model	S5700-28P-LI-BAT-AC
Product Type	Gigabit Ethernet switch (Layer 2 managed)
Fixed Ports	24 × 10/100/1000BASE-T Ethernet ports
Uplink Ports	4 × 1000BASE-X SFP ports
Console Port	1 × Console port
Switching Capacity	256 Gbps
Forwarding Performance	42 Mpps
MAC Address Table	16K entries
Memory (RAM)	256 MB
Flash Memory	200 MB
VLAN Features	4K VLANs; Guest VLAN, Voice VLAN; GVRP; MUX VLAN; VLAN assignment based on MAC, protocol, IP subnet, policy, and port; 1:1 and N:1 VLAN Mapping
Reliability	RRPP ring topology and multi-instance; Smart Link tree topology and multi-instance (millisecond-level protection switchover); SEP; ERPS (G.8032); STP, RSTP, MSTP; BPDU protection, root protection, loop protection
IP Routing	Static routing
IPv6 Features	Neighbor Discovery (ND); Path MTU (PMTU); IPv6 ping, tracert, and Telnet; ACLs based on source/destination IPv6 address, Layer 4 ports, or protocol type; MLD v1/v2 snooping
Multicast	IGMP v1/v2/v3 snooping and fast leave; multicast forwarding in VLAN and multicast replication between VLANs; multicast load balancing among trunk ports; controllable multicast; port-based multicast traffic statistics
QoS/ACL	Rate limiting on ingress/egress; packet redirection; port-based traffic policing and two-rate three-color CAR; 8 queues per port; WRR, DRR, SP, WRR+SP, DRR+SP queue scheduling; 802.1p and DSCP priority re-marking; Layer 2–4 packet filtering
Security	User privilege management and password protection; DoS/ARP/ICMP attack defense; IP-MAC-interface-VLAN binding; port isolation, port security, sticky MAC; blackhole MAC entries; MAC address learning limit; 802.1x authentication; AAA/RADIUS/HWTACACS/NAC authentication; SSH v2.0; HTTPS; CPU defense; blacklist/whitelist
DHCP	DHCP relay, DHCP server, DHCP snooping, DHCP security
Management	iStack (intelligent stacking); Virtual Cable Test; Telnet; SNMP v1/v2/v3; RMON; eSight; WEB management; HTTPS; LLDP/LLDP-MED; system logs; hierarchical alarms; 802.3az Energy Efficient Ethernet (EEE); Dying Gasp; device sleep mode
SVF	Super Virtual Fabric – works as an SVF client with plug-and-play zero configuration
Power Supply	Fixed AC power supply
Rated Voltage Range	100 V AC to 240 V AC, 50/60 Hz
Maximum Voltage Range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum Power Consumption	< 23 W
Battery Slot	1 × battery slot supporting BAT-4AHA, BAT-8AHA rechargeable lithium batteries, or PBB-12AHA lead-acid battery charger module (external battery)
Redundant Power Module	Optional 150 W AC or DC power module
Lightning Protection (Service Interface)	6 kV
Heat Dissipation	Built-in fan for forced air cooling (left-to-right airflow)
Noise (Normal Temperature, 27°C)	< 43.2 dB(A)
Operating Temperature	0°C to 45°C (32°F to 113°F) at 0–1800 m altitude
Operating Humidity	5% to 95% RH, noncondensing
Operating Altitude	0–5000 m (0–16404 ft.) with AC power modules or battery modules
Dimensions (W × D × H)	442 × 310 × 43.6 mm (17.4 × 12.2 × 1.72 in)
Weight (with packaging)	3.4 kg (7.5 lb)
