Huawei S3700-52P-EI-AC Enterprise Switch – Product Documentation

Product Overview

The Huawei S3700-52P-EI-AC is a next-generation Layer 3 Fast Ethernet switch designed for enterprise networks. Built on Huawei’s Versatile Routing Platform (VRP) software and新一代高性能硬件, this switch delivers resilient 100 Mbit/s Fast Ethernet Layer 3 switching for large data centers and serves as an ideal core switching solution for small to medium-sized enterprise campus IT environments.

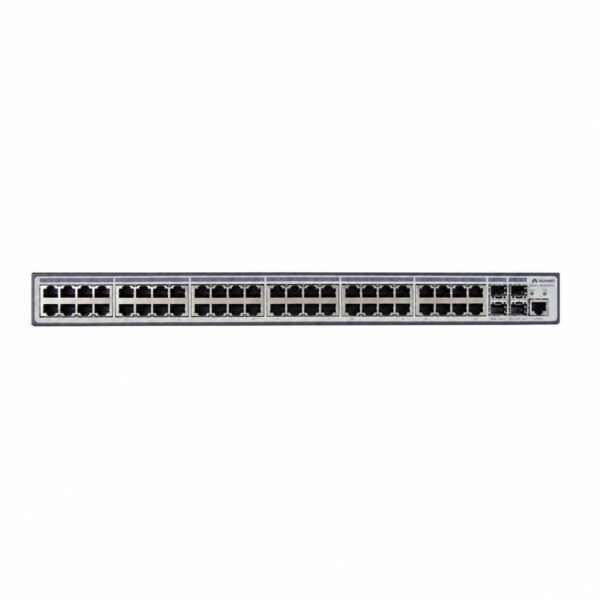

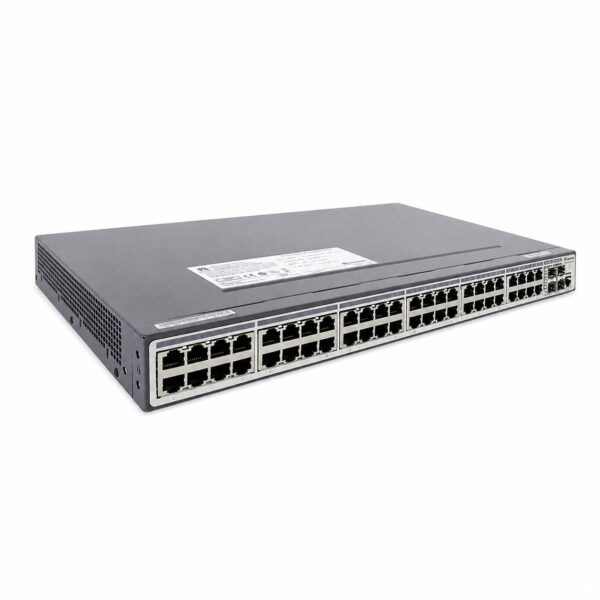

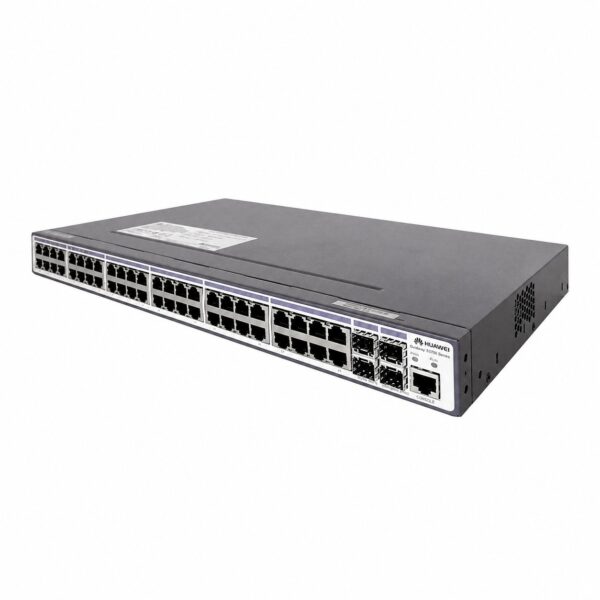

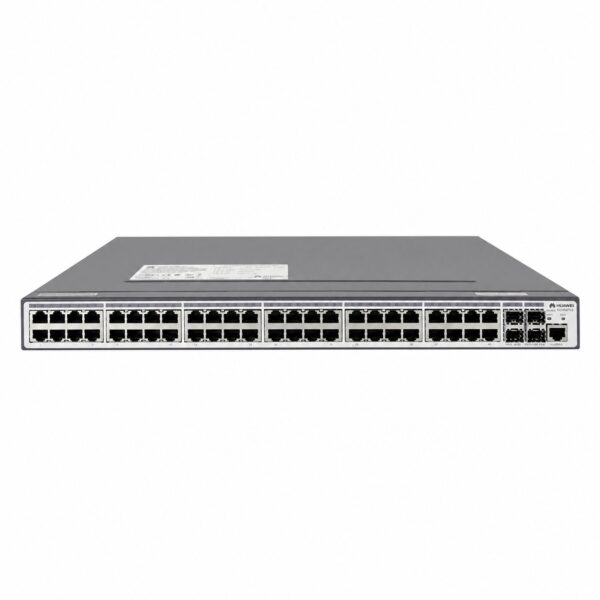

The S3700-52P-EI-AC is a 1U rack-mountable box-form device, available in the Enhanced Edition (EI) which supports complex routing protocols and rich service features. It provides 48× 10/100Base-TX downlink ports along with 4 Gigabit Ethernet uplink interfaces. With a switching capacity of 64 Gbit/s and a forwarding performance of 13.2 Mpps, the switch delivers high-performance data forwarding.

The switch incorporates advanced technologies including stackable architecture, virtual router redundancy, and rapid ring network protection to enhance network robustness. It offers comprehensive VLAN deployment capabilities, rich routing functionality, and IPv6 smooth upgrade support, making it a future-ready solution for enterprise network evolution. The device also features intelligent heat dissipation and an integrated AC power module.

Product Specifications

Category	Parameter
General
Model	S3700-52P-EI-AC
Product Type	Fast Ethernet Switch
Application Layer	Layer 3
Transmission Rate	10/100 Mbps
Switching Method	Store-and-Forward
Performance
Switching Capacity / Backplane Bandwidth	64 Gbit/s (64 Gbps)
Forwarding Performance	13.2 Mpps
MAC Address Table Size	16K
Ports
Port Structure	Non-modular
Total Port Count	52 ports
Downlink Ports	48 × 10/100Base-TX Ethernet ports
Uplink Ports	2 × 100/1000Base-X SFP ports + 2 × 1000Base-X SFP ports
Transmission Mode	Full-duplex / Half-duplex auto-negotiation
Network Standards
Supported Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1X
VLAN
VLAN Support	Up to 4K VLANs
VLAN Features	Guest VLAN, Voice VLAN, Super VLAN
VLAN Classification	MAC-based / Protocol-based / IP-subnet-based VLAN
VLAN Advanced Features	QinQ, Flexible QinQ, 1:1 VLAN Swap, N:1 VLAN Swap
QoS
Traffic Policing	Port-based rate limiting; Dual-speed three-color CAR
Priority Queues	8 priority queues per port
Queue Scheduling Algorithms	WRR, DRR, SP, WRR+SP, DRR+SP
Priority Re-marking	802.1p and DSCP priority re-marking
Packet Filtering	L2–L4 packet filtering based on source/destination MAC, source/destination IP, port, protocol, VLAN
Other QoS Features	Queue-based rate limiting; Port shaping
Multicast
Multicast Groups	Supports 1K multicast groups
IGMP Protocols	IGMP v1/v2/v3 Snooping; Fast leave mechanism
Multicast VLAN	Multicast VLAN and cross-VLAN multicast replication
Multicast Routing Protocols	IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM
Other Multicast Features	Port-based multicast load balancing; Controllable multicast; Port-based multicast traffic statistics
Network Management
Management Protocols	MFF, Telnet, SNMP v1/v2/v3, RMON, GVRP
Management Interfaces	WEB management; iManager NMS
Remote Maintenance	Virtual Cable Test; Ethernet OAM
Port Mirroring	Port Mirroring; RSPAN (Remote Switched Port Analyzer)
Other Management Features	Auto-configuration; HGMP cluster management; SSH V2
System Logging	System log; Hierarchical alarms
Security
User Authentication	User hierarchical management and password protection
Attack Protection	DoS attack prevention; ARP attack prevention; ICMP attack prevention
Port Security	Port isolation; Port security; Sticky MAC
MAC Security	Blackhole MAC addresses; MAC address learning limit
Binding & Filtering	IP + MAC + Port + VLAN binding
802.1X Authentication	IEEE 802.1X authentication; Maximum users per port limitation
AAA Authentication	AAA; RADIUS; HWTACACS+; NAC
Secure Management	SSH V2.0
Other Security Features	CPU protection; Blacklist & Whitelist
Stacking
Stacking Support	Supported
Stacking Connection	Service port connection
Physical
Form Factor	1U rack-mountable box device

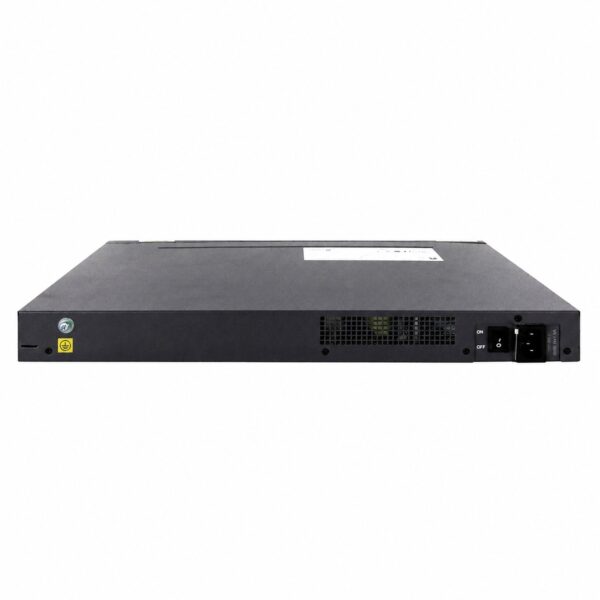

Power Supply	AC 100–240V
Maximum Power Consumption	< 38 W
Heat Dissipation	Intelligent heat dissipation
Installation Modes	Rack mounting; Desk mounting
Dimensions (W × D × H)	442 × 220 × 43.6 mm (44.2 cm × 22 cm × 4.36 cm)
Weight	4.1 kg
Operating Temperature	0°C to 50°C
Operating Humidity	10% to 90% (non-condensing)
Storage Temperature	–5°C to 55°C
Storage Humidity	10% to 90% (non-condensing)
