Huawei S2700-26TP-PWR-EI-AC Product Documentation

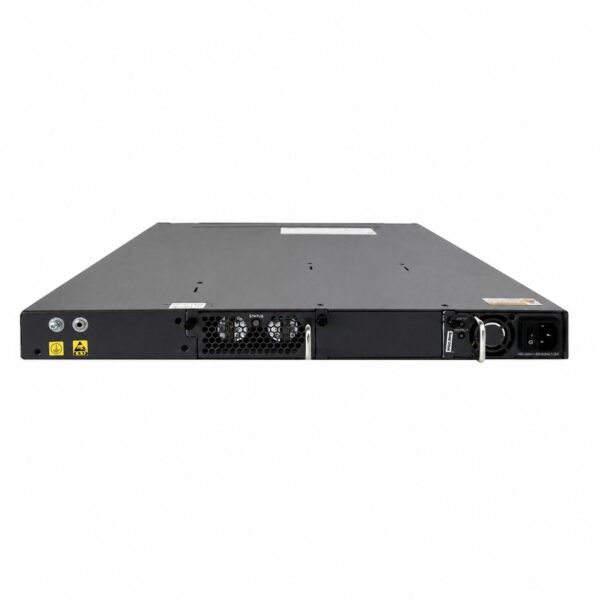

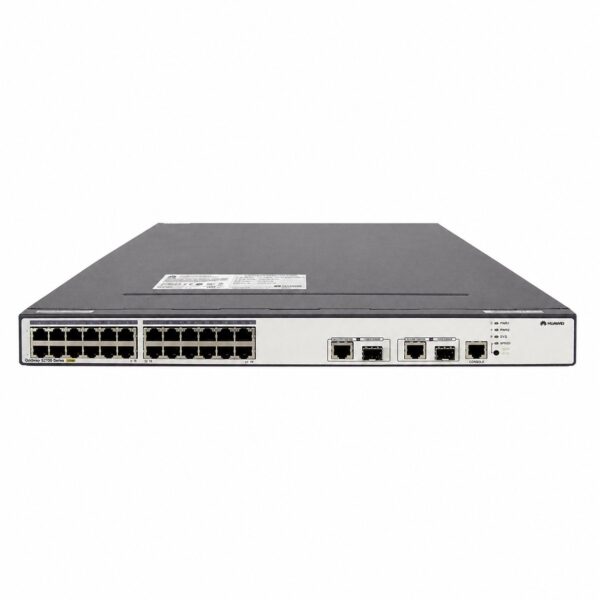

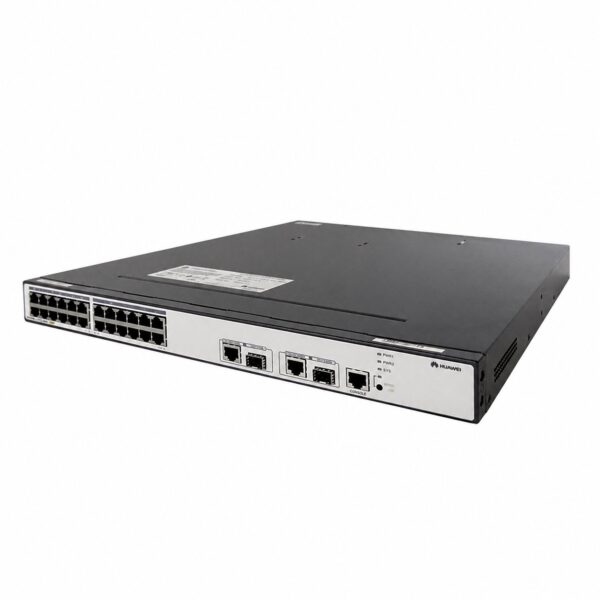

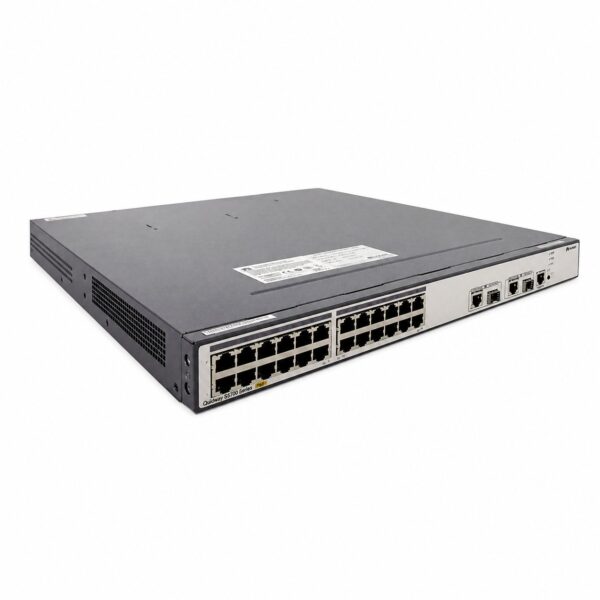

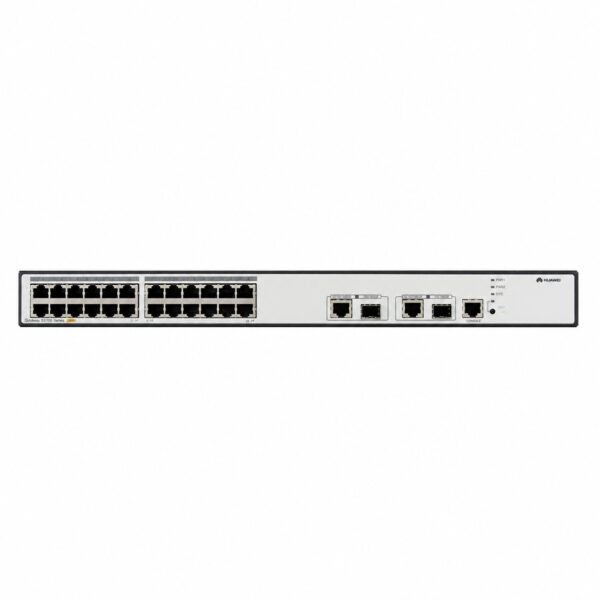

Name: Huawei S2700-26TP-PWR-EI-AC Switch - SunSpike
SKU: S2700-26TP-PWR-EI-AC

Product Overview

The Huawei S2700-26TP-PWR-EI-AC is a next-generation energy-saving Layer 2 Fast Ethernet intelligent switch from Huawei’s S2700-EI series. Designed for small to medium-sized enterprises, branch offices, and smart campus networks, this switch delivers reliable switching performance with integrated Power over Ethernet (PoE+) capabilities.

The switch features 24 PoE-enabled 10/100Base-TX Ethernet ports and 2 Gigabit combo uplink ports (RJ45/SFP). Built with an integrated AC power module, it supports IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) standards, providing up to 30W of power per port for devices such as IP phones, wireless access points, and surveillance cameras.

Leveraging Huawei’s Versatile Routing Platform (VRP) software, the S2700-26TP-PWR-EI-AC offers enhanced Layer 2 switching capabilities, flexible VLAN deployment, comprehensive security policies, advanced QoS features, and intelligent PoE power management. The switch supports a switching capacity of 32 Gbps and a forwarding performance of 6.6 Mpps.

With its compact 1U rack-mountable form factor, energy-saving technologies, and robust feature set, the S2700-26TP-PWR-EI-AC provides an ideal solution for converged data and power transmission in modern enterprise network environments.

Technical Specifications

Category	Specification
Model	S2700-26TP-PWR-EI-AC
Product Type	Layer 2 Fast Ethernet PoE+ intelligent switch
Switching Capacity	32 Gbps
Forwarding Performance	6.6 Mpps
MAC Address Table	8K entries
Fixed Ports	24 × 10/100Base-TX Ethernet ports (PoE+)
Uplink Ports	2 × dual-purpose 10/100/1000 or SFP (Combo GE RJ45/SFP)
Port Structure	Non-modular
Transmission Mode	Full-duplex / Half-duplex auto-negotiation
PoE Standard	IEEE 802.3af (PoE) / IEEE 802.3at (PoE+)
PoE Power per Port	Up to 30W (IEEE 802.3at)
PoE Power Budget	Max. 370W (with AC power input)
Total Power Consumption	Max. 868W; PoE output power: 740W
Power Supply	AC 100–240V, 50/60Hz
Power Slots	2 (hot-swappable AC/DC power supplies)
VLAN Features	Supports IEEE 802.1Q; up to 4K active VLANs; port-based VLAN; MAC address-based VLAN; basic QinQ
QoS	Port-based rate limiting and flow-based rate limiting; 4 priority queues per port; 802.1p priority mapping; SP, WRR, and SP+WRR algorithms
IPv4 Routing	Static routing
IPv6 Features	IPv6 protocol support; MLD v1/v2 snooping; static IPv6 routes
Multicast	IGMP v1/v2/v3 snooping; MVLAN; controllable multicast; port-based multicast rate limiting
Reliability	STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s), RRPP topology and RRPP multi-instance
Security & Access	802.1x authentication; AAA, RADIUS, TACACS+ authentication; DHCP snooping; IP Source Guard; port isolation; sticky MAC; MAC address filtering; storm suppression; CPU defense
Network Management	Stacking support; automatic configuration; CLI; Telnet; SNMP v1/v2/v3; RMON; HGMP V2 cluster management; SSH v2; Web management; GVRP
Surge Protection	Service ports: 7kV (non-PoE) / 1kV (PoE ports)
Operating Temperature	0°C to 50°C (long-term); –5°C to +50°C
Storage Temperature	–5°C to 55°C
Operating Humidity	10% to 90% (non-condensing)
Storage Humidity	10% to 90% (non-condensing)
Dimensions (W×D×H)	442 × 420 × 43.6 mm (1U rack-mountable)
Weight	<4 kg (excluding power module)
Network Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1Q, 802.1d, 802.1X
