Huawei S2700-9TP-PWR-EI-AC Switch – Product Documentation

Name: Huawei S2700-9TP-PWR-EI-AC Switch - SunSpike
SKU: S2700-9TP-PWR-EI-AC

Product Overview

The Huawei S2700-9TP-PWR-EI-AC is a Layer 2 smart managed PoE switch designed for enterprise access network deployments. It belongs to Huawei’s S2700 series of energy-efficient Ethernet access switches, built on Huawei’s VRP (Versatile Routing Platform) software platform.

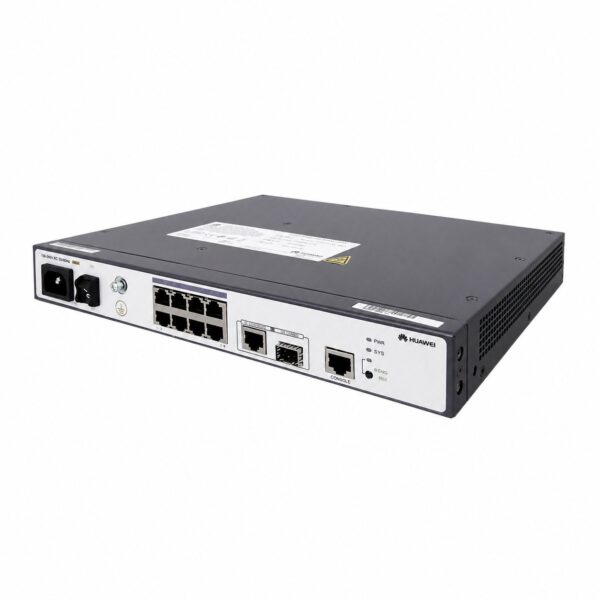

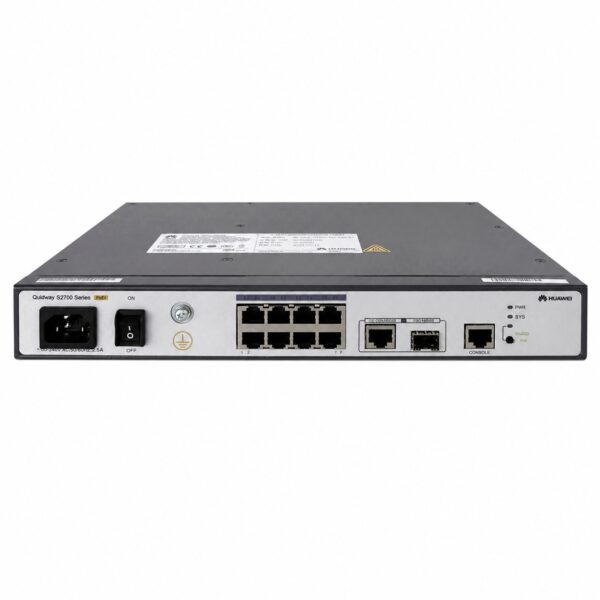

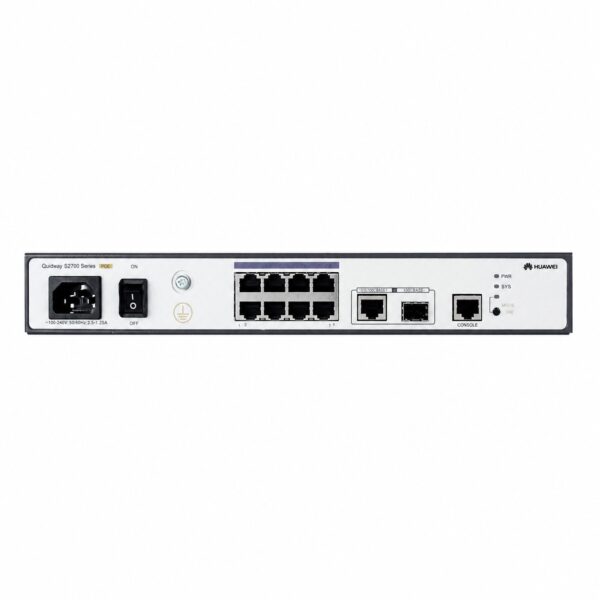

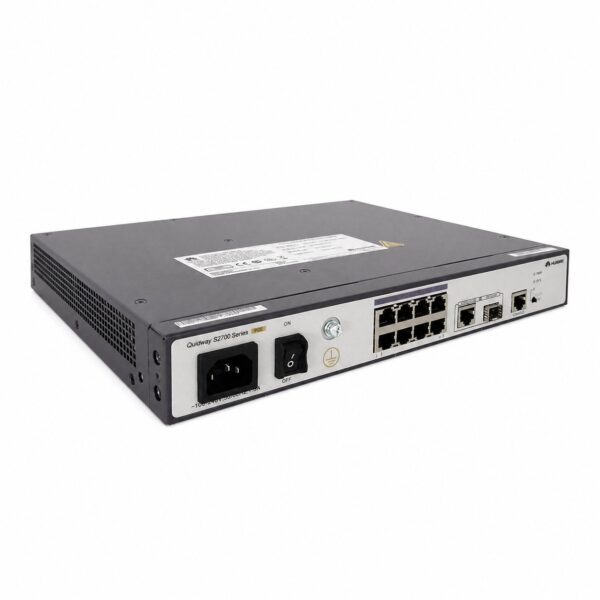

This switch features eight 10/100BASE-TX PoE+ ports and one Gigabit combo port (10/100/1000BASE-T electrical + 100/1000BASE-X optical SFP). The combo port provides deployment flexibility, allowing the use of either copper or fiber uplink connectivity.

The built-in AC power module delivers up to 124W of PoE power output, enabling the switch to provide full PoE power to all eight ports simultaneously. With a switching capacity of 32 Gbps and a forwarding rate of 2.7 Mpps, the S2700-9TP-PWR-EI-AC is well-suited for small to medium-sized enterprise networks requiring both data connectivity and Power over Ethernet capabilities.

The switch supports comprehensive security features including 802.1X authentication, dynamic ARP inspection, IP Source Guard, and AAA authentication via RADIUS and HWTACACS+. Advanced QoS capabilities include port-based and flow-based rate limiting, multiple queue scheduling algorithms (SP, WRR, SP+WRR), and traffic classification based on L2/L3/L4 headers. Management options include CLI, Telnet, SNMP v1/v2/v3, RMON, and web-based management.

Technical Specifications

Category	Parameter	Specification
General	Product Type	Smart Switch, PoE Switch
	Application Layer	Layer 2
	Transmission Rate	10/100 Mbps
	Switching Mode	Store-and-Forward
	Switching Capacity	32 Gbps
	Forwarding Performance	2.7 Mpps
	MAC Address Table	8K entries
Ports	Port Structure	Non-modular
	Fixed Ports	8 × 10/100BASE-TX PoE+ ports
	Uplink Ports	1 × Combo port (10/100/1000BASE-T electrical + 100/1000BASE-X optical SFP)
	Console Port	1 × Console port
	Transmission Mode	Full-duplex / Half-duplex auto-negotiation
Standards	Networking Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1Q, 802.1d, 802.1X
PoE	PoE Standard	PoE+
	Total PoE Power Budget	124 W
	Maximum System Power	154 W
Power	Power Supply	AC 100–240 V, 50/60 Hz
Physical	Dimensions (W×D×H)	320 × 220 × 43.6 mm (12.6 × 8.66 × 1.72 in)
	Weight	< 2.5 kg (5.51 lbs)
Environment	Operating Temperature	0°C to 50°C (32°F to 122°F)
	Operating Humidity	10% – 90% (non-condensing)
	Storage Temperature	-5°C to 55°C (23°F to 131°F)
	Storage Humidity	10% – 90% (non-condensing)
VLAN	VLAN Support	IEEE 802.1Q VLAN, up to 4K VLANs
	VLAN Types	Port-based VLAN, MAC-based VLAN, Basic QinQ
QoS	Queue Scheduling	SP, WRR, SP+WRR
	Rate Limiting	Port-based and flow-based rate limiting
	Traffic Classification	Based on source/destination MAC, source/destination IP, Layer 4 ports, protocol type, VLAN, Ethernet frame protocol, CoS
Security	Authentication	802.1X, AAA (RADIUS, HWTACACS+, NAC)
	Security Features	Dynamic ARP inspection, IP Source Guard, IP+MAC+port+VLAN binding, port isolation, port security, Sticky MAC
	Storm Control	Multicast, broadcast, and unknown unicast suppression
	CPU Protection	Supported
Management	Management Methods	CLI, Telnet, SNMP v1/v2/v3, RMON, Web-based management
	Stacking	Supported
	Auto-configuration	Supported
	Cluster Management	HGMP V2
	SSH	SSH V2
Multicast	IGMP Snooping	IGMP v1/v2/v3 Snooping
	Multicast Features	Port-based multicast load balancing, multicast rate limiting and traffic statistics
Mirroring	Port Mirroring	1:1 or N:1 port mirroring
