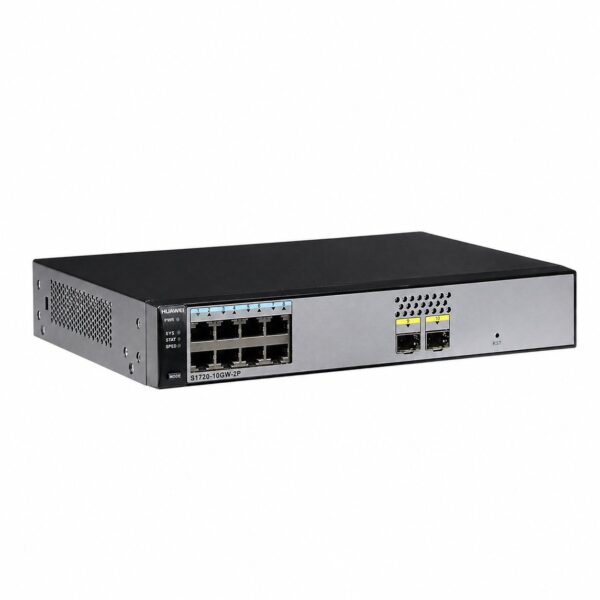

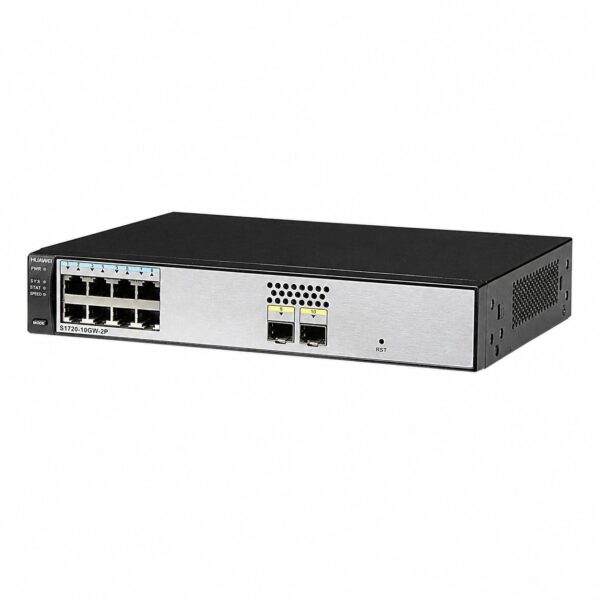

Name: Huawei S1720-10GW-2P-AC Switch - SunSpike
SKU: S1720-10GW-2P-AC

Product Overview

The Huawei S1720-10GW-2P-AC is a web-managed Gigabit Ethernet access switch from the Huawei S1700 series enterprise switch family. The S1700 series is deployed at the access layer of enterprise networks to deliver cost-effective packet switching capability, multi-service access capabilities, excellent extensibility, Quality of Service (QoS) guarantee, powerful multicast replication, and carrier-class security, and can be used to build ring topologies of high reliability. The S1720-10GW-2P-AC is applicable to various scenarios, for example, Gigabit Ethernet access to enterprise networks and Gigabit-to-desktop, building future-oriented IT networks for enterprises.

The switch offers simple installation and maintenance procedures along with rich service features, helping users build secure, reliable, and high-performance networks. It is particularly well-suited for small to medium-sized businesses, Internet cafes, hotels, schools, and other Ethernet access scenarios.

Complete Technical Specifications

Parameter Category	Parameter	Specification / Value
General	Product Model	S1720-10GW-2P-AC
	Product Family	S1700 Series Enterprise Access Switch
	Management Type	Web‑managed (browser‑based)
	Switching Capacity	68 Gbps
	Forwarding Performance	15 Mpps
	MAC Address Table	16K entries
	MTBF	23.8 years
	MTTR	2 hours
	Energy Efficient Ethernet (EEE)	Supported
Ports	Downlink Ports	8 × 10/100/1000BASE‑T Ethernet ports
	Uplink Ports	2 × Gigabit SFP (1000BASE‑X) ports
	Total Ports	10 ports
Physical	Dimensions (W × D × H)	250.0 × 180.0 × 43.6 mm
	Chassis Height	1U
	Weight (including packaging)	1.3 kg
	Heat Dissipation	Fan‑free, natural convection
Electrical	Rated Input Voltage	100 – 240 V AC, 50/60 Hz
	Maximum Input Voltage Range	90 – 264 V AC, 47 – 63 Hz
	Maximum Power Consumption	11.86 W
	Typical Power Consumption	10.2 W
Environmental	Operating Temperature	0°C to 45°C
	Storage Temperature	-40°C to 70°C
	Operating Humidity (non‑condensing)	5% to 95%
Surge Protection	Service Port Lightning Protection	±10 kV
	Power Port Lightning Protection	Differential mode ±6 kV, Common mode ±6 kV

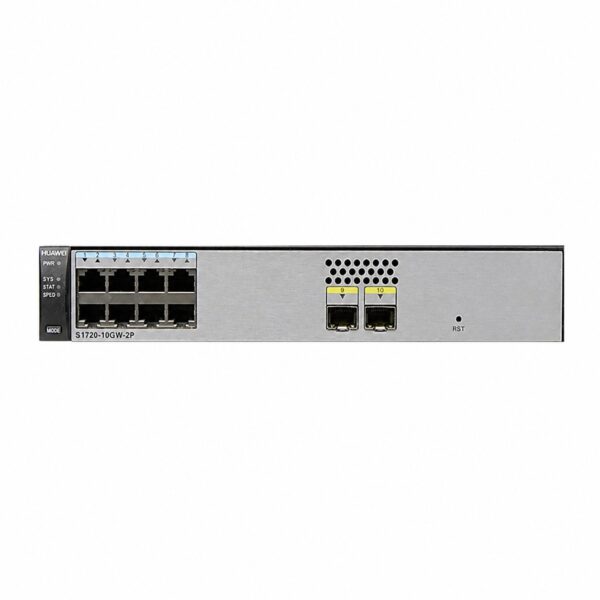

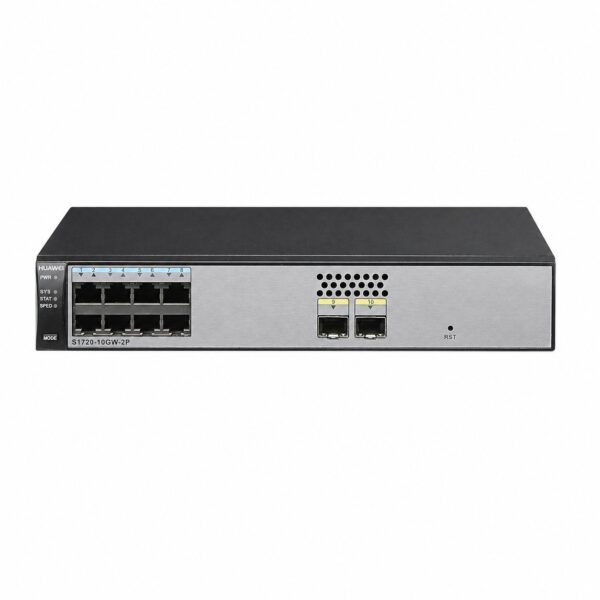

Front Panel	Mode Switching Button	Cycles indicator display modes
	Reset Button	Reset switch / restore factory settings

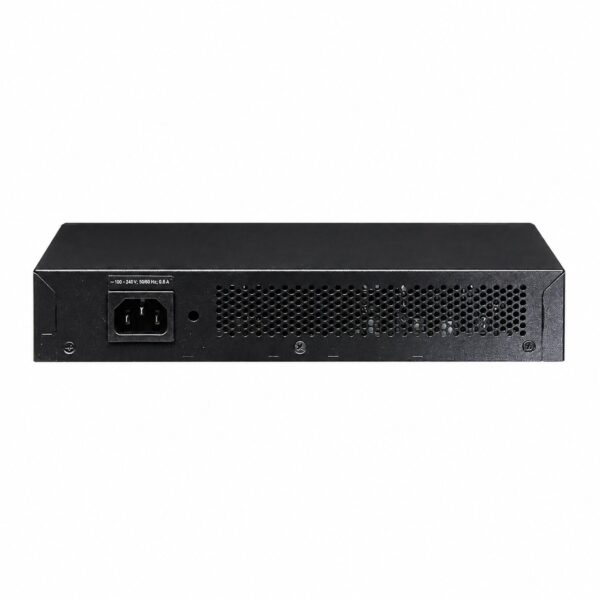

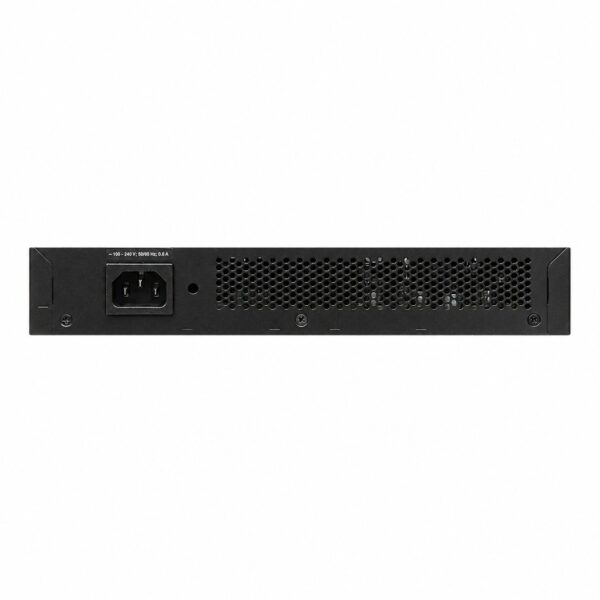

Rear Panel	AC Power Socket	Standard AC power socket
	Power Cable Locking Strap Jack	Reserved (strap not included)
LED Indicators	Indicator Modes	Speed, Link/Activity (controlled by mode button)
Feature Support	VLANs	4K VLANs; VLAN assignment based on access, trunk, and hybrid ports; management VLAN; voice VLAN
	QoS	PQ and WRR; eight queues on each port; queue scheduling based on 802.1p or DSCP priorities
	STP	STP (IEEE 802.1d), RSTP (IEEE 802.1w), MSTP (IEEE 802.1s)
	Multicast	IGMP snooping; maximum 1K multicast groups; fast leave
	Routing	IPv4 and IPv6 static routing
	Link Aggregation	64 Link Aggregation Groups (LAGs); maximum 8 ports per LAG; static LACP
	Port Mirroring	Port‑based bi‑directional flow mirroring
	Bandwidth Control	Rate limiting (ingress/egress); granularity 64 kbit/s
	Broadcast Storm Suppression	Interface‑rate based; alarm on traffic threshold
	Security Features	MAC‑based packet filtering, MAC authentication, port‑based 802.1X, RADIUS, Portal authentication, port isolation, storm suppression, DHCP snooping
	Stacking	Not supported
	Redundant Power Supply (RPS)	Not supported
Device Management	Management Interface	Web system network management
	Additional Management	DHCP client, one‑key restoration
	Upgrade Option	Web‑managed model can be upgraded to fully‑managed model with license purchase
Device Maintenance	Maintenance Tools	System log, Ping, Virtual Cable Test (VCT), Link Layer Discovery Protocol (LLDP)
Ordering	Product Code (PN)	98010574
	Warranty	Up to 36 months
