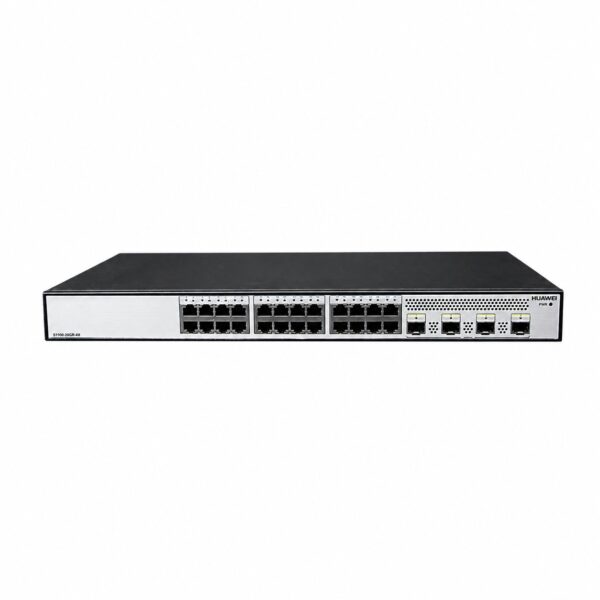

Huawei S1700-28GR-4X-AC Switch – Full Product Specifications

Name: Huawei S1700-28GR-4X-AC Switch - SunSpike
SKU: S1700-28GR-4X-AC

Product Overview

The Huawei S1700-28GR-4X-AC is a next-generation energy-saving Gigabit Ethernet access switch designed for small- and medium-size enterprises, Internet cafes, hotels, and schools. It is an unmanaged, Layer 2 switch featuring a fan‑free design that reduces power consumption and noise. The switch is easy to install and maintain with plug-and-play capability.

Port Configuration

Item	Description
Downlink Ports	24 × 10/100/1000BASE-T Ethernet ports
Uplink Ports	4 × 10GE SFP+ optical ports
Total Ports	28 ports
Port Structure	Non-modular
Switching Method	Store‑and‑forward

Technical Specifications

Parameter	Specification
Switching Capacity	168 Gbit/s
Packet Forwarding Rate	96 Mpps
MAC Address Table	16K MAC addresses
Network Standards	Supports MAC address auto-learning and aging; supports static, dynamic, and blackhole MAC table entries; supports source MAC address filtering

LED Indicators

Indicator	Status	Description
Power Indicator	Steady green	The switch is powered on.
	Off	The switch is powered off.
GE Electrical Port Indicator	Steady green	A port has established a 1000M connection.
	Blinking green	A port is connected at 1000 Mbit/s and transmitting data.
	Steady yellow	A port has established a 10M or 100M connection.
	Blinking yellow	A port is transmitting data at 10 Mbit/s or 100 Mbit/s.
	Off	A port is not connected.
10GE Optical Port Indicator	Steady green	A port has established a 1000M or 10G connection.
	Blinking green	A port is transmitting data.
	Off	A port is not connected.

Physical Specifications

Parameter	Specification
Dimensions (H × W × D)	43.6 mm × 442.0 mm × 220.0 mm (1.72 in × 17.40 in × 8.66 in)
Weight (including packaging)	3.78 kg (8.33 lb)
Chassis	19‑inch rack‑mountable

Environmental Specifications

Parameter	Specification
Operating Temperature	0°C to 45°C (32°F to 113°F) at an altitude of 0‑1800 m (0‑5906 ft.)
Operating Temperature (High Altitude)	When altitude is 1800‑5000 m (5906‑16404 ft.), maximum operating temperature decreases by 1°C (1.8°F) for every 220 m (722 ft.) increase in altitude
Operating Temperature (with 10 km 10GE Optical Module)	0°C to 40°C (32°F to 104°F)
Storage Temperature	‑40°C to +70°C (‑40°F to +158°F)
Relative Humidity	5% to 95%, non‑condensing
Operating Altitude	0‑5000 m (0‑16404 ft.)
Noise	Noise‑free (fan‑less design)
Heat Dissipation	Fan‑less, natural heat dissipation

Power Specifications

Parameter	Specification
Power Supply Type	Fixed AC power supply
Rated Voltage Range	100 V AC to 240 V AC, 50/60 Hz
Maximum Voltage Range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum Power Consumption (100% throughput)	24.8 W
