Huawei CloudEngine S6750-S24T16X8Y2CZ – Product Information Sheet

Name: Huawei CloudEngine S6750-S24T16X8Y2CZ - SunSpike
SKU: S6750-S24T16X8Y2CZ

Product Overview

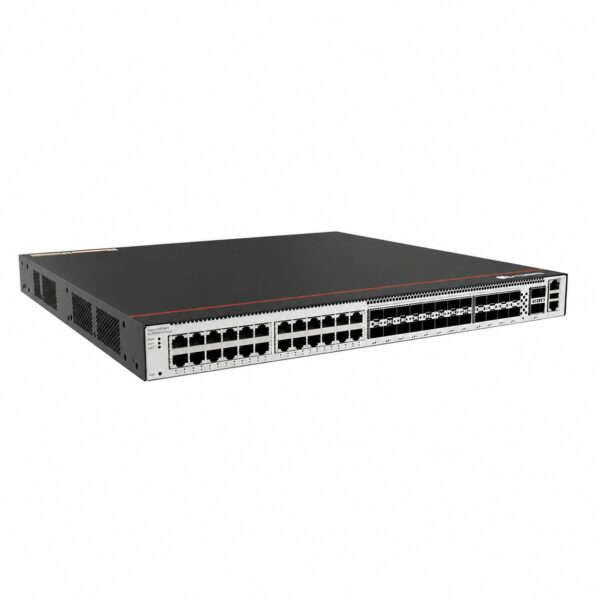

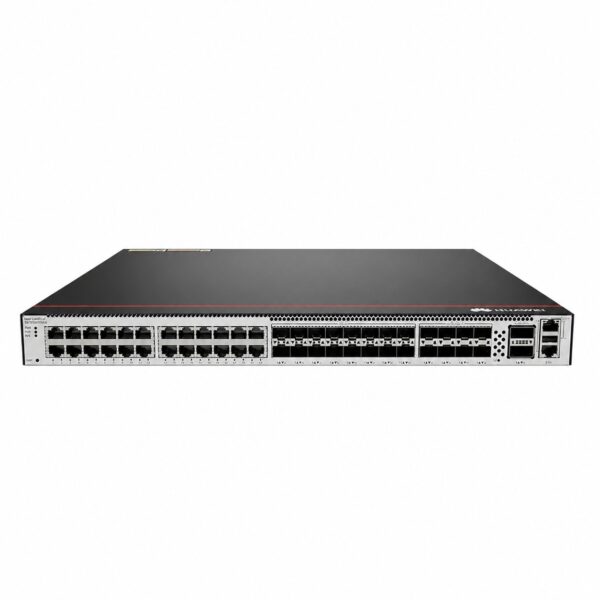

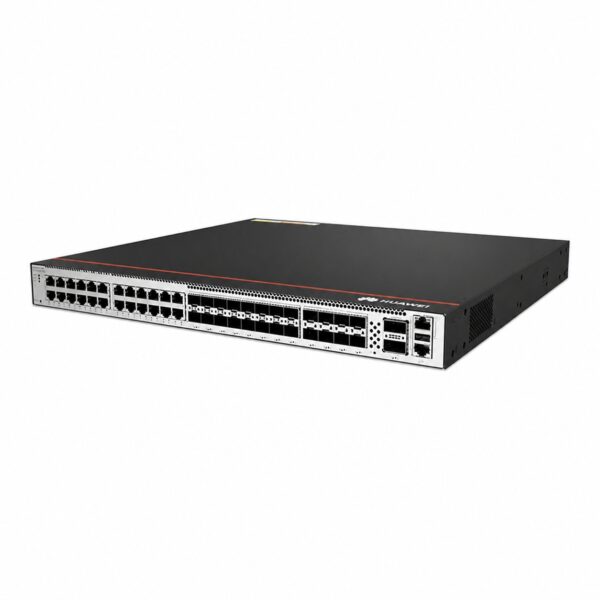

The Huawei CloudEngine S6750-S24T16X8Y2CZ is a next-generation enterprise-class core and aggregation switch within the CloudEngine S6750-S series. It provides downlink GE electrical ports, downlink 10GE/25GE optical ports, and uplink 25GE/100GE optical ports. This Ethernet switch is ideal for campus networks, offering high performance, high reliability, cloud-based management, and intelligent operations and maintenance (O&M).

Built on Huawei’s industry-leading software and hardware platform, the switch is purpose-built with security, Internet of Things (IoT), and cloud networking in mind. It supports advanced technologies such as free mobility, VXLAN, SRv6, and network slicing. The switch provides a rich combination of port types — including GE, 10GE, 25GE, and 100GE — to meet diversified network bandwidth requirements, delivering ultimate user experience and carrier-class reliability.

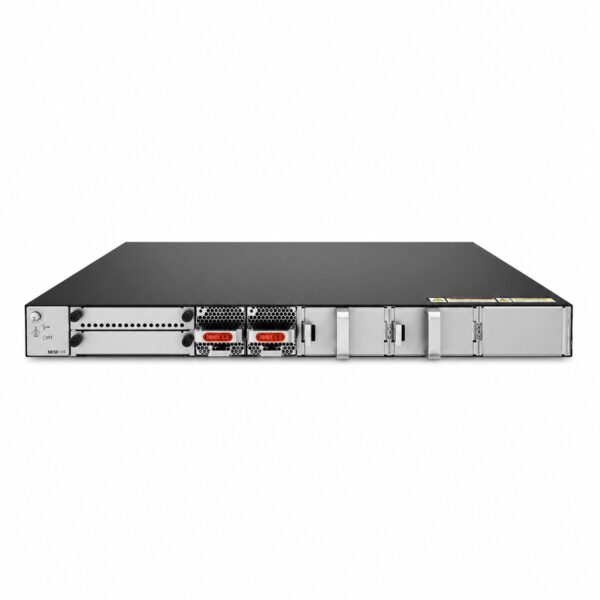

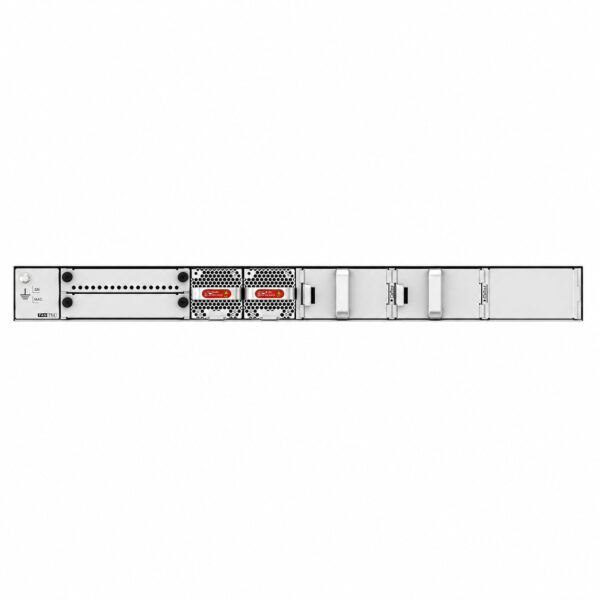

The CloudEngine S6750-S24T16X8Y2CZ is widely deployed at the aggregation layer of large campus networks or at the core layer of small and medium-sized campus networks across various industries, including transportation, manufacturing, and education. It also features an expansion slot and dual pluggable power modules with 1+1 power backup.

Technical Specifications

Category	Specification
Product Model	CloudEngine S6750-S24T16X8Y2CZ
Forwarding Performance	450 Mpps
Switching Capacity (Device/System)	968 Gbps / 2.32 Tbps

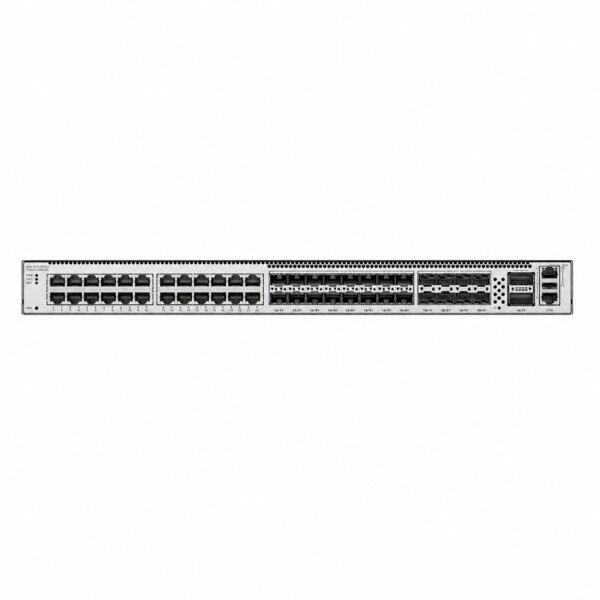

Fixed Ports	24 × 10M/100M/1000M Base-T Ethernet ports + 16 × 10GE SFP+ ports + 8 × 25GE SFP28 ports + 2 × 40GE/100GE QSFP28 ports
Expansion Slots	One expansion slot
Power Supply	Dual pluggable power modules, 1+1 backup
MAC Features	MAC address auto-learning and aging; Static, dynamic, and blackhole MAC address entries; Packet filtering based on source MAC addresses; MAC address learning limiting based on ports and VLANs
VXLAN Features	Distributed and centralized VXLAN gateways; BGP EVPN VXLAN configuration through NETCONF; VXLAN route switching
iPCA Quality Awareness	Direct marking of service packets to obtain real-time statistics about dropped packets and packet loss rate; Measurement of dropped packets and packet loss rate on Layer 2/Layer 3 devices and networks
QoS	Traffic classification based on information from the link layer to the application layer; Complete queue scheduling and congestion control algorithms; Accurate multi-level scheduling for data flows; Hardware-based low-latency QoS queues for multicast packets
Interoperability	VBST (compatible with PVST/PVST+/RPVST); LNP (similar to DTP); VCMP (similar to VTP)
