Huawei CloudEngine S6730-S24X6Q-AC – Product Documentation

Name: Huawei CloudEngine S6730-S24X6Q-AC - SunSpike
SKU: S6730-S24X6Q-AC

Product Overview

The Huawei CloudEngine S6730-S24X6Q-AC is a next-generation enterprise-class 10 GE fixed switch belonging to the CloudEngine S6730-S series. It is designed to provide high-speed 10 Gbit/s access to high-density servers and Wi-Fi 6 access points, while also functioning as a core or aggregation switch on campus networks with 40 Gbit/s uplink rates.

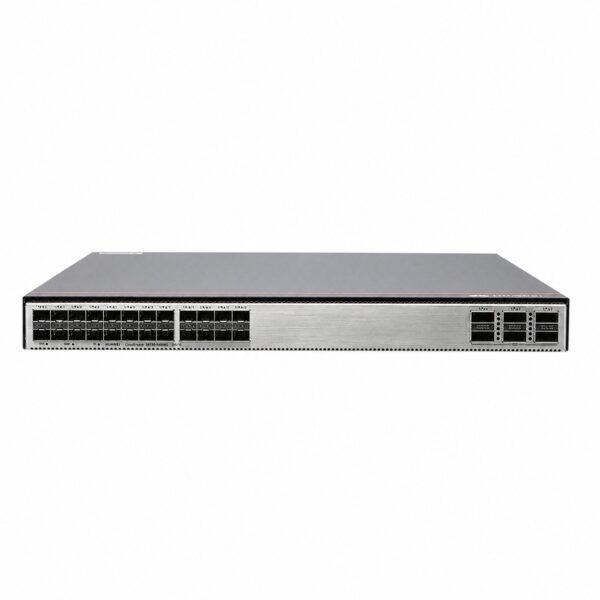

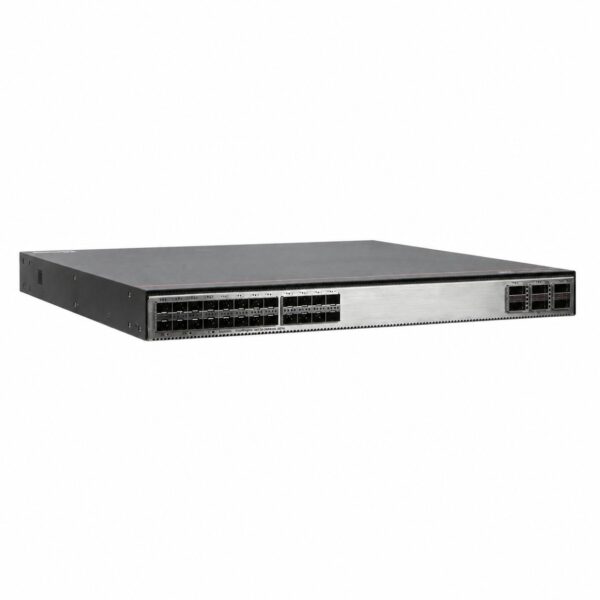

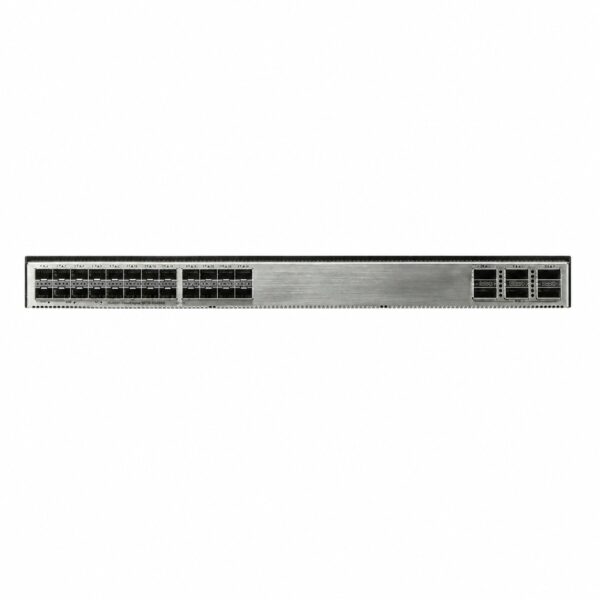

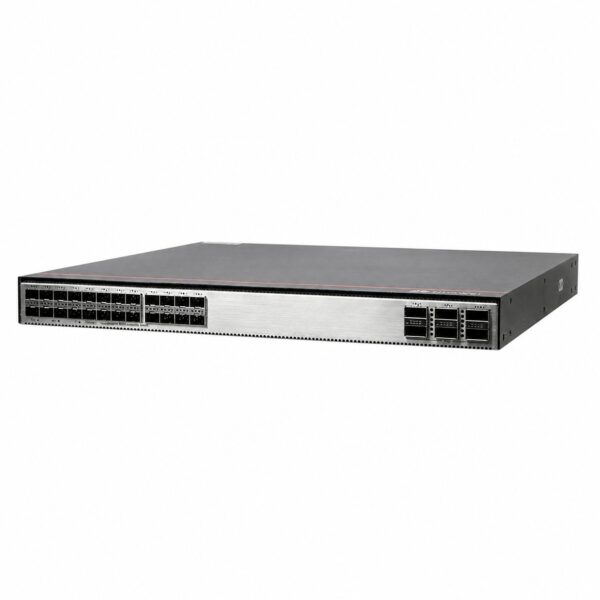

This switch features 24 x 10 GE SFP+ downlink ports and 6 x 40 GE QSFP+ uplink ports. It supports dual pluggable power modules with 1+1 power backup for enhanced reliability, and comes equipped with one 600 W AC power module by default. The switch also features 4 pluggable fan modules with intelligent fan speed adjustment.

Built on Huawei’s unified software platform, the CloudEngine S6730-S24X6Q-AC delivers a rich set of Intent-Driven Network (IDN) features. It supports VXLAN for network virtualization with L2 and L3 gateways, centralized and distributed gateways, and BGP-EVPN, enabling automated deployment of virtual networks and reducing operational expenditure. The Super Virtual Fabric (SVF) feature allows the switch to function as a parent node, vertically managing downstream switches and access points as a single device for simplified management. With iPCA technology, real-time statistics on packet loss are collected at both network and device levels. The switch also supports Telemetry for real-time device data collection, which can be integrated with Huawei’s iMaster NCE-CampusInsight network analyzer for intelligent network operations and proactive fault detection.

With a forwarding performance of 490 Mpps and a switching capacity of 960 Gbit/s / 2.4 Tbit/s, the CloudEngine S6730-S24X6Q-AC is an ideal choice for building scalable, reliable, and secure campus and data center networks.

Product Specifications

Category	Specification
Model	CloudEngine S6730-S24X6Q-AC
Device Type	Enterprise-class 10 GE fixed switch
Fixed Ports	24 x 10 GE SFP+; 6 x 40 GE QSFP+
Forwarding Performance	490 Mpps
Switching Capacity	960 Gbit/s / 2.4 Tbit/s (device/system)
Power Supply Type	Dual pluggable power modules, 1+1 backup
Power Supply Equipped	1 x 600 W AC power module (PAC600S12-CB / PAC600S12-EB)
Rated Input Voltage (AC)	100 V AC to 240 V AC, 50/60 Hz
Maximum Input Voltage (AC)	90 V AC to 290 V AC, 45 Hz to 65 Hz
Rated Input Voltage (DC)	240 V DC
Maximum Input Voltage (DC)	190 V DC to 290 V DC
Maximum Input Current (AC)	8 A (100 V AC to 240 V AC)
Maximum Input Current (DC)	4 A (240 V DC)
Maximum Output Current	50 A
Rated Output Voltage	12 V
Maximum Output Power	600 W
Maximum Power Consumption	231 W
Minimum Power Consumption	97 W

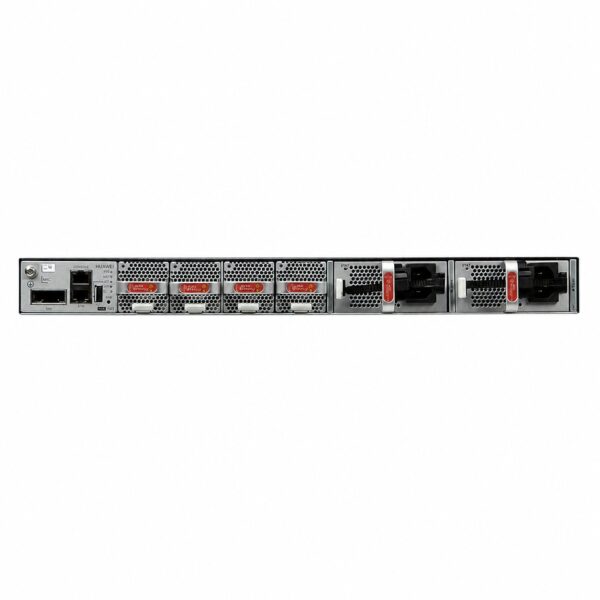

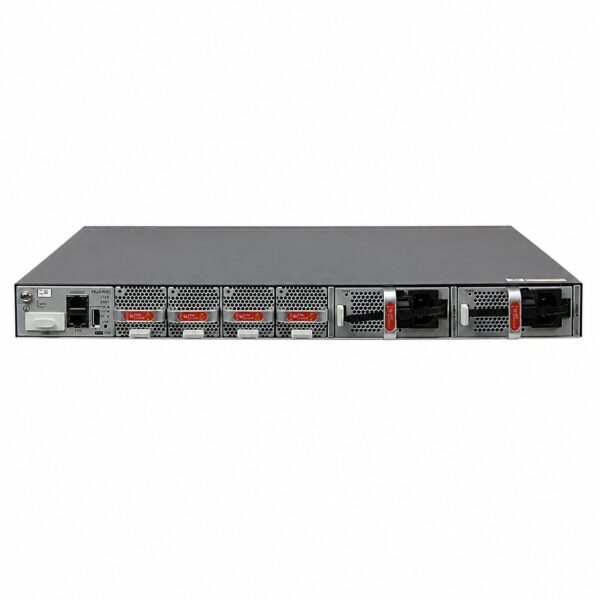

Cooling Method	Heat dissipation with fan, 4 pluggable fan modules, intelligent fan speed adjustment
Fan Module Model	FAN-031A-B
Fan Module Dimensions (W x D x H)	40 mm x 100.3 mm x 40 mm
Fan Module Weight	0.1 kg
Fan Module Max Power Consumption	21.6 W
Fan Module Max Speed	24500 ± 10% RPM
Fan Module Max Airflow	31 CFM
Fan Hot Swap	Supported
Power Module Hot Swap	Supported
Noise (Sound Pressure at Normal Temperature)	52 dB(A)
Operating Temperature (0–1800 m altitude)	–5°C to 45°C
Operating Temperature (1800–5000 m altitude)	Reduces by 1°C per 220 m altitude increase
Storage Temperature	–40°C to 70°C
Long-Term Operating Altitude	0–5000 m
Relative Humidity	5% to 95%, non-condensing
Surge Protection (AC Power Interface)	Differential mode: ±6 kV; Common mode: ±6 kV
Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm
Chassis Height	1U
Flash Memory	2 GB
Memory (RAM)	4 GB

Key Features

Feature Category	Description
VXLAN	Supports VXLAN L2 and L3 gateways; centralized and distributed gateways; BGP-EVPN; configuration via NETCONF protocol
Super Virtual Fabric (SVF)	Functions as parent node to vertically manage switches and APs as one device; supports two-layer client architecture; supports third-party devices between SVF parent and clients
iPCA	Real-time statistics on packet loss count and packet loss ratio at network and device levels
Security	Encrypted Communication Analytics (ECA); threat trap technology; network-wide security collaboration
Interoperability	VBST (compatible with PVST, PVST+, and RPVST); LNP (similar to DTP); VCMP (similar to VTP)
Cloud Management	Full lifecycle management from planning, deployment, monitoring, experience visibility, and fault rectification to network optimization
SEP & ERPS	Smart Ethernet Protection for ring network topologies; ERPS (ITU-T G.8032) for millisecond-level protection switching
Smart Link & VRRP	Uplink backup and redundancy; multiple links to aggregation switches for improved reliability
