Huawei CloudEngine CE9855-32DQ – Data Center Switch

Name: Huawei CloudEngine CE9855-32DQ – Data Center Switch - SunSpike
SKU: CE9855-32DQ

Product Overview

The Huawei CloudEngine CE9855-32DQ is a next‑generation, high‑density 400GE access switch designed for modern data center (DC) scenarios. As part of the CloudEngine 9855 series, it features an advanced hardware architecture that delivers high‑density 400GE access ports, supports 400GE uplink ports, and provides a wide range of DC service features with flexible airflow direction (front‑to‑back or back‑to‑front).

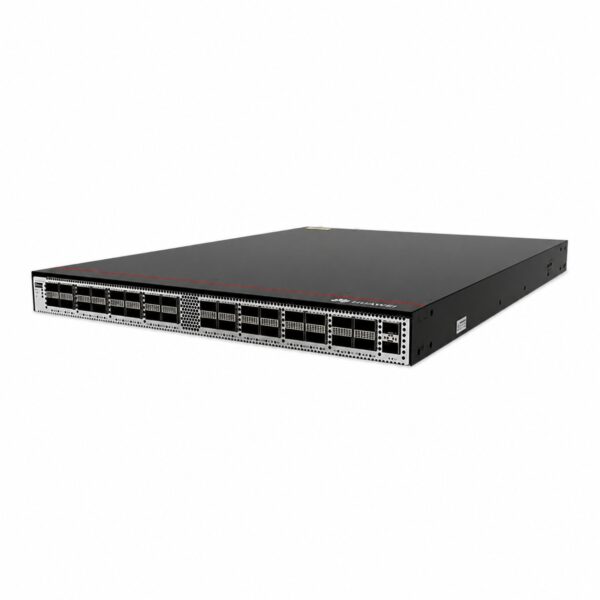

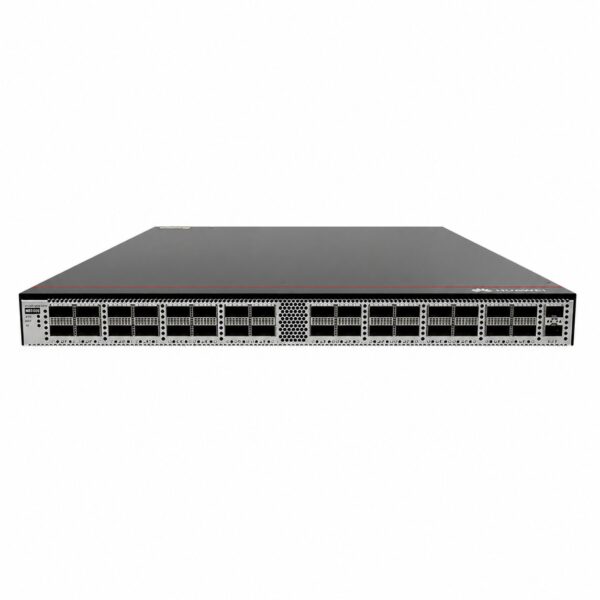

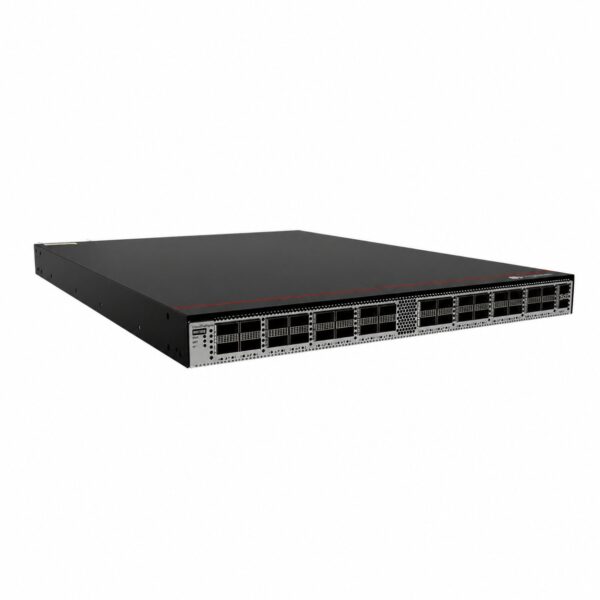

The switch comes in a fixed‑configuration form factor and provides 32 × 400GE QSFP‑DD ports and 2 × 10GE SFP+ ports (uplink and downlink not distinguished). Each 400GE QSFP‑DD port is backward compatible with 200GE/100GE/40GE interfaces and can be split into four 100GE ports or two 200GE ports. The switch can connect to CloudEngine 16800/16800‑X series core switches through 40GE/100GE/200GE uplinks to build a non‑blocking network platform.

The CE9855‑32DQ runs on Huawei’s next‑generation operating system and supports a rich set of data center features including VXLAN routing and bridging, BGP‑EVPN, M‑LAG, and intelligent lossless networking with the iLossless algorithm for RoCEv2 applications. It seamlessly integrates with CloudEngine 16800/16800‑X series DC core switches to build an elastic, virtualized, high‑quality, and fully‑connected 40GE/100GE/200GE/400GE data center network. The switch can also function as a core or aggregation switch in campus networks.

Key differentiators include high‑density 400GE access with 32 QSFP‑DD ports, flexible port rate adaptation and splitting (400GE → 4×100GE or 2×200GE), M‑LAG for cross‑device link aggregation with active‑active load sharing and independent upgrade capability, advanced virtualization with VXLAN and BGP‑EVPN, intelligent lossless network features (iLossless algorithm, PFC deadlock prevention, AI ECN), comprehensive Telemetry and iFIT for intelligent O&M, and Zero Touch Provisioning (ZTP) for automated deployment.

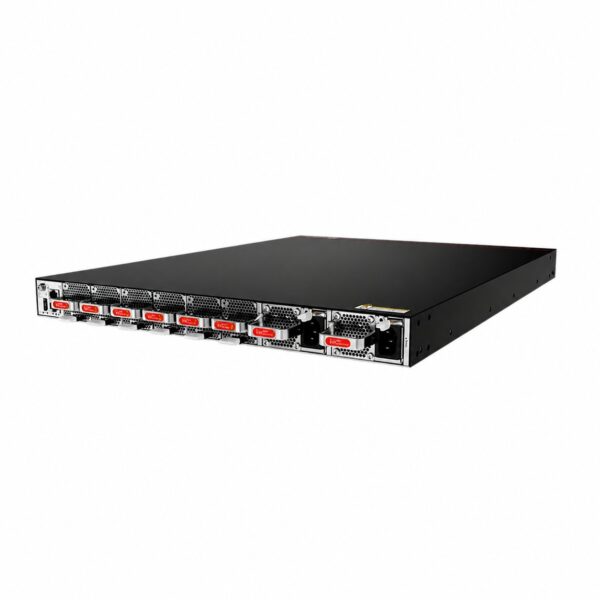

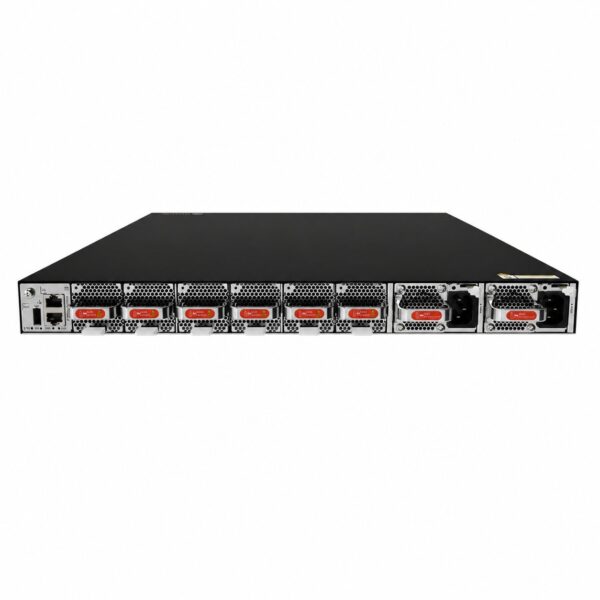

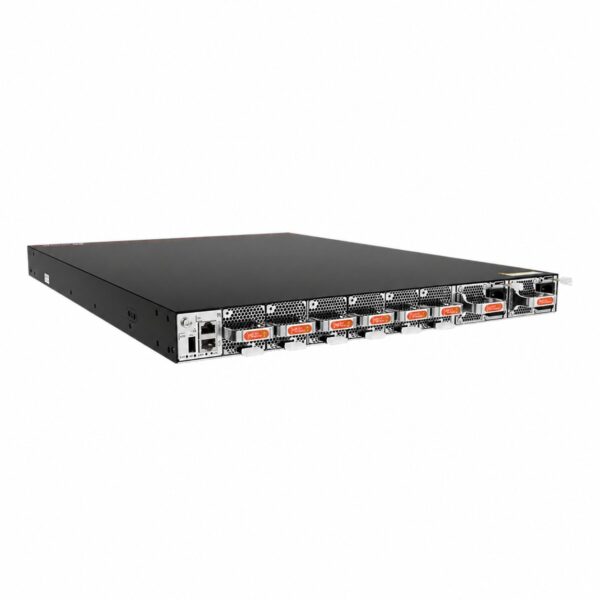

The chassis is supplied without fan boxes and power modules, which must be ordered separately. It supports 1+1 redundant, hot‑swappable power modules and N+1 redundant, hot‑swappable fan modules.

Product Specifications

Category	Specification
Model	CE9855‑32DQ
Product Type	Data Center Switch (Fixed Configuration)
Chassis Height	1U
Fixed Ports	32 × 400GE QSFP‑DD + 2 × 10GE SFP+ (uplink and downlink not distinguished)
Switching Capacity	25.6 Tbps
Packet Forwarding Rate	19200 Mpps
System Buffer	130 MB
CPU	16‑core, 2 GHz
DRAM Memory	16 GB
MAC Address Table	640K
ARP Entries	128K
IPv6 ND Table Size	128K
Maximum VLANs	4096
Maximum VRFs	4096
Maximum ECMP Paths	1024
Port Compatibility	400GE QSFP‑DD backward compatible with 200GE/100GE/40GE
Port Splitting	400GE port → 4 × 100GE ports or 2 × 200GE ports (200GE/100GE/40GE cannot be split)
Power Supply Type	AC / HVDC (pluggable, hot‑swappable)
Power Module Options	2000W AC & 240V DC
Power Supply Redundancy	1+1 backup, hot‑swappable
Fan Redundancy	N+1 redundant, hot‑swappable
Management Ports	1 × ETH management port (RJ45), 1 × Console port (RJ45)
USB Port	1 × USB port
Dimensions (H × W × D)	43.6 mm × 442.0 mm × 420.0 mm (1.72 in × 17.4 in × 16.5 in)
Weight	9.5 kg
Operating Temperature	0°C to 40°C (0m–1800m altitude)
Storage Temperature	-40°C to +70°C
Operating Humidity	5% to 95% (non‑condensing)
Airflow Direction	Flexible (front‑to‑back or back‑to‑front)
Mounting	Rack‑mountable (1U)
Stacking	Not supported

Key Features Supported

Feature Category	Supported Capabilities
Virtualization	VXLAN routing and bridging, BGP‑EVPN as VXLAN control plane
Intelligent Lossless Network	iLossless algorithm (lossless, low‑latency, high‑throughput for RoCEv2), PFC deadlock prevention, AI ECN (Explicit Congestion Notification)
Link Aggregation	M‑LAG (Multichassis Link Aggregation Group) – cross‑device link aggregation, active‑active load sharing, independent node upgrade with zero service interruption
High Availability	Hardware BFD, VRRP, VRRP load sharing, BFD for VRRP/BGP/IS‑IS/OSPF/static routing, LACP, STP/RSTP/VBST/MSTP
O&M & Telemetry	Telemetry (real‑time data collection), iFIT (In‑situ Flow Information Telemetry) for path visualization and packet loss/latency measurement, Packet Event for packet discarding reporting, Application views
SDN & Automation	NETCONF, integration with iMaster NCE‑Fabric, Open API, Ansible automation, OPS (Open Programmability System)
Zero‑Touch Provisioning	ZTP (Zero Touch Provisioning) – automatic version file loading, embedded script language support (Python)
QoS	ACL, CAR, Remark, Schedule; PQ, DRR, PQ+DRR queue scheduling; WRED and tail drop congestion avoidance; Traffic shaping
VLAN	Access, Trunk, Hybrid modes; default VLAN; QinQ; MUX VLAN
IPv4 Routing	RIP, OSPF, ISIS, BGP dynamic routing protocols
IPv6	IPv6 ND, PMTU discovery, RIPng, OSPFv3, ISISv6, BGP4+
Multicast	IGMP Snooping, IGMP Proxy, IGMP, PIM‑SM, MSDP multicast routing protocols; IPv6 multicast
Security	MACsec, Micro‑segmentation security isolation, DoS/ARP/ICMP attack prevention, Port isolation, Port security, Sticky MAC, IP‑MAC‑port‑VLAN binding, AAA, RADIUS, HWTACACS authentication
Configuration & Maintenance	Console, Telnet, SSH terminal services; SNMPv1/v2c/v3; RMON; FTP/TFTP file transfer; Hot patching; Configuration rollback
