Huawei CloudEngine CE8851-32CQ8DQ-K Data Center Switch – Documentation List & Full Specifications

1. Reference Materials List

#	Document / Source	Description
1	Huawei CloudEngine 8851 Data Center Switch Brochure (Detailed Product Brochure)	Official Huawei product brochure covering the CloudEngine 8851 series, including high-density 40GE/100GE/200GE/400GE interfaces, data center features, and flexible airflow design
2	Huawei Support – CloudEngine 9800, 8800, and 6800 V300R025C00 Configuration Guide – Ethernet Switching	Official configuration guide covering Ethernet switching features applicable to CE8851-32CQ8DQ-K
3	Huawei Support – Configuration Precautions for EAI – CloudEngine 9800, 8800, and 6800 V300R025C00	Configuration precautions document listing CE8851-32CQ8DQ-K among supported models
4	Huawei Support – Configuration Precautions for MAC – CloudEngine 9800, 8800, and 6800 V300R024C10	MAC configuration precautions document covering CE8851-32CQ8DQ-K
5	ycict.com – CloudEngine 8851-32CQ8DQ-K Product Page	Detailed specifications including part numbers, dimensions, weight, port configuration, and first supported version
6	Telecomate.com – CE8851-32CQ8DQ-K Product Page	Product overview, port descriptions, connector types, and indicator definitions
7	YYST Global – CE8851-32CQ8DQ-K Data Center Switch	Specifications including switching capacity, forwarding performance, dimensions, weight, and CPU/memory details
8	Huawei Info-Finder (Online Tool)	Online hardware compatibility and MIB query tool for CloudEngine series switches

2. Product Overview (Full English)

The Huawei CloudEngine CE8851-32CQ8DQ-K is a next-generation, high-performance, high-density data center Ethernet switch from Huawei’s CloudEngine 8800 series. Designed for cloud-oriented data center networks and high-end campus networks, the CE8851-32CQ8DQ-K delivers a combination of high performance, low latency, and extensive port density to meet the demanding requirements of modern data center environments.

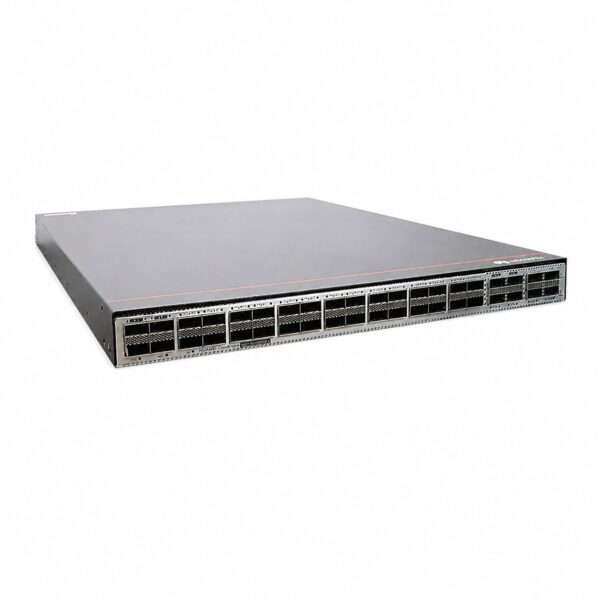

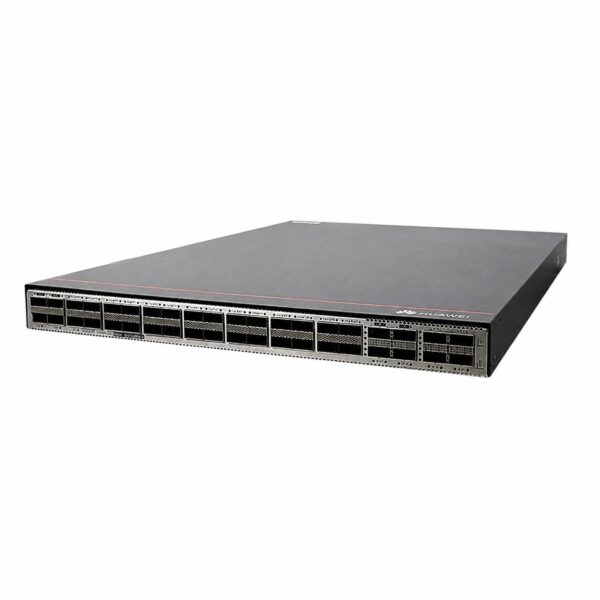

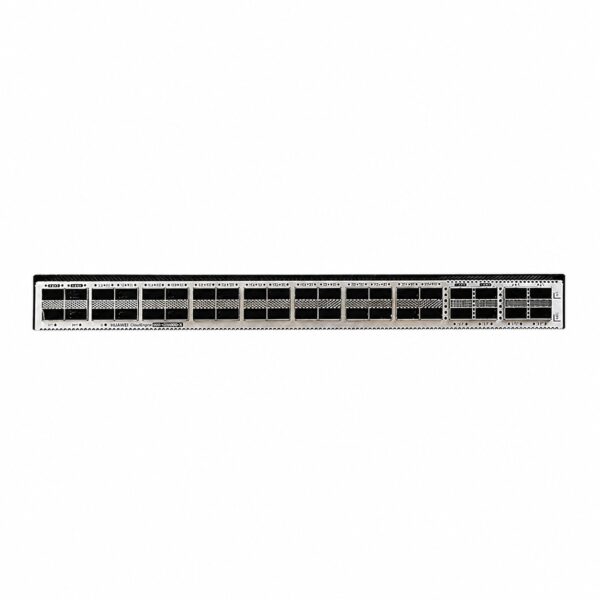

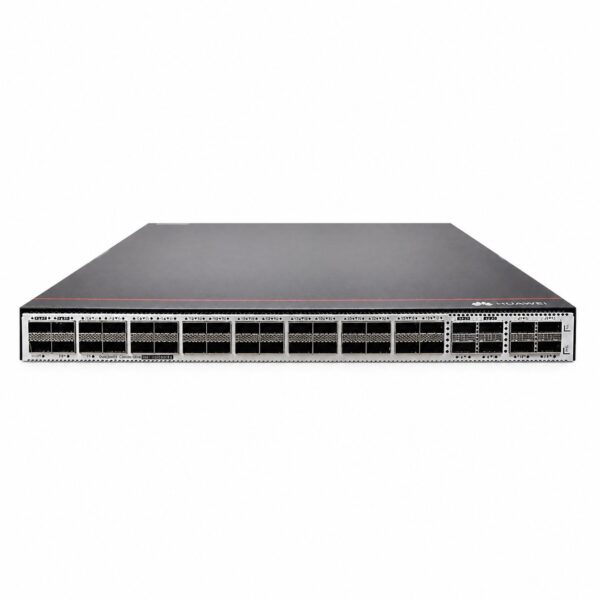

High-density port configuration – The switch provides 32× 100GE QSFP28 ports (also operable as 32× 200GE QSFP56 ports) and 8× 400GE QSFP-DD ports. The 100GE and 200GE ports are backward compatible with 40GE, with 100GE ports supporting breakout into 4×25GE, 4×10GE, or 2×50GE. The 400GE QSFP-DD ports support breakout into 4×100GE, providing flexible and scalable networking capabilities.

Key capabilities of the CE8851-32CQ8DQ-K include:

High switching capacity – Up to 25.6 Tbps switching capacity with 7200 Mpps L2/L3 wire-speed forwarding performance
Extensive data center features – Full support for Software-Defined Networking (SDN) capabilities, VXLAN hardware gateway functionality, and BGP-EVPN as the VXLAN control plane
High network reliability – Supports M-LAG (Multichassis Link Aggregation Group) for device-level link reliability, independent node upgrades with zero service interruption, and M-Lag Lite for server active-active access
Intelligent automation and open integration – Supports NetConf protocol for integration with Huawei iMaster NCE-Fabric, Ansible automation management, and deep integration with mainstream cloud platforms (both commercial and open-source) via Open API

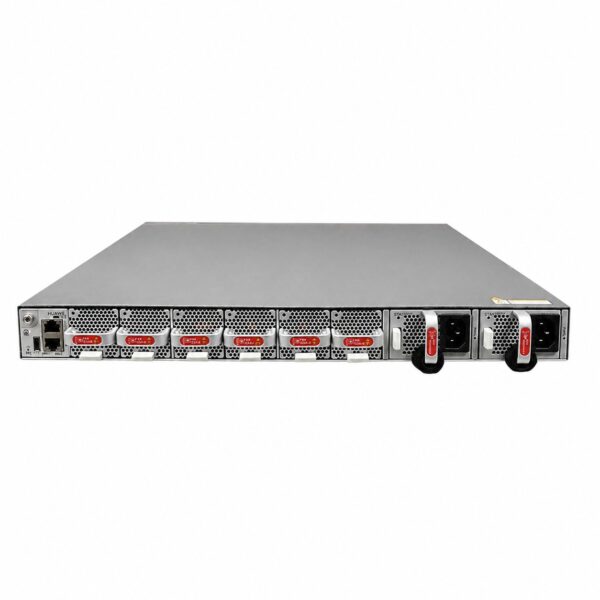

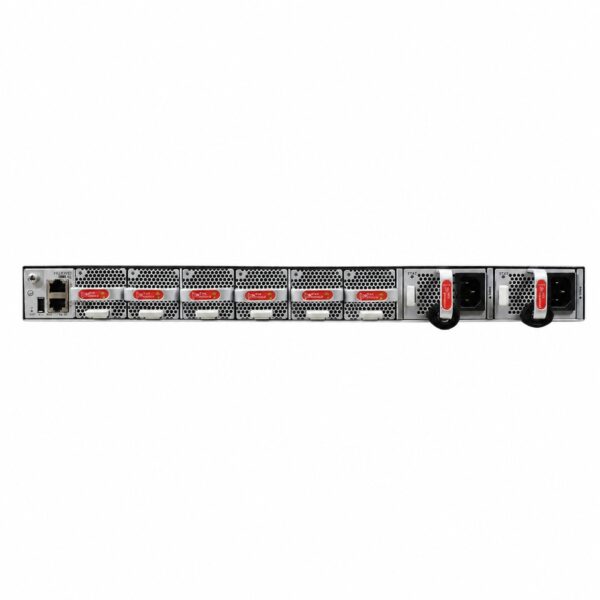

Flexible airflow design – Supports both front-to-back and back-to-front airflow with 6 hot-swappable fan modules

The CE8851-32CQ8DQ-K employs advanced hardware architecture and a 1U chassis design, delivering high-density 400GE/200GE/100GE/40GE/25GE/10GE ports. It can interoperate with Huawei CloudEngine 16800 or CloudEngine 12800 series core switches to build elastic, virtualized, and high-quality 400GE/100GE full-mesh networks for cloud computing data centers. The switch can function as a core or aggregation switch in data center networks, helping enterprises and carriers build scalable data center network platforms for the cloud computing era.

3. Technical Specifications (Parameter Table)

Category	Parameter	Details
General	Product Type	Data Center Ethernet Switch
	Model	CE8851-32CQ8DQ-K
	Part Number (base)	02353PJQ (switch without fan and power modules)
	Alternate P/N	02353PJR (with 2×AC power modules, 6×fan modules, port-side intake)
	Short Name	CE8851K
	Series	CloudEngine 8800 Series
	Device Type	Fixed Data Center Switch
	Installation Type	1U rack-mounted
	First Supported Version	V300R020C00
Performance	Switching Capacity	Up to 25.6 Tbps
	Packet Forwarding Rate	7200 Mpps (L2/L3 wire-speed forwarding)
	Buffer	Large buffer, optimized for AI and storage workloads
Ports	Downlink Ports	32× 100GE QSFP28 / 32× 200GE QSFP56
	Uplink Ports	8× 400GE QSFP-DD
	Port Breakout	100GE ports: 4×25GE, 4×10GE, or 2×50GE; 400GE ports: 4×100GE or 2×200GE
	Port Compatibility	100GE/200GE ports backward compatible with 40GE; 400GE ports backward compatible with 200GE, 100GE, and 40GE
Processor & Memory	CPU	Multi-core CPU
	DRAM	16 GB
	NOR Flash	64 MB
	NAND Flash	8 GB
Management	Console Port	1× RJ45 console (default baud rate: 9600 bit/s)
	ETH Management Port	1× RJ45 Ethernet management
	USB Port	1× USB 2.0 Type A
Physical Dimensions	Chassis Fan Slots	6
	Power Supply Slots	2
	Dimensions (W×D×H) – without packaging	442 mm × 600 mm × 43.6 mm (17.40 in × 23.62 in × 1.72 in)
	Dimensions (W×D×H) – maximum	442 mm × 625.5 mm × 43.6 mm (17.40 in × 24.63 in × 1.72 in)
	Dimensions (W×D×H) – with packaging	790 mm × 590 mm × 260 mm (31.10 in × 23.23 in × 10.24 in)
	Weight – bare chassis (no PSU/fans/optics)	9.1 kg
	Weight – full config (PSUs + fans, no optics)	12.2 kg
	Weight – with packaging (bare)	13.4 kg (29.54 lb)
	Weight – with packaging (full config)	16.5 kg (36.37 lb)
Power	Input Voltage	AC: 90 V ~ 290 V
	Power Supply Type	AC, DC, or HVDC pluggable modules; supports 1+1 hot-swappable redundancy
	Max Power Consumption (32×200GE + 8×400GE)	1152 W (100% traffic load, 6.5 W 200G optics downlink, 12 W 400G optics uplink, at 40°C, dual PSU)
	Max Power Consumption (32×100GE + 8×400GE)	Information available in datasheet
Cooling	Fan Modules	6 hot-swappable fan modules
	Airflow Direction	Flexible: front-to-back or back-to-front
Environmental	Operating Temperature	0°C to 40°C (0 m – 1800 m altitude)
	Storage Temperature	-40°C to +70°C
	Relative Humidity	5% RH to 95% RH, non-condensing
VLAN	VLAN Modes	Access, Trunk, Hybrid; default VLAN support
	QinQ	Supported
	MUX VLAN	Supported
Reliability	Features	M-LAG (Multichassis Link Aggregation Group), M-Lag Lite; independent node upgrades with zero service interruption
Data Center Features	Protocols	VXLAN (Overlay virtualized network hardware gateway)
		BGP-EVPN as VXLAN control plane
		SDN capabilities
		Supports up to 16M multi-tenant data center operations
Automation & Management	Management Protocols	NetConf, SNMP
	Automation Tools	Ansible automation management
	Cloud Integration	Mainstream cloud platforms (commercial and open-source) via Open API
	Controller Integration	iMaster NCE-Fabric, third-party controllers
O&M	Features	ERSPAN Enhanced
Indicators	Port Side	System status indicator, stack master/slave indicator, ID indicator, service port indicators (100GE/40GE and 400GE)
	Power Supply Side	ETH management port indicator
Stacking	Support	Information available in product documentation
