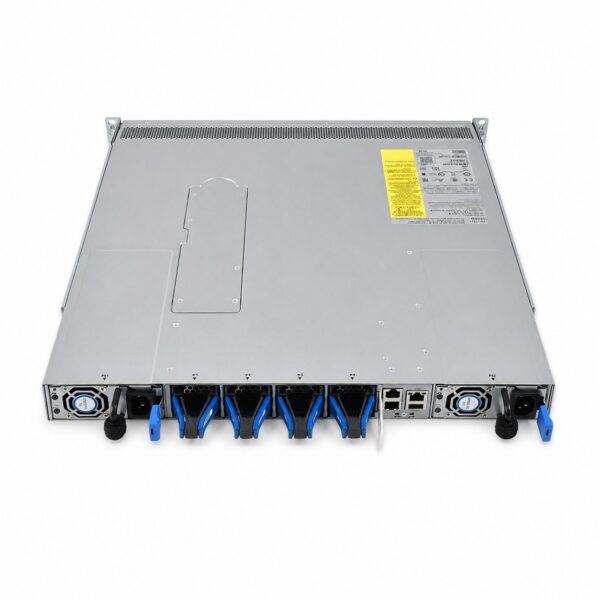

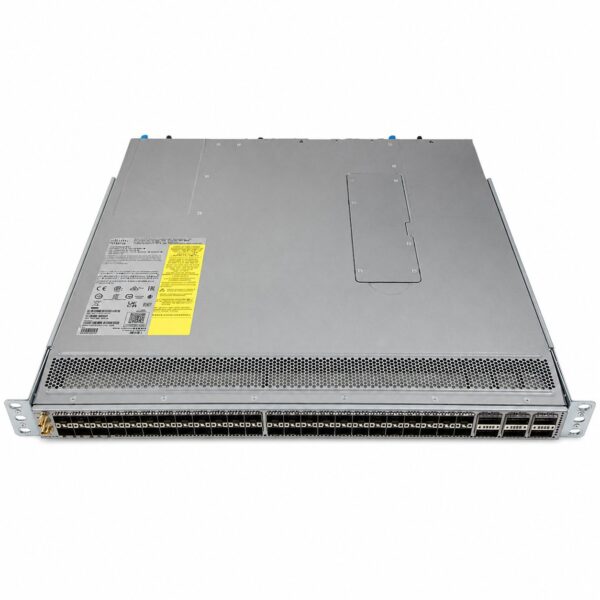

Cisco Nexus 93180YC-FX3 Switch

Product Overview

The Cisco Nexus 93180YC-FX3 Switch is a 1-Rack-Unit (1RU) switch that supports 3.6 Tbps of bandwidth and 1.2 bpps (billion packets per second) performance. The 48 downlink ports on the 93180YC-FX3 are capable of supporting 1-, 10-, or 25-Gbps Ethernet, offering deployment flexibility and investment protection. The 6 uplink ports can be configured as 40- and 100-Gbps Ethernet, offering flexible migration options. It supports standard PTP Telecom profiles with SyncE and PTP boundary clock functionality for Telco data center edge environments.

Technical Specifications

Interfaces & Connectivity

• Interfaces: 1 x management RJ-45, 1 x serial (RS-232), 1 x ToD RJ-45, 1 x USB

• Remote Management Protocol: IPv6, RESTCONF, NETCONF, CLI, JSON, HTTP, HTTPS

Power & Environment

• Power Device: Internal power supply – hot-plug

• Power Redundancy: Optional, N+1

• Typical Power (AC/DC): 325W / 375W

• Maximum Power (AC/DC): 600W

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Humidity Range Operating: 5 – 95% (non-condensing)

• Dimensions (HxWxD): 1.72 x 17.3 x 19.6 in (4.4 x 43.9 x 49.6 cm)

• Weight: 20.99 lbs (9.52 kg)

• MTBF: 288,760 hours

Software & Protocols

• Minimum Software Image: Cisco NX-OS 10.1.1 / NXOS-9.3.7, ACI-N9KDK9-15.1.3

• Routing Protocols: BGP, MPLS, RSVP, OSPF, EIGRP, RIP-2, PIM-SM, PIM-SSM, MSDP, ECMP, HSRP

• Features: VXLAN, EVPN, ACL support, MACsec, VTEP support, RDMA support, DCB, PFC, ETS, DCBX, ECN, vPC, SPAN, NAT support

Compliance & Standards

• Compliant Standards: IEEE 802.1ae (MACsec), ITU-T G.8275.1 (PTP Telecom profile), RoHS, UL 60950-1, FCC CFR47 Part 15 A, EN 55022 Class A, VCCI Class A, etc.
