Supermicro SuperStorage Server SSG-6028R-E1CR24L

Supermicro SuperStorage Server SSG-6028R-E1CR24L

Key Features

• Dual Socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 / v3 family (up to 145W TDP).

• 24 DIMM Slots supporting up to 3TB ECC 3DS LRDIMM or 512GB ECC RDIMM DDR4-2400MHz.

• 24 Hot-swap 3.5″ SAS3/SATA3 Drive Bays + 2x 2.5″ Hot-swap rear SATA drive bays.

• Broadcom / LSI 3008 SAS3 IT Mode Controller (12Gbps).

• Flexible Networking via SIOM (Supermicro I/O Module) expansion card.

• 2 PCI-E 3.0 x16 and 1 PCI-E 3.0 x8 slots.

• 1600W Redundant Power Supplies (80 PLUS Titanium Level, 96% Efficiency).

Detailed Specifications

Processor & System

Parameter	Specification
Model SKU	SSG-6028R-E1CR24L / SYS-6028R-E1CR24L
Motherboard	Super X10DSC+
CPU Socket	Dual Socket R3 (LGA 2011)
Supported Processors	Intel® Xeon® Processor E5-2600 v4 / v3 family (Up to 22 Cores, Up to 145W TDP)
Chipset	Intel® C612

System Memory

Parameter	Specification
Memory Capacity	Up to 3TB ECC 3DS LRDIMM / Up to 512GB ECC RDIMM
Memory Slots	24x 288-pin DDR4 DIMM slots
Memory Type & Speed	2400 / 2133 / 1866 / 1600 MHz ECC DDR4 SDRAM (1.2V)

Storage & Controllers

Parameter	Specification

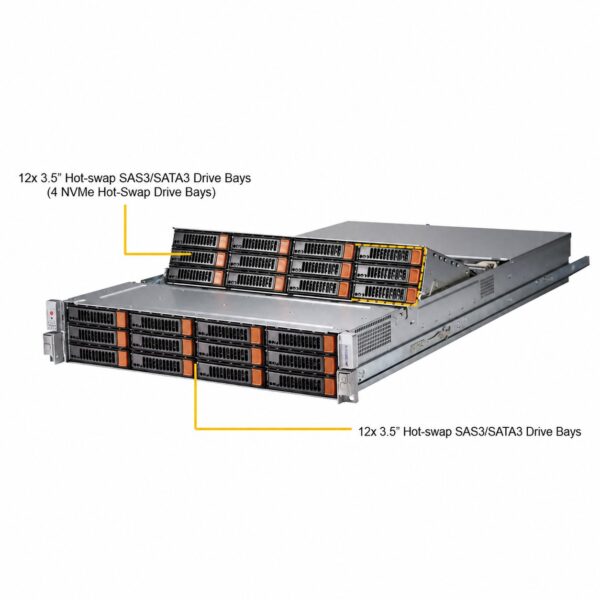

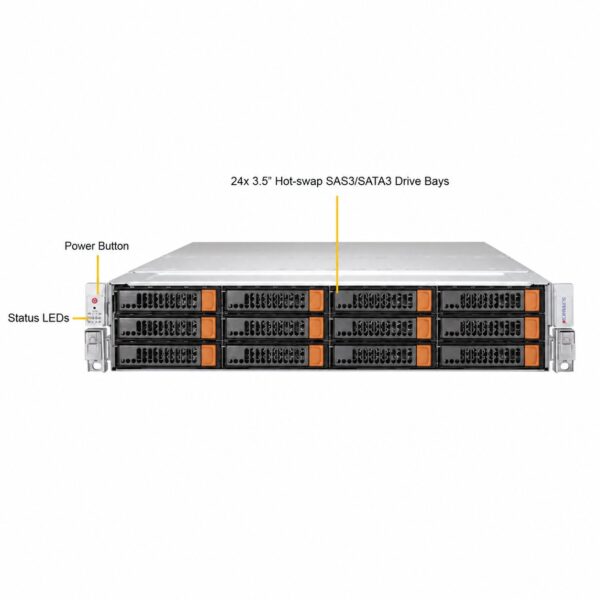

Front Drive Bays	24x 3.5″ Hot-swap SAS3 / SATA3 drive bays (Simply Double Architecture)

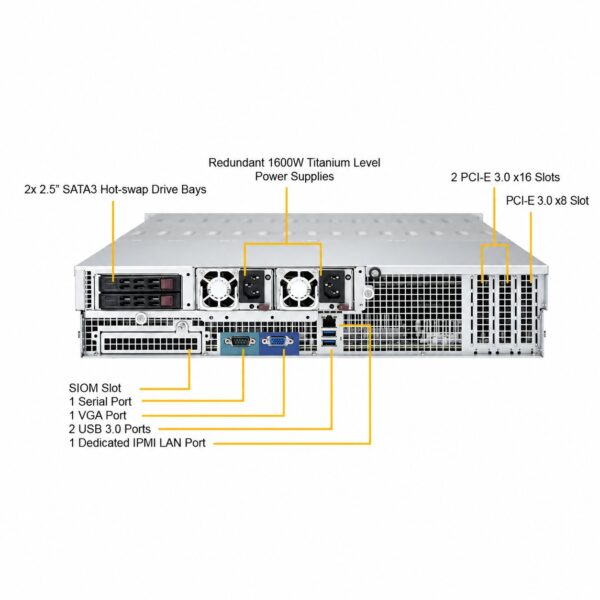

Rear Drive Bays	2x 2.5″ Hot-swap SATA3 drive bays
SAS3 Controller	Broadcom / LSI 3008 12Gb/s SAS3 IT Mode controller
SATA Controller	Intel C612 AHCI SATA3 (6Gbps); RAID 0, 1, 5, 10
Backplane	Dual SAS3 12Gb/s direct-attached / expander backplane

Expansion Slots & Input / Output

Parameter	Specification
PCI-Express Slots	2x PCI-E 3.0 x16 slots, 1x PCI-E 3.0 x8 slot
Network Controllers	Flexible networking support via SIOM Add-on Card (e.g., Dual/Quad 1GbE, 10GbE SFP+/RJ45, 25GbE)
USB Ports	2x USB 3.0 (Rear), 1x USB 3.0 Type-A internal
Video & Serial	1x VGA D-Sub port, 1x Fast UART 16550 Serial Port / Header

Management & Remote Control

Parameter	Specification
BMC Controller	ASPEED AST2400
Management	IPMI 2.0 with Virtual Media over LAN and KVM-over-LAN support
Dedicated LAN	1x Dedicated RJ45 IPMI LAN port

Power Supply & Cooling

Parameter	Specification
Power Supply	1600W Redundant AC-DC Power Supplies with PMBus
Efficiency Rating	80 PLUS Titanium Level (Up to 96%)

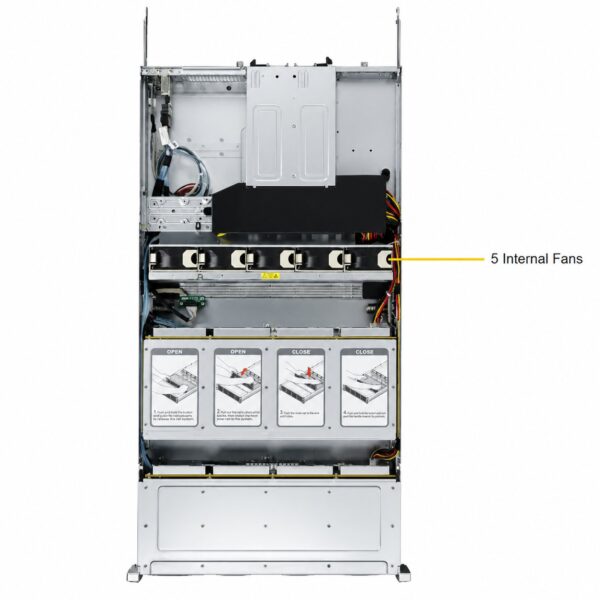

Cooling Fans	5x 8cm high-performance hot-swap redundant PWM cooling fans

Chassis & Physical Dimensions

Parameter	Specification
Form Factor	2U Rackmount
Chassis Model	CSE-826SE1C4-R1K62
Dimensions (W x H x D)	17.2″ (437 mm) x 3.5″ (89 mm) x 34.0″ (863.6 mm)
Operating Temperature	10°C to 35°C (50°F to 95°F)
