Name: Supermicro SuperServer SYS-6019P-WT - SunSpike
SKU: SYS-6019P-WT

Supermicro SuperServer SYS-6019P-WT Specifications

Model: SYS-6019P-WT
Motherboard: Super X11DDW-L
Chassis: CSE-815TQC-605WB (1U Rackmount)
Target Workloads: Cloud & Virtualization, Web Hosting, Firewall / Security Appliances, Compact Enterprise Networking

Feature Category	Technical Specifications
Processor / CPU	Dual Socket P (LGA 3647) supporting 2nd Gen Intel® Xeon® Scalable Processors / Intel® Xeon® Scalable Processors • Dual UPI up to 10.4 GT/s • Supports CPU TDP between 70W – 165W • Up to 28 Cores per socket
System Memory	12 DIMM slots • Up to 3TB 3DS ECC DDR4-2933MHz RDIMM / LRDIMM • Supports Intel® Optane™ Persistent Memory (DCPMM)
Chipset	Intel® C621 Chipset

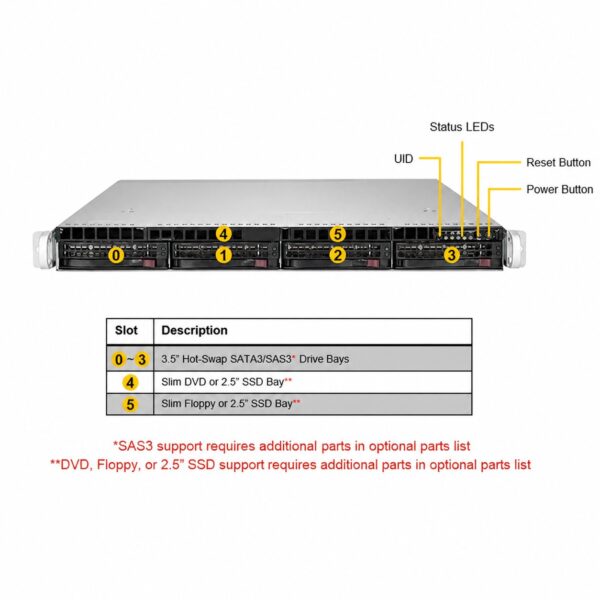

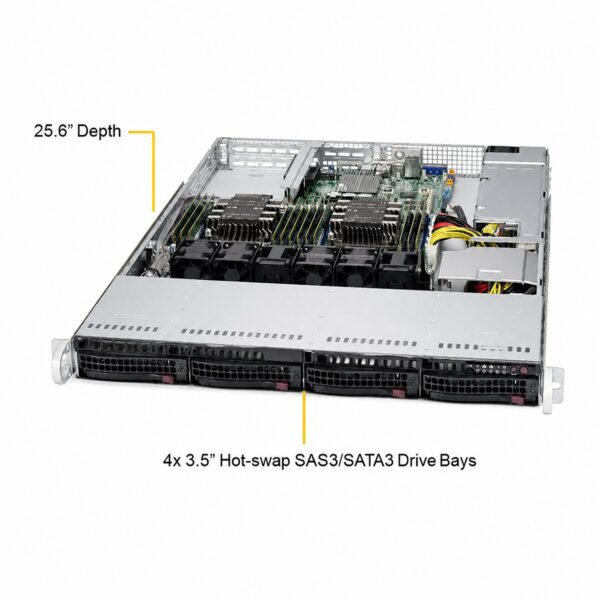

Storage & Drive Bays	• 4x Hot-swap 3.5″ SAS3/SATA3 drive bays with SES2 • Backplane: BPN-SAS3-815TQ (1U 4-Port 12Gbps Backplane) • 1x PCI-E 3.0 x4 NVMe M.2 slot • Optional 1x Slim DVD-ROM drive bay
Expansion Slots	• 2x PCI-E 3.0 x16 (FHHL) slots • 1x PCI-E 3.0 x8 (LP) slot • 1x PCI-E 3.0 x16 Add-on-Module (AOM) slot (for SAS3 Storage Controllers) • 1x PCI-E 3.0 x4 NVMe M.2 slot
On-Board Networking	• Dual 1GbE LAN ports via Intel® C621 • 1x Dedicated RJ45 IPMI LAN port
System Management	IPMI 2.0 with virtual media over LAN and KVM-over-LAN support • ASPEED AST2500 BMC Graphics Controller

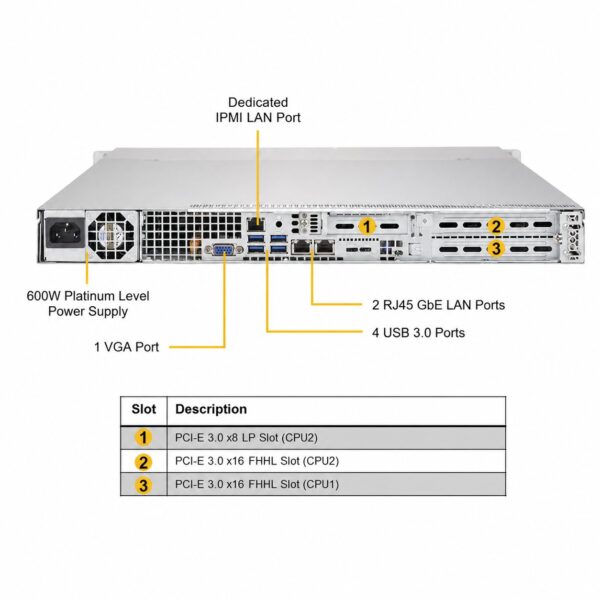

I/O Ports	• 2x RJ45 Gigabit Ethernet LAN ports • 1x Dedicated IPMI LAN port • 4x USB 3.0 ports (Rear) • 1x VGA Video port • 1x Fast UART 16550 Serial Port / Header
Power Supply	600W High-Efficiency Power Supply w/ PMBus 1.2, PFC, Platinum Level Certified • AC Input: 100–240V, 50–60Hz
Cooling System	4x Counter-rotating 4cm PWM fans (includes 2 fans for AOC cooling)
