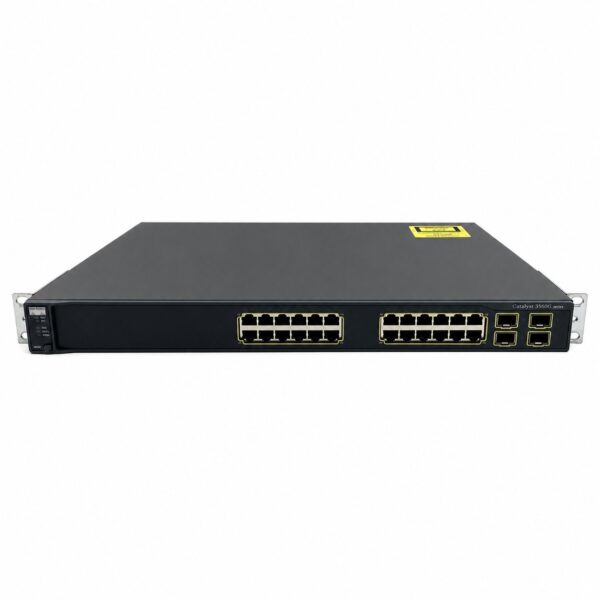

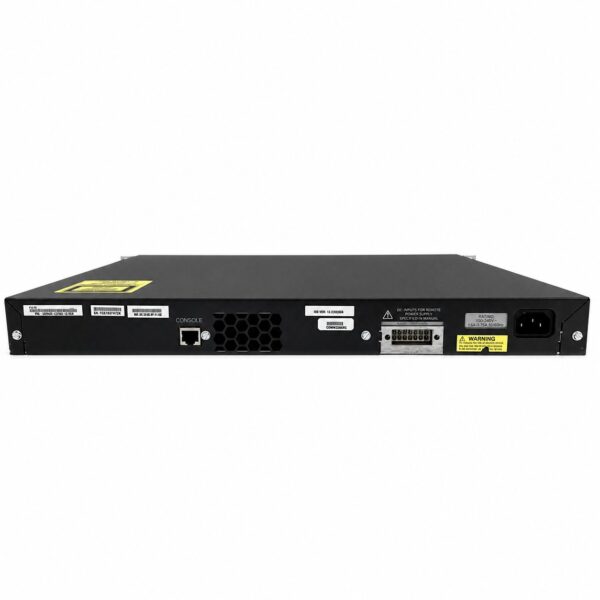

Name: Cisco Catalyst 3560G-24TS - SunSpike
SKU: WS-C3560G-24TS

Product Overview

The Cisco Catalyst 3560G-24TS is a fixed-configuration, enterprise-class, Layer 3 (L3) managed switch. It is designed as an access layer switch for small enterprise LANs or branch offices, and is suitable for deploying applications like IP telephony, wireless access, and video surveillance.

General Specifications

Feature	Specification
Device Type	Switch – 24 ports – L3 – Managed
Enclosure Type	Desktop / Rack-mountable – 1U
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 (RJ-45) + 4 x Gigabit SFP (uplink)
Performance	Forwarding performance (64-byte packet size): 38.7 Mpps
Switching Fabric	32 Gbps
MAC Address Table Size	12K entries
RAM	128 MB
Flash Memory	32 MB
Status Indicators	Port transmission speed, port duplex mode, system, RPS (Redundant Power Supply), link/activity
MTBF	230,700 hours

Networking & Management

Feature	Specification
Routing Protocol	RIP-1, RIP-2, HSRP, static IP routing, RIPng
Remote Management	SNMP 1, RMON 1, 2, 3, 9, Telnet, SNMP 3, 2c, HTTP, SSH-2
Authentication Method	Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features	VLAN support, QoS, ACL, DHCP server, IGMP snooping, IPv6 support, Cisco EnergyWise technology, and more
Compliant Standards	IEEE 802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.1p, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.1s

Power & Environmental Specifications

Feature	Specification
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Power Consumption (Operational)	100 Watt
Min / Max Operating Temperature	0 °C (32 °F) / 45 °C (113 °F)
Humidity Range (Operating)	10 – 85% (non-condensing)
