Supermicro SuperServer SYS-2029U-TR4 Technical Specifications

Product Overview

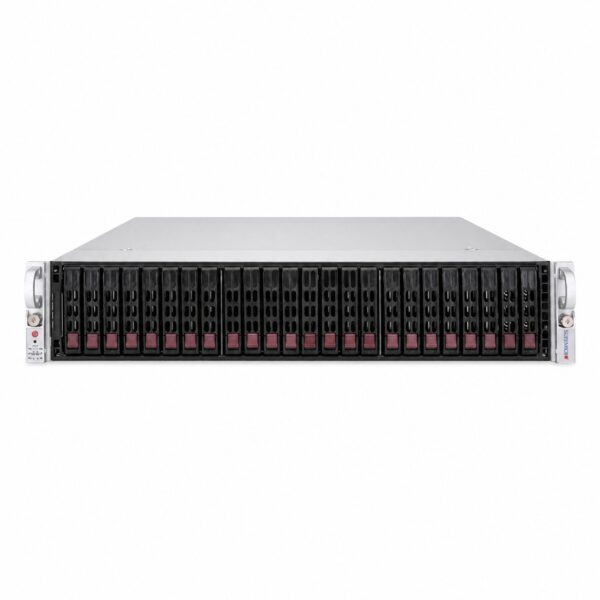

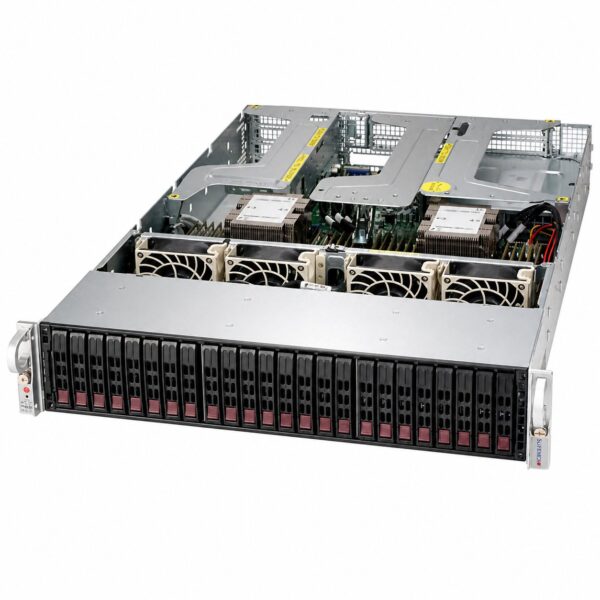

The Supermicro SuperServer SYS-2029U-TR4 is a high-density 2U Ultra dual-socket rackmount server designed for enterprise data centers, virtualization, cloud computing, high-frequency trading, and mission-critical applications requiring maximum expandability, memory capacity, and redundant power.

Key Features

• Dual Socket P (LGA 3647) supporting 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) up to 205W TDP.

• 24 DIMM Slots supporting up to 6TB DDR4-2933MHz ECC RDIMM/LRDIMM and Intel® Optane™ DC Persistent Memory.

• 24 Hot-Swap 2.5″ Drive Bays supporting SAS3/SATA3 drives.

• Flexible PCI-E Expansion: Up to 8 PCI-E 3.0 slots via Ultra Riser architecture.

• Quad-Port Gigabit Ethernet: 4 x 1GbE RJ45 ports via AOC-2UR66-i4G Ultra Riser.

• 1000W / 1600W Redundant Power Supplies with Titanium Level (96%+) efficiency.

• Integrated IPMI 2.0 with dedicated LAN, Virtual Media over LAN, and KVM-over-LAN support.

Detailed Specifications

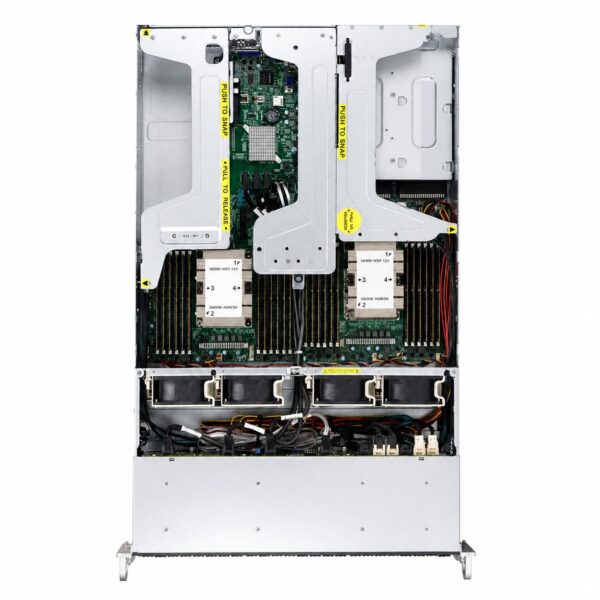

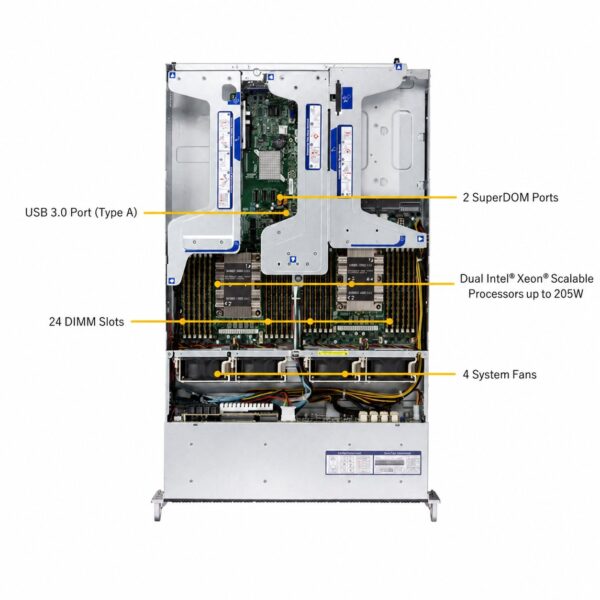

Motherboard & Processor

Component	Specification
Motherboard	Super X11DPU
Processor Architecture	Dual Socket P (LGA 3647)
Supported Processors	2nd Gen Intel® Xeon® Scalable Processors / 1st Gen Intel® Xeon® Scalable Processors
System Bus	Dual UPI up to 10.4 GT/s
Thermal Design Power (TDP)	Supports CPU TDP up to 205W
Cores / Cache	Up to 28 Cores per socket / Up to 38.5MB Cache per CPU

System Memory

Feature	Specification
Memory Capacity	24 DIMM slots; Up to 6TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
Memory Type	2933/2666/2400/2133MHz ECC DDR4 SDRAM
Persistent Memory	Supports Intel® Optane™ DC Persistent Memory (DCPM)
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors, detects double-bit errors (using ECC memory)

Drive Bays & Storage

Feature	Specification

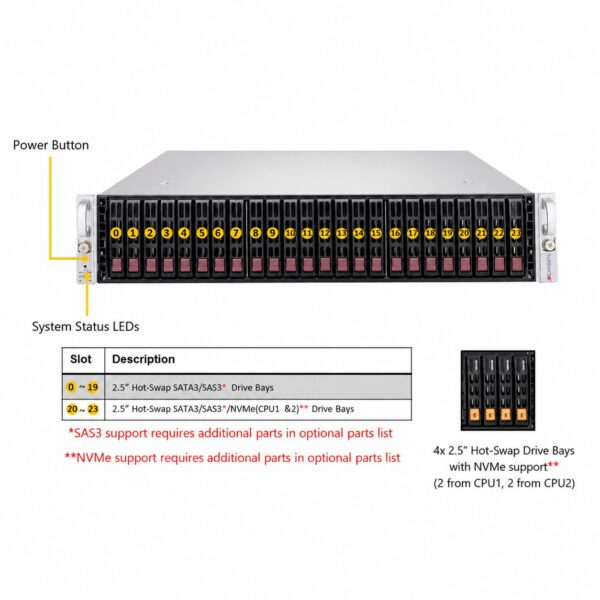

Hot-Swap Drive Bays	24 x 2.5″ Hot-swap SAS3/SATA3 drive bays
Storage Controller	Onboard SATA3 (6Gbps) via Intel® C621 chipset (RAID 0, 1, 5, 10); Optional SAS3 support via add-on HBA/RAID controller
NVMe Option	Optional support for up to 4 NVMe drive bays via optional cable kit
M.2 Support	Optional M.2 NVMe / SATA support via add-on cards

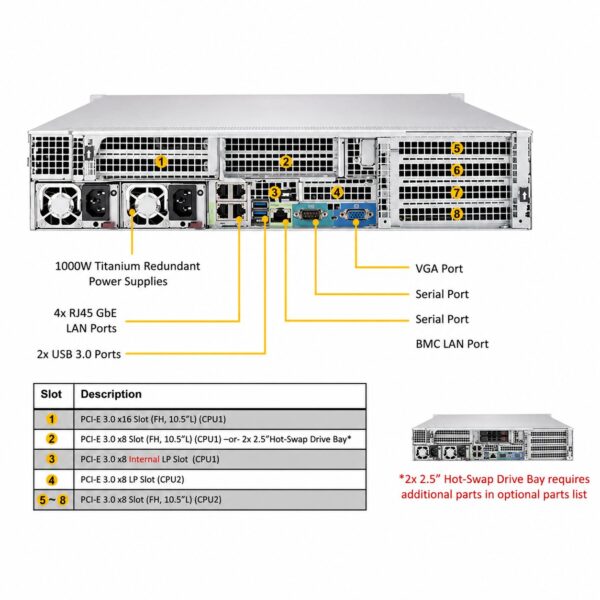

Expansion Slots (Ultra Riser Architecture)

Slot Type	Quantity & Form Factor
PCI-Express 3.0 x16	1 Full-Height, 10.5″ Length
PCI-Express 3.0 x8	5 Full-Height, 10.5″ Length
PCI-Express 3.0 x8 (LP)	1 Low-Profile
PCI-Express 3.0 x8 (Internal)	1 Internal Low-Profile (for SAS/SATA RAID or SAS HBA)

Networking & Management

Interface	Specification
Network Interfaces	4 x 1GbE RJ45 ports via AOC-2UR66-i4G (Intel® i350 controller)
Dedicated Management Port	1 x Dedicated RJ45 IPMI LAN port
IPMI Controller	ASPEED AST2500 BMC
Management Software	Supermicro Out-Of-Band (OOB) Software, Supermicro IPMI 2.0, SPM, SUM, SSM
Graphics	ASPEED AST2500 BMC VGA port

Power Supply & System Cooling

Feature	Specification
Power Supply Type	Redundant 1000W / 1600W Titanium Level (96% Efficiency) Power Supplies
AC Input	100–127V / 200–240V, 50–60Hz
System Cooling	4 x 8cm heavy-duty fans with optimal fan speed control

Physical & Environmental Specifications

Parameter	Value
Form Factor	2U Rackmount
Chassis Model	CSE-219UAC-R1K02-T / CSE-219UAC2-R1K62-T

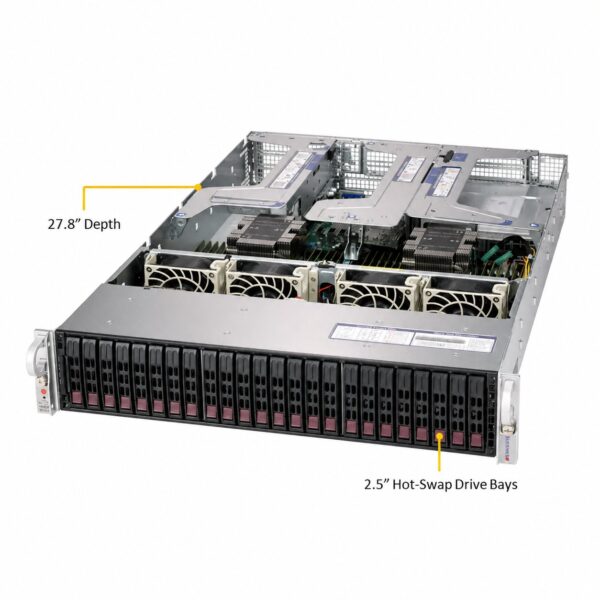

Dimensions (W x H x D)	17.2″ (437mm) x 3.5″ (89mm) x 27.76″ (705mm)
Gross Weight	Approx. 58 lbs (26.3 kg)
Net Weight	Approx. 34 lbs (15.4 kg)
Operating Temperature	10°C to 35°C (50°F to 95°F)
Non-Operating Temperature	-40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity	8% to 90% (non-condensing)
