HP Z2 G4 Workstation

HP Z2 G4 Workstation Specifications Overview

1. Form Factors

The HP Z2 G4 comes in three distinct form factors:

• Tower (TWR): Full-sized expansion capacity, supporting high-end GPUs.

• Small Form Factor (SFF): Compact footprint with balanced expansion.

• Mini: Ultra-compact form factor designed for space-constrained environments.

2. Core Architecture & Hardware

Feature	Technical Specifications
Chipset	Intel® C246 Chipset
Processor Family	Intel® Xeon® E-2100 / E-2200 series (up to 8 Cores) 8th & 9th Gen Intel® Core™ i3 / i5 / i7 / i9 processors
Memory	Slots: 4 DIMM slots (2 SODIMM on Mini model) Max Capacity: Up to 64 GB or 128 GB (configuration dependent) Type: DDR4-2666 MT/s (ECC / Non-ECC supported)
Graphics Options	Integrated: Intel® UHD Graphics 630 / P630 Discrete (Entry/Mid 3D): NVIDIA® Quadro® P400 / P600 / P1000 / P2000 / P4000 AMD Radeon™ Pro WX 3100 / WX 4100
Storage & Controllers	Integrated SATA 6 Gb/s (RAID 0, 1) Supported Drives: • M.2 NVMe PCIe SSD (HP Z Turbo Drive G2 up to 1TB/2TB) • 2.5″ / 3.5″ SATA HDD (7200 rpm, up to 6TB) • SATA SSDs (up to 2TB)

3. I/O Ports & Connectivity

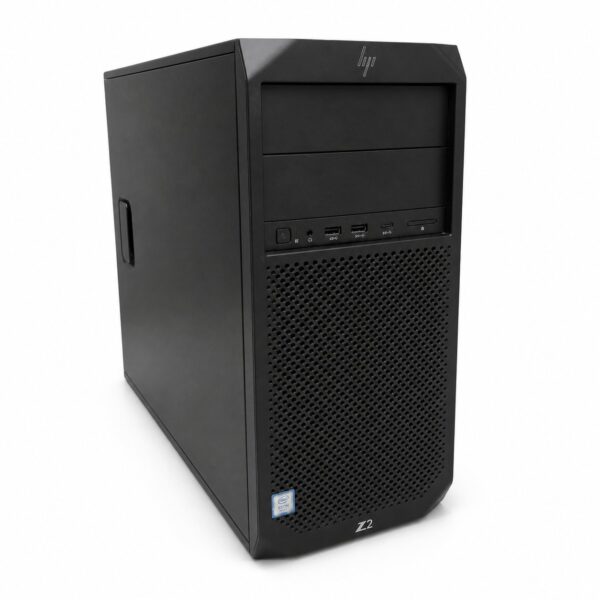

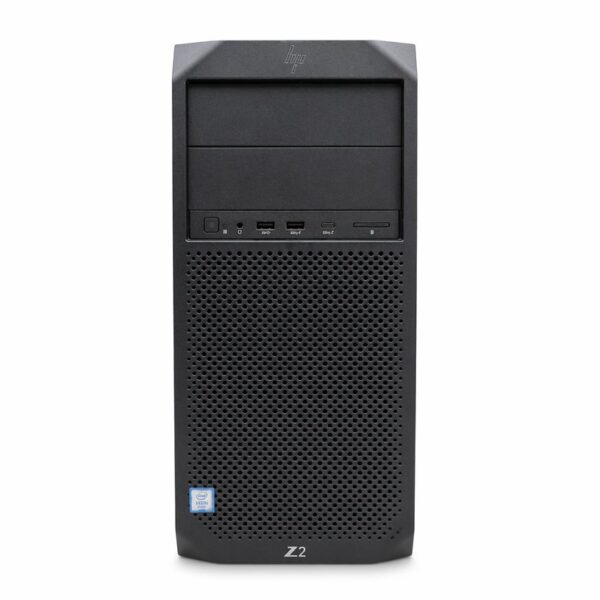

Front / Side Ports

• 2× USB 3.0 Type-A (1 charging port)

• 1× USB 3.1 Gen 2 Type-C™ (charging port)

• 1× Headphone/Microphone Combo Audio Jack

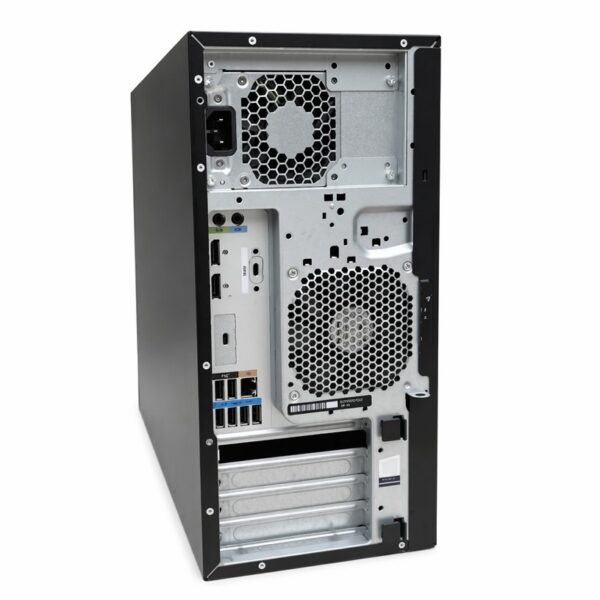

Rear Ports

• 2× DisplayPort™ 1.2

• 4× USB 3.0 Type-A

• 2× USB 2.0 Type-A

• 1× RJ-45 Gigabit Ethernet Port (Intel® I219-LM)

• 1× Audio In / 1× Audio Out

• Optional Flexible I/O Module: VGA / HDMI / DisplayPort™ / 2nd RJ-45 / Thunderbolt™ 3.0

4. Expansion Slots (Tower / SFF)

• PCIe Slots:

  • 1× PCIe Gen 3 x16

  • 1× PCIe Gen 3 x4 (x16 mechanical)

  • 2× PCIe Gen 3 x1 (open-ended connector)

• Storage Slots:

  • 2× M.2 2280 PCIe 3 x4 (dedicated for NVMe SSDs)

  • 1× M.2 2230 (for WLAN/Bluetooth card)

5. Management, Security & Operating System

• Operating System Support: Windows 10 Pro 64-bit / Windows 10 Pro for Workstations / Ubuntu® / Linux® Ready

• Security Management:

  • HP BIOSphere Gen4

  • HP Sure Click / HP Sure Start Gen4

  • TPM 2.0 Embedded Security Chip

  • HP Client Security Suite Gen 4

  • Solenoid Hood Lock & Sensor support

• Power Supply Options: 250W (92% efficiency), 500W (90% efficiency), or 650W (90% efficiency) depending on GPU configuration.

6. Physical Dimensions & Weight (Tower Example)

• Dimensions (H x W x D): 356 mm × 169 mm × 435 mm (14.0 in × 6.7 in × 17.1 in)

• Weight: Starting at 7.0 kg (15.4 lbs)
