Huawei OceanStor 5600 V5
OceanStor 5600 V5
Enterprise stock · tested · export documentation available
Product Overview

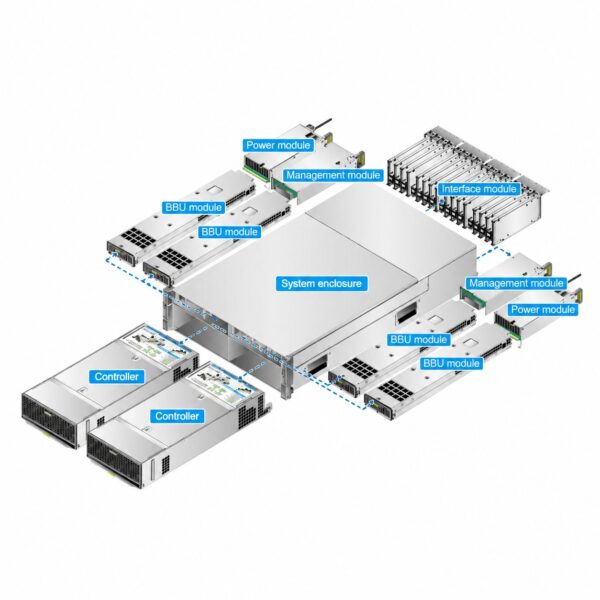

The Huawei OceanStor 5600 V5 is a mid-range hybrid flash storage system designed for enterprise-level data services . It is part of the OceanStor 5000 V5 series and is built on a cloud-ready operating system with flash-optimized performance . This unified storage system concurrently supports SAN and NAS protocols, making it suitable for a wide range of applications, including large-database OLTP/OLAP, file sharing, and cloud computing . It features a multi-controller architecture for high availability and scalability, and integrates intelligent management software to enhance resource efficiency and data protection .
Product Specifications
| Category | Specification |
|---|---|
| Model | OceanStor 5600 V5 |
| Product Type | Hybrid Flash Storage System |
| System Cache | 256 GB to 2048 GB (expands with the number of controllers) |
| Processors | Multi-core processors |
| Maximum Number of Controllers | 16 (8 according to some sources) |

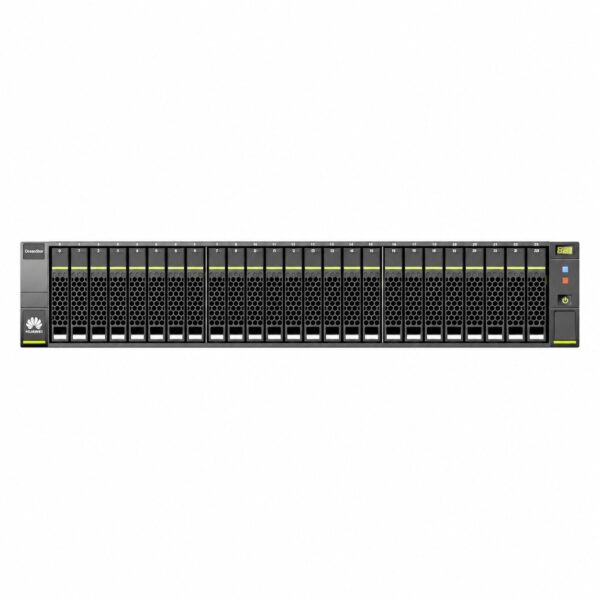

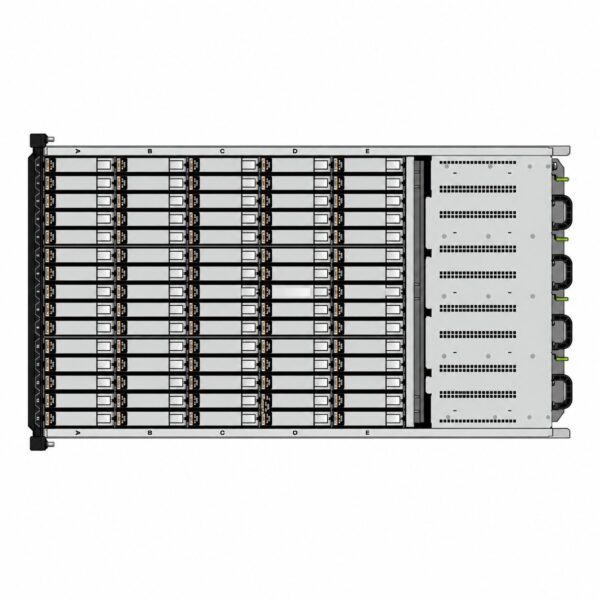

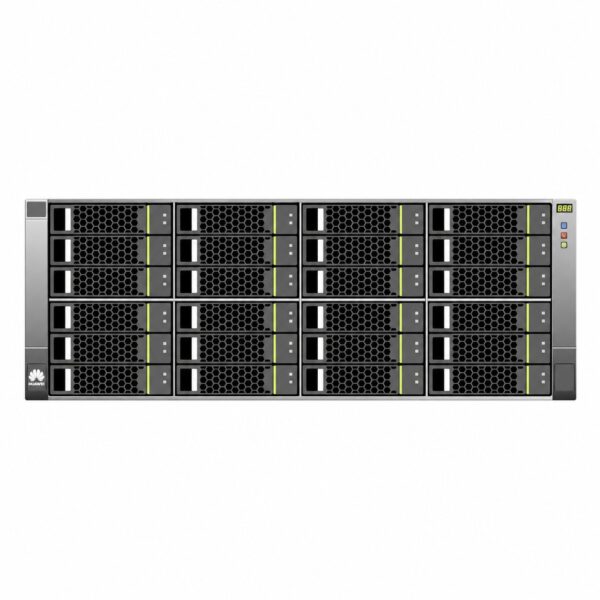

| Drive Enclosures | 3U Control Enclosure; 2U, 4U, and 4U high-density disk enclosures |
| Maximum Disk Drives | 1600 (with dual controllers) |
| Maximum LUNs | 16,384 |
| Maximum Snapshots | 8,192 |
| Maximum Single File Size | 256 TB |
| Supported Storage Protocols | FC, iSCSI, NFS, CIFS, HTTP, FTP |
| Front-End Port Types | 8/16/32 Gbit/s FC, 1/10/25/40/100 Gbit/s Ethernet |
| Back-End Port Type | SAS 3.0 (single port 4 x 12 Gbit/s) |
| RAID Levels Supported | 0, 1, 5, 6, 10, 50 |
| Supported Disk Types | SAS, NL-SAS, SSD |
| Data Protection Software | HyperSnap (snapshot), HyperClone (clone), HyperCopy (copy), HyperMirror (volume mirroring), HyperMetro (active-active arrays), HyperReplication (remote replication), HyperVault (all-in-one backup) |
| Resource Efficiency Software | SmartMigration (LUN migration), SmartVirtualization (heterogeneous virtualization), SmartMulti-tenant, SmartQuota, SmartDedupe, SmartCompression, SmartThin (thin provisioning), SmartTier (data tiering), SmartMotion (data motion), SmartErase (data destruction) |
| Management Software | Host multipathing, disaster recovery management, single-device management, centralized O&M management, remote maintenance management |
| Physical Dimensions (Control Enclosure) | 130.5 x 447 x 750 mm (3U) |
| Weight (Control Enclosure) | ≤ 50 kg |
| Power Supply | AC: 200V-240V; DC: 192V-288V, -48V to -60V |
| Operating Temperature | 5°C to 40°C (below 1800m altitude) |
| Operating Humidity | 5% RH to 90% RH |
