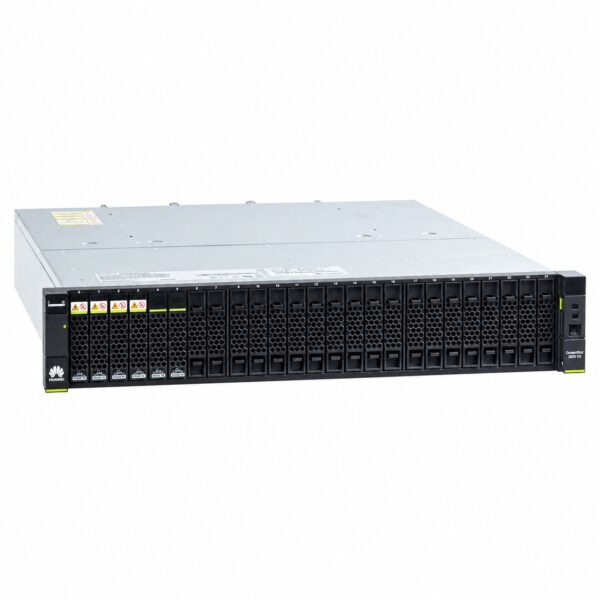

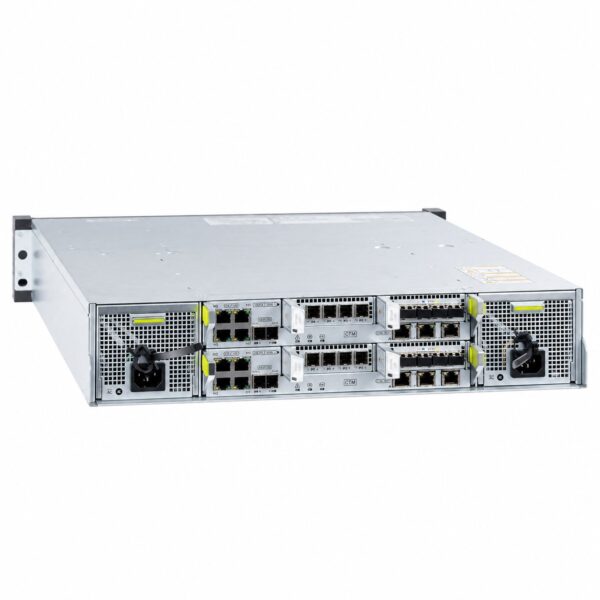

Huawei OceanStor 2600 V3 — Product Resource List

1. Product Overview

The Huawei OceanStor 2600 V3 is an entry-level, flash-optimized storage system designed for enterprise-class applications in the cloud era. It is engineered to deliver high performance with sub-millisecond latency when configured with all-flash storage, while also offering the flexibility to support hybrid configurations.

The system’s core design philosophy centers on multi-level convergence. It integrates SAN (Storage Area Network) and NAS (Network-Attached Storage) capabilities, supports mixed use of HDDs and SSDs, consolidates primary and backup storage functions, and enables the integration of heterogeneous third-party storage devices. This converged architecture allows for on-demand resource provisioning and smooth evolution toward cloud-based infrastructure.

For business continuity, the OceanStor 2600 V3 provides the HyperMetro active-active storage solution, which ensures continuous data availability and automatic failover between sites. The system is scalable, supporting up to 8 controllers and 256 GB of system cache, and employs high-speed interconnect technologies including 16 Gbit/s Fibre Channel, PCIe 3.0 buses, and 12 Gbit/s SAS disk ports.

---

2. Specifications

---

3. Software Features

3.1 Data Protection

• HyperSnap — Snapshot

• HyperCopy — LUN Copy

• HyperClone — Clone

• HyperMirror — Volume Mirror

• HyperReplication — Remote Replication

• HyperMetro — Active-Active Storage Arrays

• HyperLock — WORM (Write Once Read Many)

• HyperVault — Integrated Backup

3.2 Resource Efficiency

• SmartQoS — Intelligent QoS Control

• SmartPartition — Intelligent Partitioning

• SmartTier — Intelligent Storage Tiering

• SmartCache — Intelligent SSD Caching

• SmartThin — Intelligent Thin Provisioning

• SmartMotion — Intelligent Data Migration

• SmartMigration — LUN Migration

• SmartMulti-Tenant — Multi-Tenant Support

• SmartCompression — Online Compression

• SmartDedupe — Online Deduplication

• SmartQuota — Quota Management

• SmartErase — Data Destruction

3.3 Management & Virtualization

• UltraPath — Multipathing Management

• eService / Cloud Service — Remote Maintenance and Management

• BCManager — Disaster Recovery Management Software

• DeviceManager — Single-Device Management

• eSight — Multi-Device Centralized Management

• SmartConfig — Easy Configuration Tool

• Heterogeneous Virtualization — Consolidates storage resources from mainstream vendors

• Block Virtualization — Balanced data distribution and rapid fault recovery

3.4 Virtualization Environment Support

• VMware, FusionSphere, XenServer, Hyper-V

• VMware VAAI, VASA, SRM integration

• vSphere and vCenter integration

---

4. Key Documents & Resources
