Lenovo ThinkSystem SR680a V3 Rack Server — Product Overview & Specifications
Product Overview
The Lenovo ThinkSystem SR680a V3 is a powerful 8U rack server purpose-built for the most demanding AI and high-performance computing (HPC) workloads. It is designed fully in-house by Lenovo to deliver best-in-class modularity, thermal performance, and reliability.
The system is built around two 5th Gen Intel Xeon Scalable processors and supports up to eight high-performance NVIDIA GPUs with high-speed interconnects. This air-cooled server is engineered as an optimal platform for generative AI, featuring advanced GPU-to-GPU communications and high-speed PCIe 5.0 connectivity between GPUs, processors, and networking components.
The SR680a V3 delivers massive computational performance for AI workloads including large language model (LLM) training and inference, machine learning, modeling, simulation, rendering, financial technology, and scientific research. With support for NVIDIA H100, H200, and B200 GPUs, it provides the accelerated computing density required for elastic data centers and production AI deployments.
Technical Specifications
| Component | Specification |
|---|---|
| Form Factor | 8U rack-mounted server |
| Processor | Two 5th Gen Intel Xeon Scalable processors (formerly codenamed “Emerald Rapids”); up to 64 cores per socket; LGA 4677 socket; TDP up to 350W; up to 3 UPI links at 20 GT/s |
| Memory | 32 DDR5 DIMM slots (16 per processor); 8 memory channels per processor; 2 DIMMs per channel; supports Lenovo TruDDR5 5600MHz RDIMMs (64GB, 96GB, 128GB); maximum capacity 4TB; operating speed 5600 MT/s at 1 DPC, 4400 MT/s at 2 DPC |

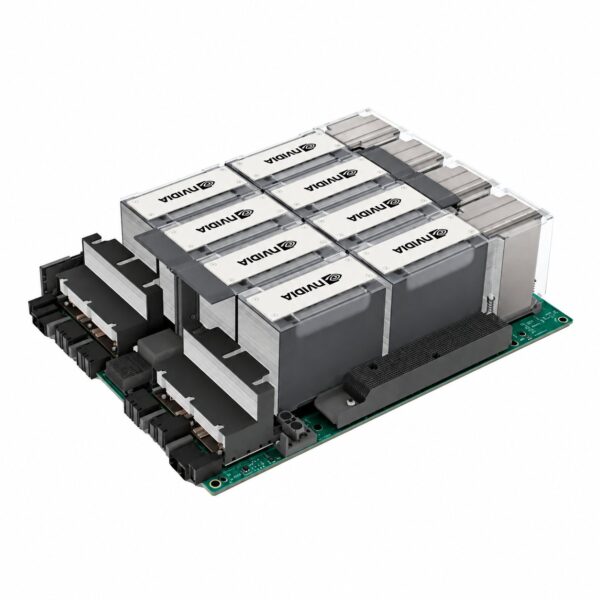

| GPU | Eight NVIDIA SXM5 GPUs with high-speed interconnect; options include: 8x NVIDIA H100 (80GB HBM3 each), 8x NVIDIA H200 (141GB HBM3 each), or NVIDIA B200 GPUs; utilizes 4x NVIDIA NV Switches for up to 14.4TB/s bi-directional GPU-to-GPU bandwidth; NVIDIA NVLink interconnect at up to 1.8TB/s |
| Storage — Front Drives | Up to 16x 2.5-inch hot-swap NVMe SSDs (PCIe 5.0) |
| Storage — Boot Drives | Up to 2x M.2 NVMe drives (non-hot-swap); capacities 960GB or 1.92TB; 22110 form factor; onboard Intel VROC RAID support (RAID 0/1 requires activation key) |
| PCIe Expansion | Up to 10x PCIe Gen5 x16 FHHL slots: 8x front-accessible slots connected to PCIe switch for GPU complex connectivity (GPU Direct support); 2x rear slots connected to CPU |
| Network Adapters | Supports 8x NDR 400Gb/s InfiniBand adapters in front-accessible PCIe 5.0 x16 slots with GPU Direct connections; supports NVIDIA BlueField-3 DPU adapter; rear FHHL PCIe Ethernet adapter support |
| RAID | Onboard Intel VROC NVMe RAID for M.2 boot drives; Intel VROC Standard supports RAID 0 and 1 (activation key required) |
| Cooling | Air-cooled with 15x 80mm x 56mm dual-rotor hot-swap fans; N+1 fan redundancy; thermal headroom for future higher-power GPUs |
| Power | Up to 8x hot-swap power supplies; 2600W Titanium efficiency (200-240 Vac); full N+N redundancy without throttling; all power supplies must have identical rating |
| Management | Lenovo XClarity Controller 2 (XCC2) — consolidates service processor control, monitoring, video controller, and remote presence into a single system board chip; optional XCC Platinum upgrade available |

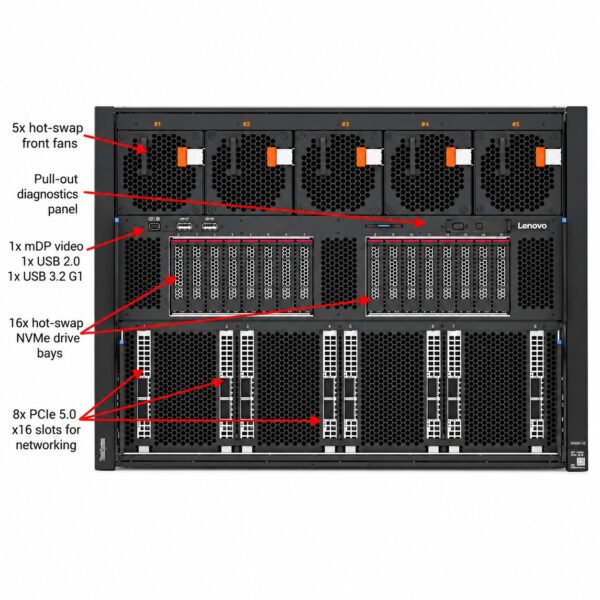

| Front I/O | 1x USB 3.1 Gen 1 (5 Gbps), 1x USB 2.0 with XCC management, 1x Mini DisplayPort, integrated diagnostics panel, power button/LED, network activity LED, system ID button/LED, system error LED |

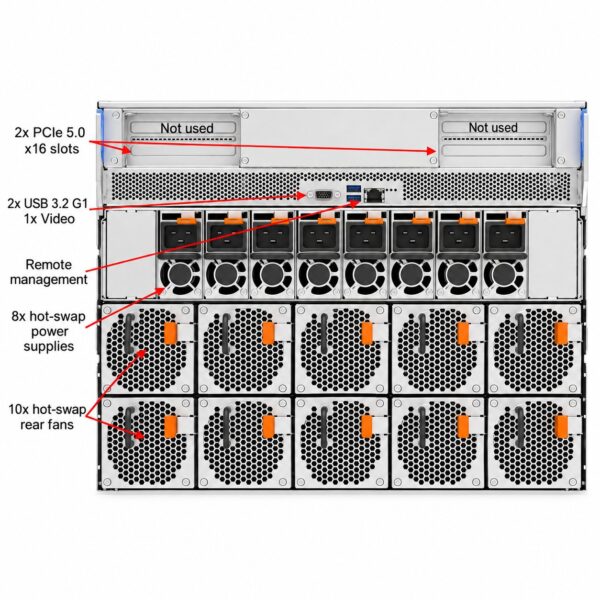

| Rear I/O | 1x XCC system management port (10/100/1000 Mbps RJ-45), 2x USB 3.1 Gen 1 (5 Gbps), 1x VGA (max resolution 1920×1200 at 60Hz) |
| Operating Systems | Red Hat Enterprise Linux, Canonical Ubuntu, VMware ESXi |
