Huawei FusionServer G6550 V8
G6550 V8
Enterprise stock · tested · export documentation available
Huawei FusionServer G6550 V8 – Product Documentation
Product Overview
The FusionServer G6550 V8 is a next-generation flagship air-cooled AI server purpose-built for large-scale model training and inference workloads . Designed as a 6U rackmount system, it delivers exceptional performance by combining 5th Gen AMD EPYC™ 9005 Series processors with support for up to ten dual-width GPUs, making it an ideal platform for AI training, AI inference, High-Performance Computing (HPC), image/video analysis, and database acceleration .

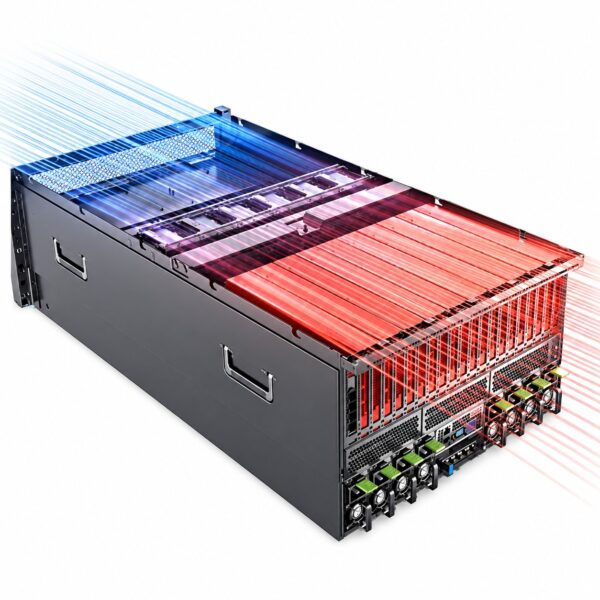

The G6550 V8 features a modular architecture with high cohesion and low coupling among modules, enabling flexible reconfiguration and independent evolution . It supports flexible topology options—including pass-through and switch configurations—and accommodates GPUs with a maximum TDP of up to 600W . With advanced thermal management leveraging MPC algorithms for fan power optimization, robust redundancy across fans and power supplies, and comprehensive out-of-band management through the integrated iBMC, the G6550 V8 delivers the reliability, scalability, and operational efficiency required for demanding enterprise and cloud AI deployments .
Product Specifications
| Category | Specification |
|---|---|
| Form Factor | 6U AI server |
| Processors | 2 x 5th Gen AMD EPYC™ 9005 Series processors; up to 500 W TDP per processor; max 192 cores and 384 threads per processor; up to 5 GHz max boost clock; 512 MB L3 cache |
| Memory | 24 x DDR5 DIMM slots; up to 6400 MT/s; maximum 3 TB total capacity (using 128 GB DIMMs) |
| GPU Support | Up to 10 x dual-width GPUs; supports multi-form GPUs with max TDP of 600 W |
| Local Storage | Up to 10 x 2.5″ SAS/SATA/NVMe drives; supports dual M.2 SSDs |
| RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, 60; supercapacitor for cache data protection; RAID level migration, drive roaming, self-diagnosis, remote web-based configuration |
| Network | 1 x OCP 3.0 NIC; additional networking expansion options available |
| PCIe Expansion | Pass-through model: Up to 11 x PCIe 5.0 slots; Switch model: Up to 15 x PCIe 5.0 slots |
| Cooling Fans | GPU: 12 or 18 x 6056++ fans with N+1 redundancy; CPU: 6 x 6056++ fans with N+1 redundancy |
| Power Supply | 8 x 3200 W single-input or dual-input CRPS units; supports N+N or N+1 redundancy |
| Management | iBMC chip with dedicated management GE port; supports Redfish, SNMP, IPMI 2.0; HTML5/VNC KVM remote management; out-of-band monitoring, diagnosis, configuration, and remote control; optional FusionDirector for advanced lifecycle management |
| Security | Power-on password; administrator password; TPM 2.0; security bezel; secure boot (chip-level Root of Trust); chassis intrusion detection; BIOS firmware digital signature update; flash security protection |
| Operating Temperature | 5°C to 35°C (41°F to 95°F); compliant with ASHRAE Class A1/A2 |
| Certifications | CE, UL, CCC, FCC, VCCI, RoHS |
| Installation Suite | L-shaped guide rails; adjustable guide rails; holding rails |
| Dimensions (H x W x D) | 263.9 mm x 447 mm x 850 mm (10.39 in x 17.6 in x 33.46 in) |
| Supported OS | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, Oracle, Ubuntu, openEuler |
| Power Efficiency | 80 PLUS Platinum/Titanium PSU options; efficiency up to 96% at 50% load |
| Serviceability | iBMC direct connect management port on panel; UID/Healthy LED indicator; fault diagnosis LED; iBMC Web interface for key component status |
