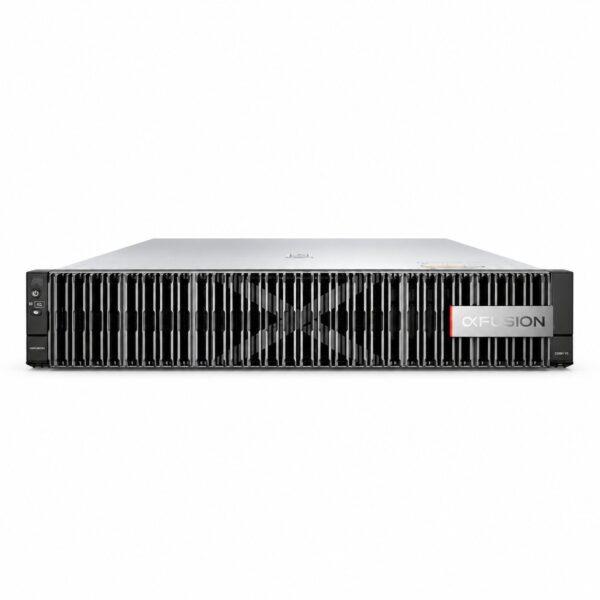

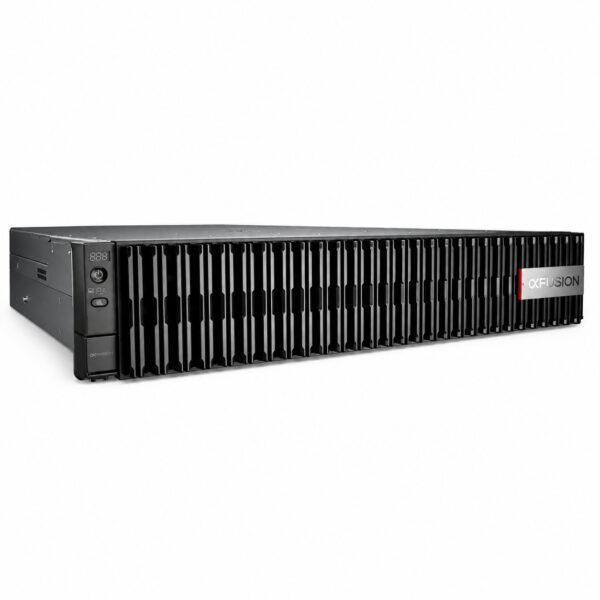

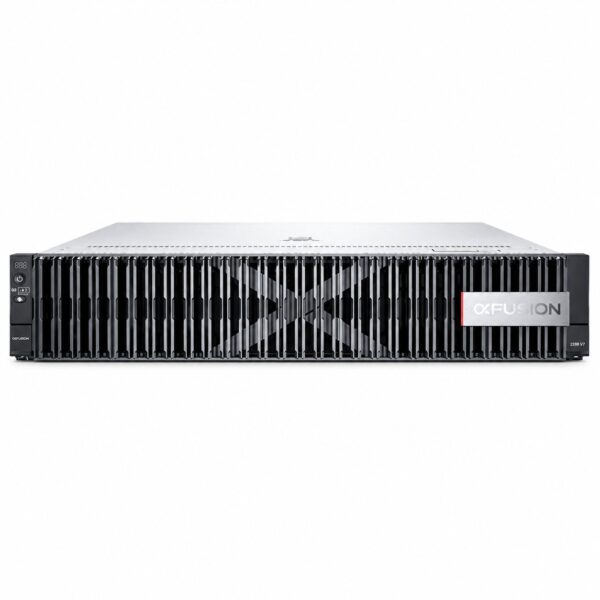

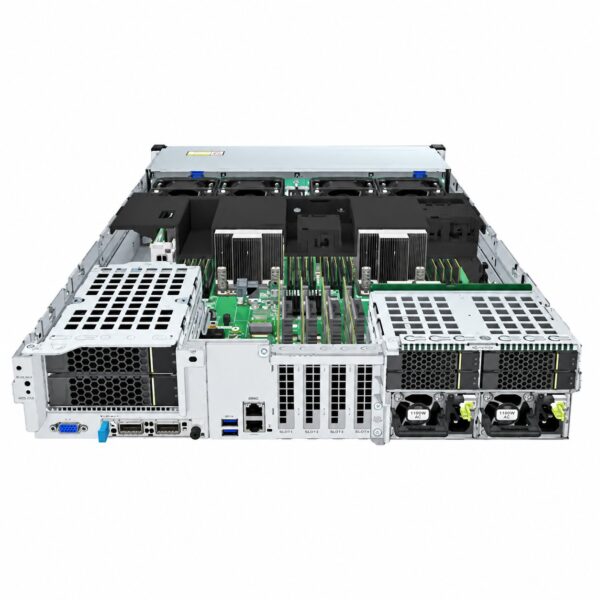

Huawei FusionServer 2288 V7
2288 V7
Enterprise stock · tested · export documentation available
Huawei FusionServer 2288 V7 Product Documentation
Product Overview
The Huawei FusionServer 2288 V7 is a new-generation 2U 2-socket rack server designed for Internet, Internet Data Center (IDC), cloud computing, enterprise business, and telecommunications applications . It is ideally suited for IT core services, virtualization, scientific computing, distributed storage, big data processing, and other complex workloads .

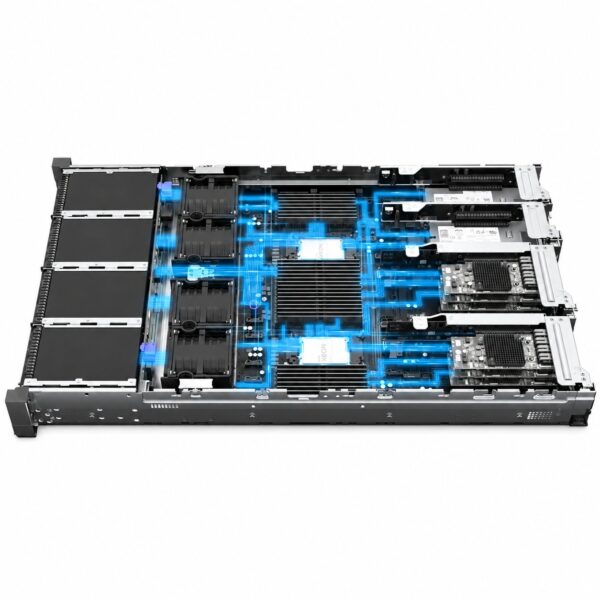

The 2288 V7 features low power consumption, high scalability, high reliability, easy deployment, and simplified management . Key innovations include advanced heat dissipation technology that provides 50% better cooling capability than standard solutions, and AI-powered memory fault self-healing that reduces system downtime by up to 66% . The server incorporates intelligent energy-saving algorithms that deliver up to 8% better power efficiency compared to industry averages, with power conversion technology that reduces power loss by 12.5% .
Product Specifications
| Category | Specification |
|---|---|
| Form Factor | 2U rack server |
| Processors | 1 or 2 x 4th Gen Intel® Xeon® Scalable processors (Sapphire Rapids) or 5th Gen Intel® Xeon® Scalable processors (Emerald Rapids); supports up to 385W TDP per processor; up to 64 cores and 128 threads per processor; up to 4.2 GHz turbo frequency; 4x 20 GT/s UPI links between processors |
| Chipset | Emmitsburg PCH |
| Memory | 16 x DDR5 DIMM slots; up to 4800 MT/s speed |
| Max Memory Capacity | Up to 4 TB (calculated using 256 GB per DIMM) |

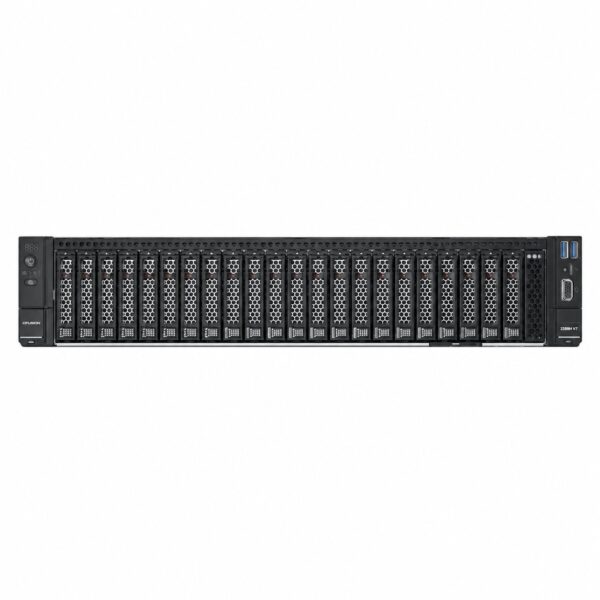

| Local Storage Options | Hot-swappable drive configurations: • 8–31 x 2.5″ SAS/SATA drives/SSDs • 10–14 x 3.5″ SAS/SATA drives • 4 x NVMe SSDs Flash storage: • Dual M.2 SSDs |
| RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, or 60; supercapacitors for cache data protection against power failures; supports RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| Network Interfaces | • 1 x FlexI/O slot dedicated for 1 x OCP 3.0 NIC (upgradable to PCIe 4.0 x16 bandwidth) • Supports GE/10GE/25GE/100GE network cards |
| PCIe Expansion | Up to 8 PCIe slots total, including: • 1 x FlexI/O slot for OCP 3.0 NIC • 1 x dedicated slot for RAID controller card • 6 x standard PCIe slots |
| GPU Accelerator Cards | Up to 4 x 75W half-height, half-length GPU cards |
| Cooling | 4 x hot-swappable counter-rotating fan modules in N+1 redundancy |
| Power Supply Units | 900W / 1200W / 1500W / 2000W / 3000W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy |
| Management | • iBMC chip with dedicated management GE port • Supports Redfish, SNMP, IPMI 2.0 standard interfaces • HTML5/VNC KVM-based remote management • Optional FusionDirector management software for full lifecycle intelligent automation |
| Security Features | Power-on password, administrator password, TPM 2.0, secure boot, tamper detection, and RoT-based secure boot |
| Supported Operating Systems | FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, openEuler |
| Chassis Dimensions (H x W x D) | 86.1 mm x 447 mm x 798 mm |
| Operating Temperature | 5°C to 35°C (41°F to 95°F), compliant with ASHRAE Class A1/A2/A3 |
