Dell PowerEdge T360 Tower Server — Product Data Sheet
Product Overview
The Dell PowerEdge T360 is a single-socket 4.5U tower server designed for small businesses, remote offices, and branch locations that require a balance of versatility, affordability, and processing power. It supports the latest Intel Xeon E-2400 series processors, up to 128GB of DDR5 ECC UDIMM memory, and flexible storage configurations including up to 8 x 3.5″ SAS/SATA drives or a mix of HDD/SSD and NVMe drives. The T360 also features PCIe Gen5 expansion capability, iDRAC9 management, and a range of security features making it suitable for general-purpose workloads, file/print serving, and light virtualization.
Specifications
Processor
| Component | Details |
|---|---|
| Processor Type | Intel Xeon E-2400 Series / Intel Pentium G7400/G7400T |
| Maximum Cores | Up to 8 cores (Xeon E-2400) / 2 cores (Pentium) |
| Number of Processors | 1 |
Memory
| Component | Details |
|---|---|
| Memory Type | DDR5 ECC UDIMM |
| Memory Slots | 4 x 288-pin DIMM slots |
| Maximum Capacity | 128 GB |
| DIMM Capacities | 16 GB (single rank) / 32 GB (dual rank) |
| Memory Speed | Up to 4400 MT/s |
| Hot-Pluggable | No |
Storage
| Component | Details |
|---|---|
| Front Bays | Up to 8 x 3.5″ SAS/SATA HDD/SSD (max 128 TB) |
| Up to 4 x 3.5″ SAS/SATA HDD/SSD (max 64 TB) | |
| Up to 8 x 2.5″ SAS/SATA HDD/SSD with 3.5″ to 2.5″ adapter (max 61.44 TB) | |
| Up to 6 x 3.5″ SAS/SATA + 2 x 2.5″ NVMe (max 111.36 TB) | |
| Internal Boot | Boot Optimized Storage Subsystem (BOSS-N1): HWRAID with 2 x M.2 NVMe SSDs |
| Storage Controllers (Internal) | PERC H355 Adapter, PERC H755 Adapter, HBA355i Adapter |
| Storage Controllers (External) | HBA355e Adapter |
| Software RAID | S160 |
Note: NVMe drives do not support S160 or hardware RAID configurations.
PCIe Expansion
| Slot | Details |
|---|---|
| Slot 1 | x8 Gen4, full height, half length |
| Slot 2 | x16 Gen5, full height, half length |
| Slot 3 | x1 Gen4, full height, half length |
| Slot 4 | (Refer to Dell documentation for full specifications) |
| Total PCIe Slots | Up to 4 |
Network Options
| Component | Details |
|---|---|
| LOM | 2 x 1 GbE LOM |
| Optional NICs | Broadcom 5720 1 GbE, Broadcom 5719 1 GbE, Broadcom 57414 10/25 GbE, Broadcom 57416 10 GbE, Intel 350 1 GbE, Intel X710-T2L 10 GbE, Intel X710-T4L 10 GbE, Intel E810-XXV 10/25 GbE |
Power Supplies
| Option | Details |
|---|---|
| 450 W | Platinum, 100–240 V AC, cabled |
| 600 W | Platinum, 100–240 V AC or 240 V DC, hot-swap redundant |
| 700 W | Titanium, 200–240 V AC or 240 V DC, hot-swap redundant |
GPU Support
| Component | Details |
|---|---|
| GPU | 1 x single-width 60 W GPU (maximum) |
| Note | No additional qualified GPU options at this time |
Chipset
| Component | Details |
|---|---|
| Chipset | Intel C262 |
Management
| Component | Details |
|---|---|
| Embedded | iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module |
| Consoles | OpenManage Enterprise, OpenManage Power Manager Plug-in, OpenManage Service Plug-in, OpenManage Update Manager Plug-in, CloudIQ for PowerEdge, OpenManage Enterprise Integration for VMware vCenter, OpenManage Integration for Microsoft System Center |
| Mobility | OpenManage Mobile |
| Tools | Dell Repository Manager, Dell System Update, Enterprise Catalogs, IPMI, RACADM CLI |
Security
| Feature | Details |
|---|---|
| Firmware | Cryptographically signed firmware |
| Data Protection | Data-at-rest encryption (SEDs with local or external key management) |
| Boot Security | Secure Boot, Secured Component Verification |
| System Security | Secure Erase, Secured-core server, Silicon Root of Trust, System Lockdown (requires iDRAC9 Enterprise or Datacenter) |
| TPM | TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 NationZ (China) |
Ports
| Location | Ports |
|---|---|

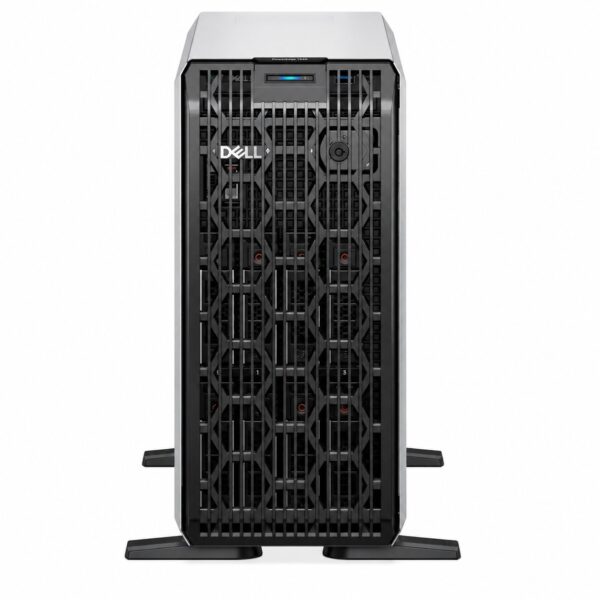

| Front | 1 x iDRAC Direct (Micro-AB USB), 1 x USB 3.2 Gen 1 |

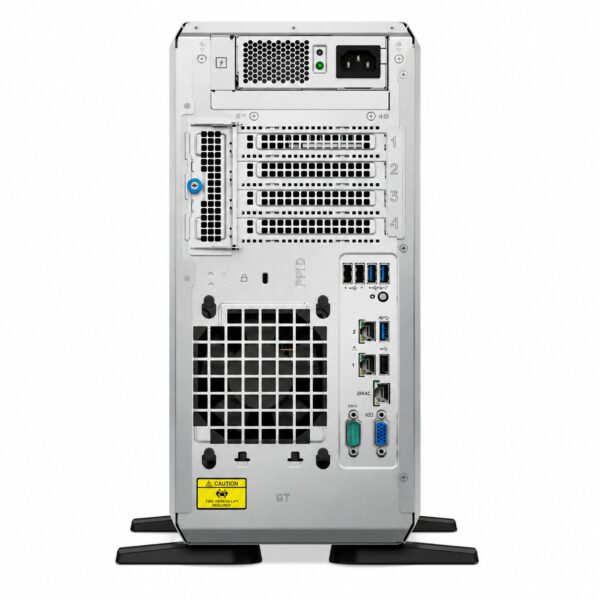

| Rear | 1 x dedicated iDRAC Ethernet, 3 x USB 2.0, 3 x USB 3.2 Gen 1, 1 x Serial, 1 x VGA, 2 x Ethernet |
| Internal | 1 x USB 3.2 Gen 1 |
Chassis & Dimensions
| Component | Details |
|---|---|
| Form Factor | 4.5U Tower Server |
| Height | 382.5 mm (15.06″) with feet / 369.5 mm (14.55″) without feet |
| Width | 175.0 mm (6.89″) |
| Depth | 579.72 mm (22.82″) with bezel / 562.12 mm (22.13″) without bezel |
| Maximum Weight | 25.10 kg (55.34 lb) |
| Fans | Up to 2 fans |
