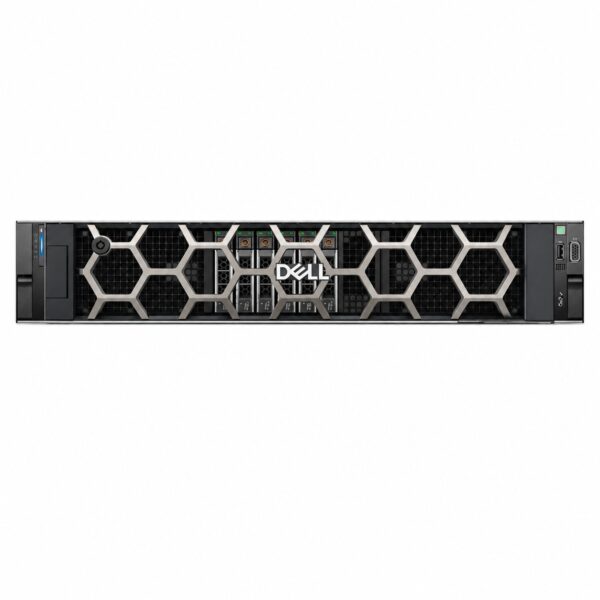

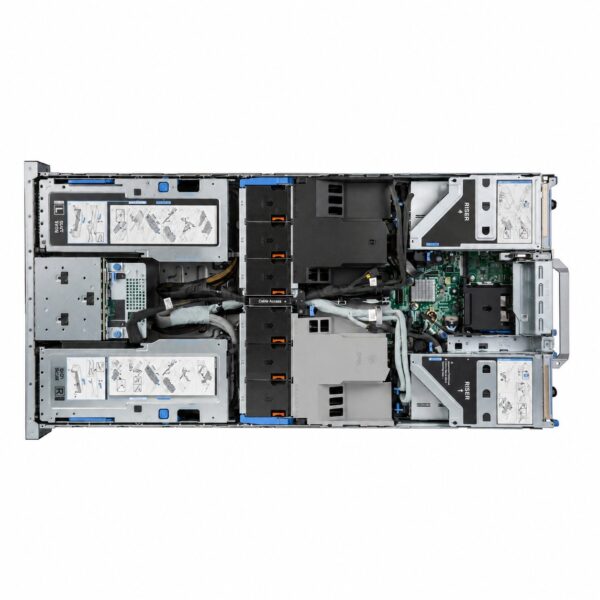

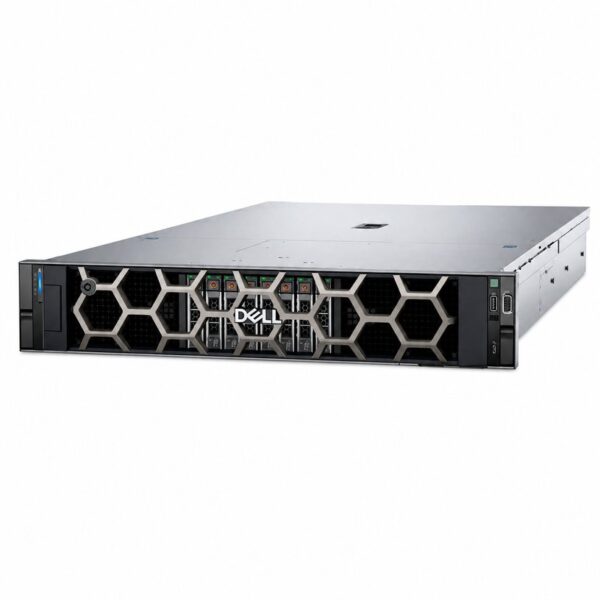

Dell PowerEdge R760xa Rack Server
Dell PowerEdge R760xa Rack Server
Enterprise stock · tested · export documentation available
Dell PowerEdge R760xa Rack Server Product Datasheet
Product Overview
The Dell PowerEdge R760xa is a 2U air-cooled rack server engineered to deliver powerful and scalable performance for GPU-intensive workloads. It is designed for a wide range of applications including AI-ML/DL training and inferencing, large language model operations, advanced analytics, and VDI workloads. The platform supports up to two 4th or 5th Generation Intel Xeon Scalable processors with high core counts, making it well-suited for compute-intensive environments. With support for up to 32 DDR5 DIMM slots and extensive PCIe 5.0 expansion capabilities, the R760xa provides a flexible and high-performance foundation for accelerated computing.
Product Specifications
| Feature | Specification |
|---|---|
| Form Factor | 2U Rack Server |
| Processor | Up to two 4th Generation Intel Xeon Scalable processors, up to 56 cores per processor, with optional Intel QuickAssist Technology Up to two 5th Generation Intel Xeon Scalable processors, up to 64 cores per processor, with optional Intel QuickAssist Technology |
| Chipset | Intel C741 |
| Memory | 32 DDR5 DIMM slots Memory Type: RDIMM Maximum Capacity: 8 TB (with 256 GB RDIMMs) Speed: Up to 4800 MT/s (4th Gen Intel Xeon), up to 5600 MT/s (5th Gen Intel Xeon) |

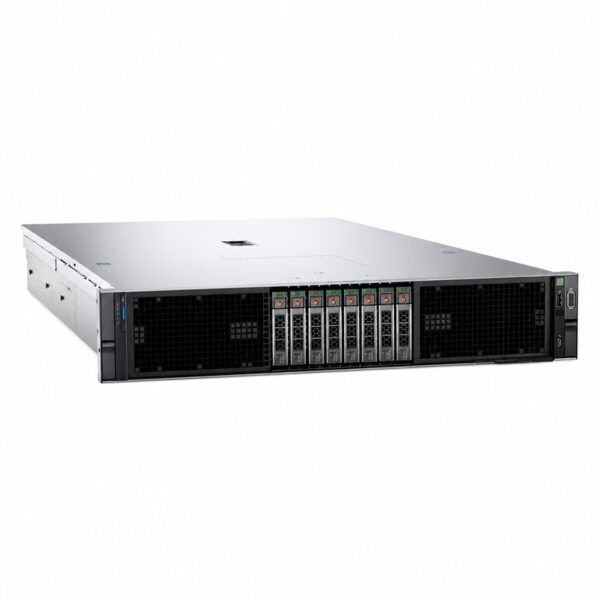

| Storage – Front Bays | Up to 8 x 2.5-inch hot-swappable SAS/SATA/NVMe drives, maximum 122.88 TB Up to 6 x 2.5-inch hot-swappable NVMe drives, maximum 92.16 TB 6 x E3.S Gen5 NVMe drives |
| Storage Controllers | Internal: PERC H965i, HBA465i, PERC H755, PERC H755N, PERC H355, HBA355i External: HBA465e, HBA355e, H965e Software RAID: S160 Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID with 2 x M.2 NVMe SSDs |
| PCIe Expansion | Up to 12 PCIe slots (Gen5) Rear: Up to 4 x PCIe Gen5 x16 (full height, half length) Front: Up to 4 x PCIe Gen5 x16 double-width GPU cards OR 8 x PCIe Gen5 x8 single-width GPU cards (full height, full length) |
| GPU / Accelerator Support | Up to 4 x 600 W double-width GPUs and 12 x 75 W single-width GPUs Supported GPUs include: NVIDIA H100/H100 NVL/A40/A100/A800/A30/A16/L40, Intel PVC (64 GB, 300 W), AMD MI210, NVIDIA A2/L4, Intel ATS-M (12 GB, 75 W) |
| Network Options | 2 x 1 GbE LOM card (optional) 1 x OCP 3.0 card (optional) Note: System allows either LOM card, OCP card, or both |
| Ports – Front | 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA |

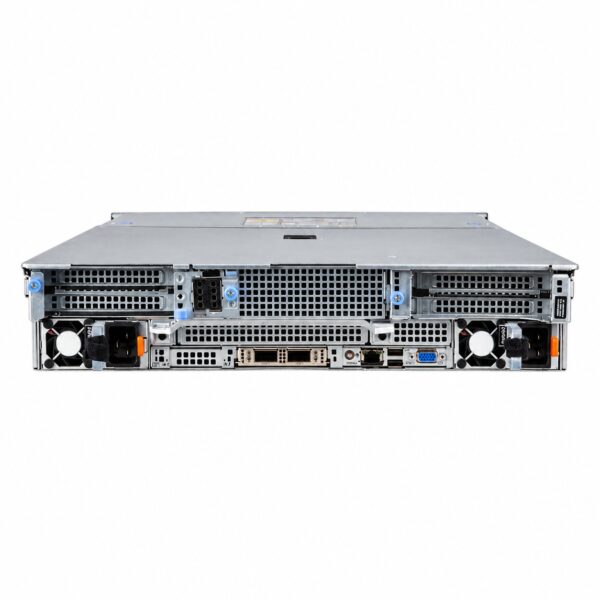

| Ports – Rear | 1 x dedicated iDRAC Ethernet port 1 x USB 2.0 1 x USB 3.0 1 x Serial (optional) 1 x VGA (optional for Direct Liquid Cooling configuration) |
| Ports – Internal | 1 x USB 3.0 (optional) |
| Power Supplies | 2800 W Titanium, 200–240 V AC or 240 V HVDC, hot-swappable redundant 2400 W Platinum, 100–240 V AC or 240 V HVDC, hot-swappable redundant |
| Operating Systems | Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi |
| Management | Embedded: iDRAC9, iDRAC Direct, iDRAC RESTful API with Redfish, iDRAC Service Module, Quick Sync 2 wireless module Consoles: OpenManage Enterprise, OpenManage Power Manager plugin, OpenManage Service plugin, OpenManage Update Manager plugin, CloudIQ for PowerEdge plugin Tools: IPMI, RACADM CLI, Dell System Update, Dell Repository Manager |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key management) Secure Boot Secured Component Verification Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified |
| Dimensions (H x W x D) | Height: 86.8 mm (3.41″) Width: 482 mm (18.97″) Depth: 946.73 mm (37.27″) with bezel / 932.89 mm (36.73″) without bezel |
