Product Overview

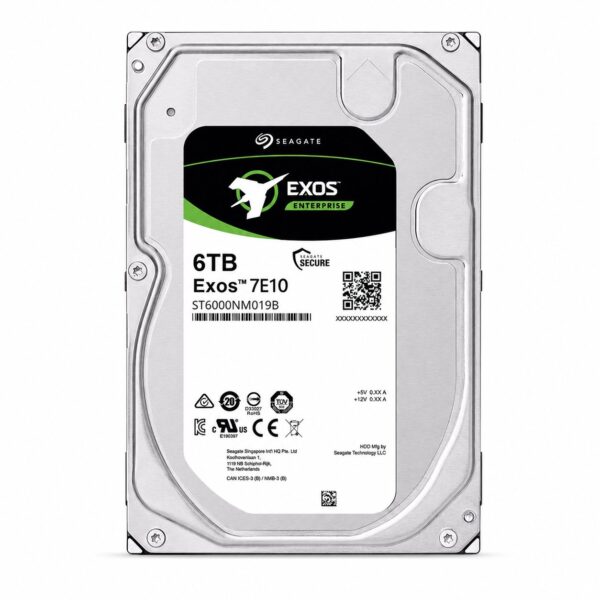

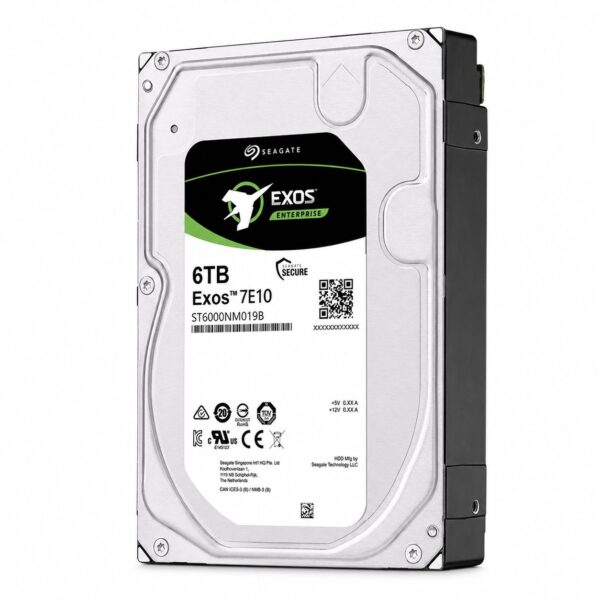

The Seagate Exos 7E10 ST6000NM019B is an enterprise-class 3.5-inch hard drive engineered for demanding, 24/7 bulk-data applications. It features 6TB storage capacity, a 7,200 RPM rotational speed, a SATA 6Gb/s interface, and Advanced Format FastFormat™ capabilities.
Key Technical Specifications
General Information
| Feature |
Details |
| Model Number |
ST6000NM019B |
| Product Line |
Exos 7E10 |
| Capacity |
6 TB (6,000 GB) |
| Form Factor |
3.5-inch LFF (Large Form Factor) |
| Interface |
SATA 6 Gb/s (SATA III) |
| Sector Format |
FastFormat™ (512e / 4Kn user-configurable) |
Performance
| Parameter |
Specification |
| Spindle Speed |
7,200 RPM |
| Cache Buffer |
256 MB (Multisegmented) |
| Max Sustained Transfer Rate |
Up to 250 MB/s |
| Average Latency |
4.16 ms |
| Interface Access Speed |
6.0 Gb/s, 3.0 Gb/s, 1.5 Gb/s |
Reliability & Data Integrity
| Feature |
Rating / Feature Details |
| Workload Rating |
550 TB / year (10× standard desktop drives) |
| Mean Time Between Failures (MTBF) |
2,000,000 hours |
| Annualized Failure Rate (AFR) |
0.44% (Full 24/7 operation) |
| Uncorrectable Read Error Rate |
$<1$ sector per $10^{15}$ bits read |
| Power-On Hours |
8,760 hours/year (Continuous 24/7 usage) |
| Rotational Vibration (RV) Sensors |
Integrated |
| Humidity Sensor & Super Parity |
Integrated |
| Limited Warranty |
5 Years |
Power Requirements & Energy Management
| Parameter |
Specification |
| Power Supply Requirements |
+12 V and +5 V |
| Idle Power (Average) |
7.06 W |
| Typical Operating Power (Random Read) |
11.03 W |
| Power Management |
PowerChoice™ On-Demand Technology |
Operating Environment & Shock Ratings
| Environmental Factor |
Operating / Non-Operating Limits |
| Operating Temperature Range |
5°C to 60°C |
| Operating Shock (2 ms Read/Write) |
70 G / 40 G |
| Non-Operating Shock (1 ms / 2 ms) |
300 G |
| Non-Operating Vibration (10 Hz – 500 Hz) |
4.9 Grms |
Physical Dimensions
| Physical Property |
Measurement |
| Height |
26.11 mm / 1.028 in |
| Width |
101.85 mm / 4.010 in |
| Depth |
147.00 mm / 5.787 in |
| Weight |
716 g / 1.58 lb |
