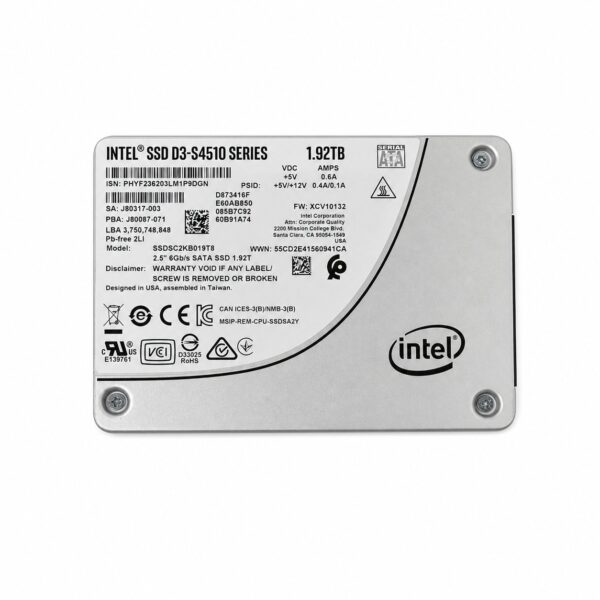

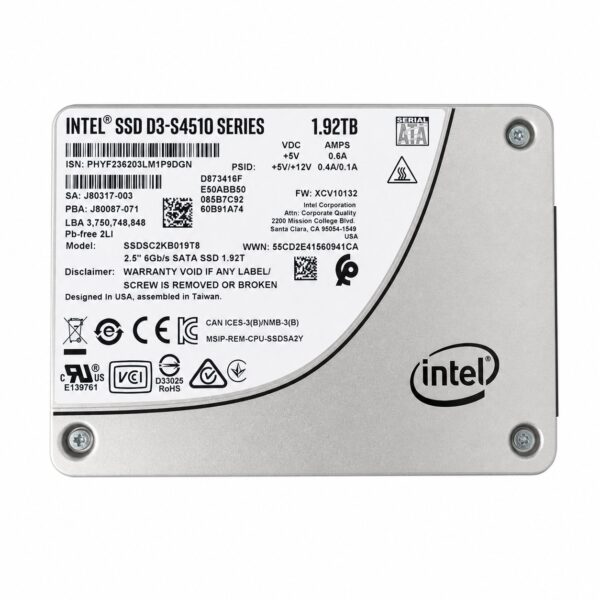

Intel SSD D3-S4510 Series (1.92TB, 2.5″ SATA 6Gb/s) SSDSC2KB019T8

Intel® SSD D3-S4510 Series (1.92TB, 2.5″ SATA 6Gb/s)

1. General Information

• Brand: Intel® (Now Solidigm)

• Product Collection: Intel® SSD D3-S4510 Series

• Model Code: SSDSC2KB019T8

• Form Factor: 2.5″ 7mm

• Interface: SATA 3.0 6Gb/s

• Target Workload: Read-Intensive Enterprise & Data Center

2. Performance Specifications

• Capacity: 1.92 TB (1920 GB)

• Sequential Read (up to): 560 MB/s

• Sequential Write (up to): 510 MB/s

• Random Read (4KB, Span 100%): 97,000 IOPS

• Random Write (4KB, Span 100%): 36,000 IOPS

• Latency – Read (typical): 36 µs

• Latency – Write (typical): 36 µs

3. Reliability & Endurance

• Lifetime Endurance (TBW): 7.1 PBW (Petabytes Written)

• Drive Writes Per Day (DWPD): ~1.0 DWPD (5-year rating)

• Mean Time Between Failures (MTBF): 2,000,000 hours

• Uncorrectable Bit Error Rate (UBER): 1 sector per $10^{17}$ bits read

• Warranty: 5 Years (Limited Warranty)

4. Power Specifications

• Active Power Consumption (Typical): 3.0 W

• Idle Power Consumption: 1.0 W

• Power Supply: 5V $\pm$ 5%

5. Advanced Technologies & Features

• Enhanced Power Loss Data Protection: Integrated capacitance to protect data in flight during unexpected power loss.

• Hardware Encryption: AES 256-bit Hardware Encryption

• End-to-End Data Protection: Yes

• High-Reliability NAND: 3D NAND Technology (64-layer TLC)

• Temperature Monitoring and Logging: Yes

• Thermal Throttling: Yes

6. Environmental Specifications

• Operating Temperature: 0°C to 70°C

• Non-Operating Temperature: -55°C to 95°C

• Operating Shock: 1,000 G / 0.5 ms

• Operating Vibration: 2.17 GRMS (5-700 Hz)
