Huawei CloudEngine CE6885-48YS8CQ
CE6885-48YS8CQ
Enterprise stock · tested · export documentation available

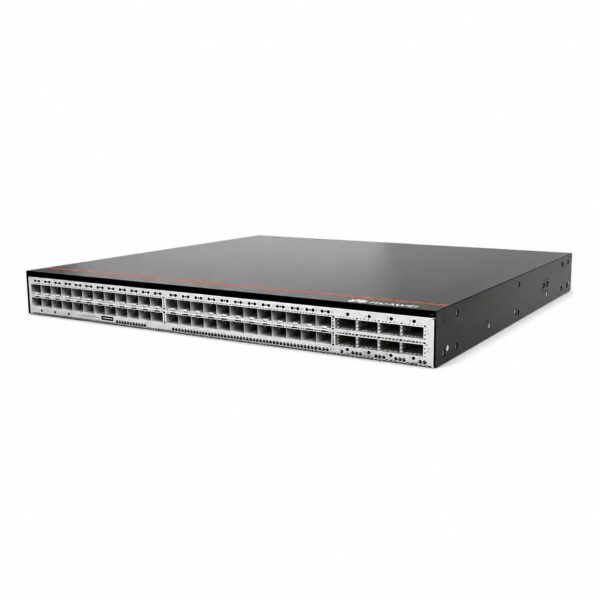

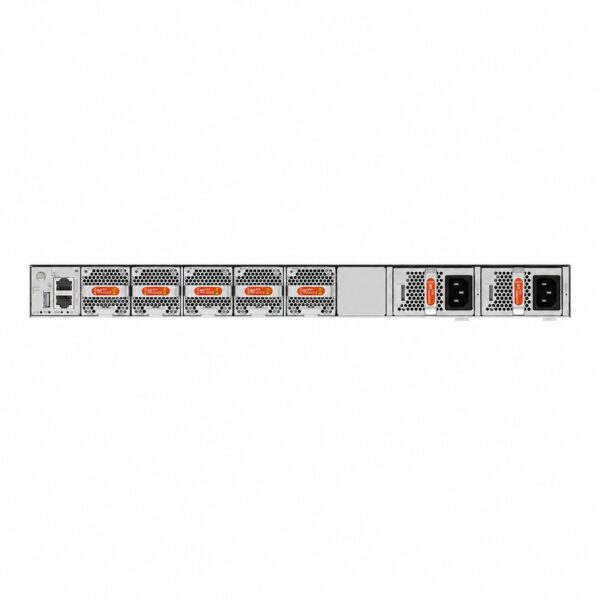

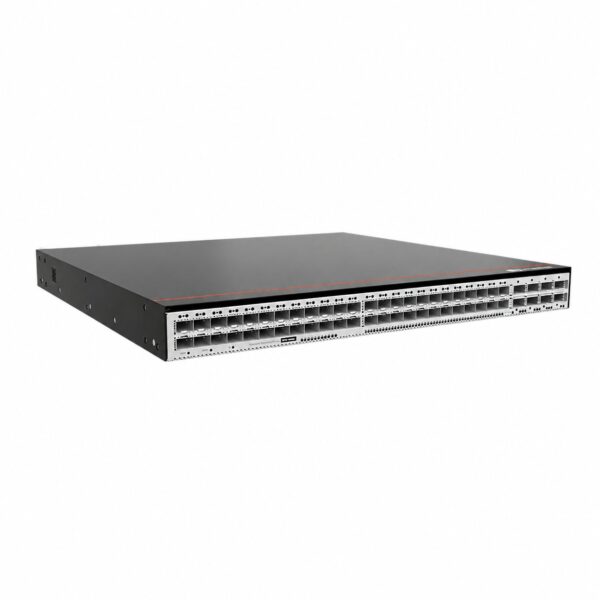

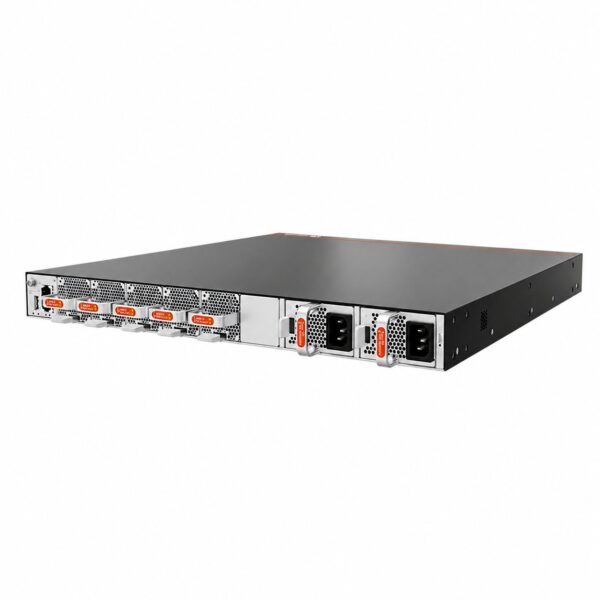

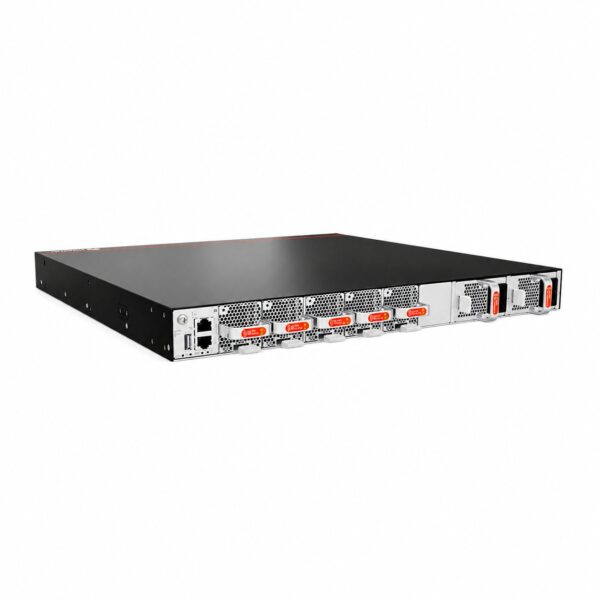

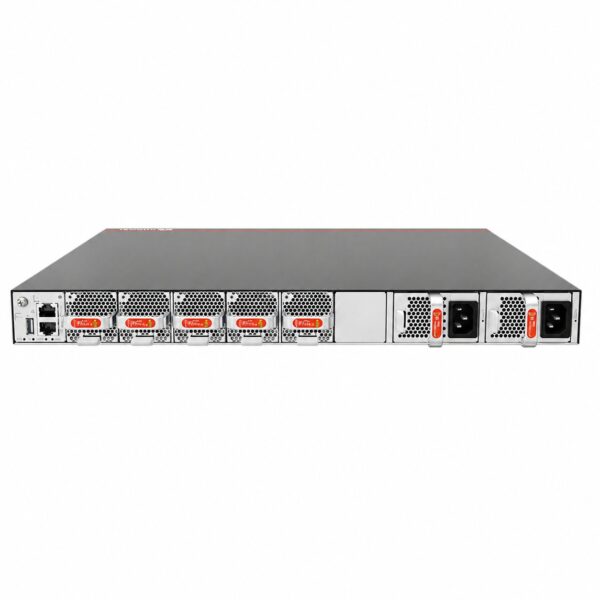

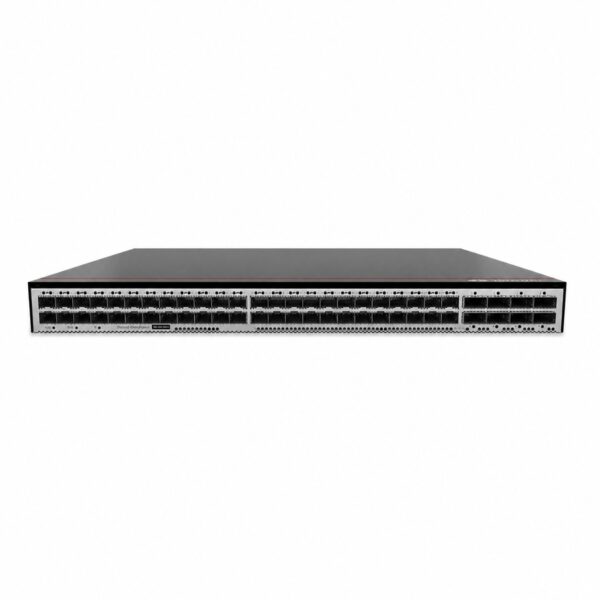

Huawei CloudEngine CE6885-48YS8CQ Data Center Switch
Product Overview
The Huawei CloudEngine CE6885-48YS8CQ is a next-generation, high-performance, high-density fixed 1RU data center switch designed for top-of-rack (ToR) access and aggregation deployments. It delivers 48 x 25GE SFP28 downlink ports (configurable to 10GE or 50GE with license upgrade) and 8 x 100GE QSFP28 uplink ports (configurable to 40GE or 200GE with license upgrade), providing exceptional port density for modern cloud data centers .
With a switching capacity of 8 Tbps and a forwarding rate of 1,200 Mpps, the switch supports advanced data center features including VXLAN/BGP-EVPN, M-LAG for multi-device link aggregation, RoCEv2 for lossless networking, and comprehensive telemetry for intelligent operations . The CE6885-48YS8CQ can work seamlessly with Huawei CloudEngine 16800, 16800-X, or 8800 series core switches to build elastic, virtualized, and high-quality 40GE/100GE/200GE fully-connected data center networks . It is equally suited for campus network core or aggregation deployments.
Key capabilities include hardware-based VXLAN gateway functionality, AI-driven congestion control (AI-ECN), PFC deadlock prevention, MACsec security, and Zero Touch Provisioning (ZTP) for automated deployment . The switch features 1+1 redundant hot-swappable power modules, N+1 redundant hot-swappable fan trays, and flexible airflow direction options to optimize data center energy efficiency .
Product Specifications
| Category | Parameter | Specification |
|---|---|---|
| Model | Product Name | CloudEngine 6885-48YS8CQ |
| Physical | Form Factor | 1U Rack-Mounted |
| Dimensions (W × D × H) | 442 mm × 420 mm × 43.6 mm | |
| Weight | Approx. 8.55 kg (fully loaded) / 6.36 kg (chassis only) | |
| Ports | Downlink Ports | 48 × 25GE SFP28 (configurable to 10GE; upgradeable to 50GE with license) |
| Uplink Ports | 8 × 100GE QSFP28 (configurable to 40GE; upgradeable to 200GE QSFP56 with license) | |
| Port Features | 100GE ports can be split into 4 × 25GE SFP28 or 4 × 10GE SFP+; breakout ports support 1588v2 (PTP) | |
| Performance | Switching Capacity | 8 Tbps / 128 Tbps (cluster support) |
| Forwarding Rate | 1,200 Mpps (standard mode) / 2,400 Mpps (enhanced mode) | |
| System Buffer | 32.5 MB | |
| CPU | Quad-core 1.4 GHz | |
| Memory & Storage | 8 GB DRAM, 64 MB NOR Flash, 4 GB NAND Flash | |
| Scalability | MAC Address Entries | 640K |
| FIB IPv4 / IPv6 Routes | 1.5M / 750K | |
| ARP / ND Entries | 128K each | |
| VRF Instances | 4,096 | |
| VXLAN Bridge Domains | 16K | |
| VXLAN Tunnels | 5K | |
| ECMP Paths | 128 | |
| Link Aggregation Groups (LAGs) | 1,024 | |
| Links per LAG | 256 | |
| BGP Neighbors | 1,024 | |
| Multicast Routes | 32K | |
| Data Center Features | Virtualization | VXLAN routing and bridging, BGP-EVPN, VXLAN over IPv6, Hardware VXLAN Gateway, M-LAG |
| Lossless Networking | RoCE v1/v2, PFC (Priority Flow Control), AI-ECN (Explicit Congestion Notification), ECN Overlay, iLossless Algorithm, YScale Congestion Control, PFC Deadlock Prevention | |
| High Availability | M-LAG (Multi-chassis Link Aggregation), Hardware BFD (min 3ms interval), VRRP, LACP, In-Service Software Upgrade (ISSU) | |
| O&M & Programmability | Automation | Zero Touch Provisioning (ZTP), NETCONF, OpenFlow, Open APIs (Python scripting) |
| Telemetry & Monitoring | Telemetry, iFIT (in-situ Flow Information Telemetry), NetStream, sFlow, ERSPAN, Packet Event, iMaster NCE-FabricInsight integration | |
| Security | Protocols & Features | MACsec (Link-layer encryption), ACL (Ingress/Egress: 34K/2K), Port Security, AAA, RADIUS, LDAP, DoS Protection, Micro-segmentation |
| Power | Power Supply | 1+1 Hot-swappable Redundant, 600W AC/DC Modules |
| Input Voltage (AC) | 90V AC ~ 290V AC, 45Hz ~ 65Hz | |
| Input Voltage (DC) | 190V DC ~ 290V DC (240V DC) | |
| Typical Power Consumption | 147W (24×25GE + 4×100GE copper, dual AC) | |
| Maximum Power Consumption | 200W (full load with short-range optical modules, 100% load) | |
| Cooling | Fan Modules | 5 × N+1 Redundant Hot-swappable Fan Trays |
| Airflow Direction | Port-side intake or exhaust (flexible selection) | |
| Environmental | Operating Temperature | 0°C to 45°C (Long-term) / -5°C to 55°C (Short-term) |
| Storage Temperature | -40°C to +70°C | |
| Operating Humidity | 5% RH to 95% RH (non-condensing) |
