Huawei CloudEngine CE6850U-48S6Q-HI Data Center Switch – Product Documentation
Product Overview

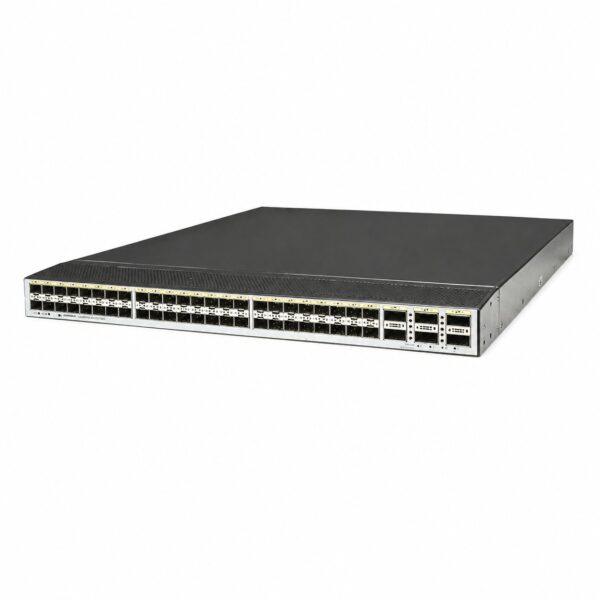

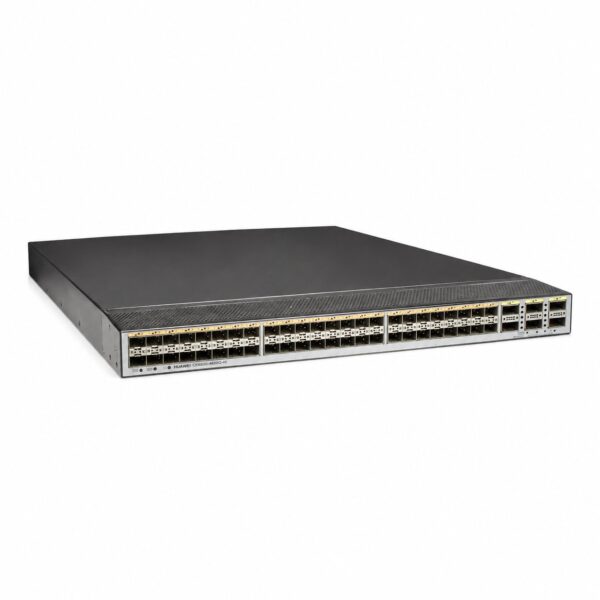

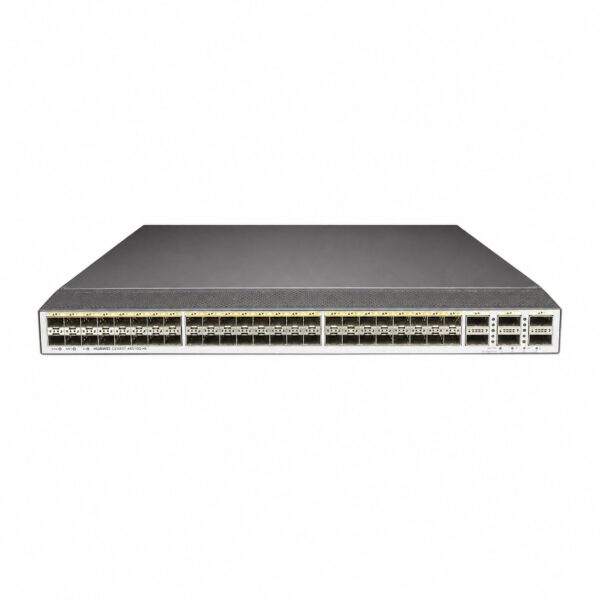

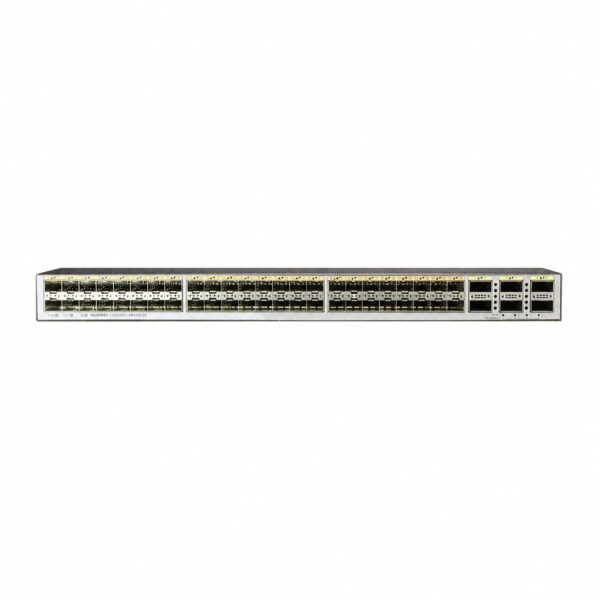

The Huawei CloudEngine CE6850U-48S6Q-HI is a high-performance, fixed-configuration 10GE data center switch designed for enterprise cloud computing, virtualization, and high-density server access deployments. Part of the CloudEngine 6800 series, this 1U form-factor switch provides 48 x 10GE SFP+ access ports and 6 x 40GE QSFP+ uplink ports, delivering a switching capacity of 1.44 Tbit/s and a forwarding rate of 1,080 Mpps.
The CE6850U-48S6Q-HI supports advanced Layer 2 and Layer 3 networking features, VXLAN-based network virtualization, TRILL, and BGP-EVPN, making it suitable for spine-leaf architectures and modern overlay networks. It also supports Fibre Channel over Ethernet (FCoE) for storage network convergence, with 10GE SFP+ ports capable of auto-sensing to 1 Gbit/s and supporting 2G/4G/8G FC optical modules.
The switch features flexible airflow designs (front-to-back or back-to-front), hot-swappable power modules and fan trays, dual ETH management ports (combo), and support for 16-member stack virtualization via iStack technology. It is designed for enterprise data center top-of-rack (ToR) access, aggregation, and campus core network roles.
Technical Specifications
| Category | Specification |
|---|---|
| Model | CE6850U-48S6Q-HI |
| Part Number | 02359311 |
| Product Series | Huawei CloudEngine 6800 Series |
| Product Type | Data Center Ethernet Switch |
| Form Factor | 1U Rack Mount |
Ports and Interfaces
| Category | Specification |
|---|---|
| Access Ports | 48 × 10GE SFP+ Ethernet optical ports (auto-sensing to 1 Gbit/s, supports 2G/4G/8G FC optical modules) |
| Uplink Ports | 6 × 40GE QSFP+ Ethernet optical ports (supports 1-to-4 breakout to 10GE ports) |
| Console Port | 1 × Console port (RJ-45) |
| Mini USB Port | 1 × Mini USB port (shares internal serial port with Console) |
| Management Ports | 2 × ETH management ports (combo – electrical/optical, multiplexed, primary/backup auto-switch) |
| USB Port | 1 × USB port |
Performance
| Category | Specification |
|---|---|
| Switching Capacity | 1.44 Tbit/s (1.92 Tbps fabric capacity per some sources) |
| Forwarding Rate | 1,080 Mpps |
| Latency | < 2 µs |
| MAC Address Table | 288,000 entries |
| IPv4 FIB | 256,000 entries |
| IPv6 FIB | 128,000 entries |
| Multicast FIB | 8,000 entries |
| ACL (Input/Output) | 14,750 / 1,000 entries |
Power Specifications
| Category | Specification |
|---|---|
| Power Supply Slots | 2 (1+1 redundancy support) |
| Supported Power Modules | 600 W AC & 240 V DC, 600 W high-voltage DC, 1200 W DC, 1200 W high-voltage DC |
| Input Voltage | AC 90–290V, DC 240V / 380V |
| Maximum Power Consumption | 339 W |
| Typical Power Consumption | 235 W |
Cooling and Physical
| Category | Specification |
|---|---|
| Fan Slots | 2 (hot-swappable) |
| Supported Fan Modules | FAN-060A-F (front-to-back airflow) / FAN-060A-B (back-to-front airflow) |
| Airflow Design | Front-to-back or back-to-front (field-selectable based on fan and power modules) |
| Dimensions (W × D × H) | 442.0 × 600.0 × 43.6 mm (17.4 × 23.6 × 1.72 in) |
| Weight (fully loaded) | 12.6 kg (27.78 lb) |
Environmental Specifications
| Category | Specification |
|---|---|
| Operating Temperature | 0°C to 40°C (32°F to 104°F) at 0–1800 m altitude; derates above 1800 m |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
Software and Protocol Support
| Category | Specification |
|---|---|
| Operating System | Huawei VRP8 software platform |
| Device Virtualization | iStack (up to 16 switches), SVF (Super Virtual Fabric), M-LAG |
| Network Virtualization | VXLAN, TRILL, BGP-EVPN, QinQ in VXLAN, IPv6 over VXLAN |
| Data Center Interconnect | VXLAN Mapping for multi-DC Layer 2 interconnection |
| SDN Compatibility | Agile Controller, VMware NSX, OpenFlow, OPS (Open Programmability System), Puppet, Ansible |
| Network Convergence | FCoE, DCBX, PFC, ETS (lossless transport) |
| IP Routing (IPv4) | RIP, OSPF, ISIS, BGP |
| IP Routing (IPv6) | RIPng, OSPFv3, ISISv6, BGP4+ |
| Multicast | IGMP, PIM-SM, MSDP, MBGP, IGMP Snooping, IGMP Proxy |
| MPLS | Supported |
| Reliability | LACP, STP/RSTP/MSTP, SmartLink, DLDP, ERPS (G.8032), VRRP, BFD (for BGP/IS-IS/OSPF/static routing/VXLAN) |
| QoS | Layer 2/3/4 flow classification, ACL, CAR, Remark, Schedule, PQ/WRR/DRR queuing, WRED, traffic shaping |
| OAM and Maintenance | NetStream, sFlow, Telemetry, VXLAN OAM (ping/tracert), ZTP (Zero Touch Provisioning) |
| Management | Console, Telnet, SSH, SNMPv1/v2c/v3, FTP/TFTP, NTP |
Ordering Options (Configuration Variants)
| Part Number | Description |
|---|---|
| 02359312 | CE6850U-48S6Q-HI Switch (48 × 10GE SFP+ with FC support, 6 × 40GE QSFP+, 2 × AC Power Modules, 2 × Fan Box, port-side exhaust) |
| 02350EHH | CE6850U-48S6Q-HI Switch (48 × 10GE SFP+ with FC support, 6 × 40GE QSFP+, 2 × AC Power Modules, 2 × Fan Box, port-side intake) |
| 02350EHF | CE6850U-48S6Q-HI Switch (48 × 10GE SFP+ with FC support, 6 × 40GE QSFP+, 2 × Fan Box, port-side exhaust, without power modules) |
| 02350EHG | CE6850U-48S6Q-HI Switch (48 × 10GE SFP+ with FC support, 6 × 40GE QSFP+, 2 × Fan Box, port-side intake, without power modules) |
| 02359311 | CE6850U-48S6Q-HI Switch (48 × 10GE SFP+ with FC support, 6 × 40GE QSFP+, without fan box and power modules) |
