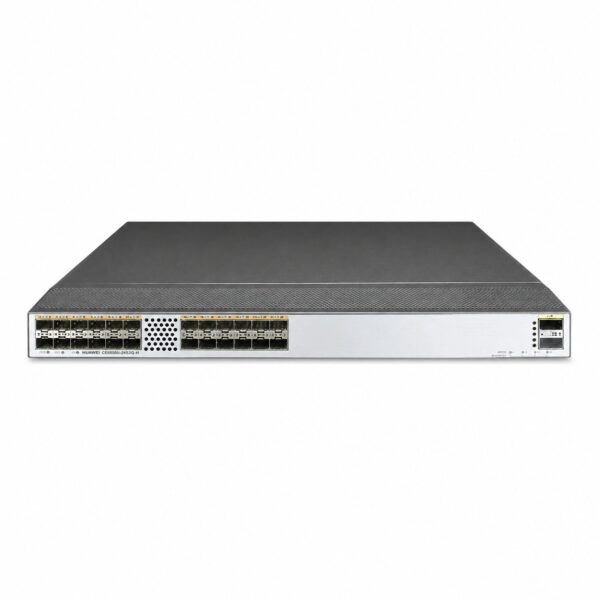

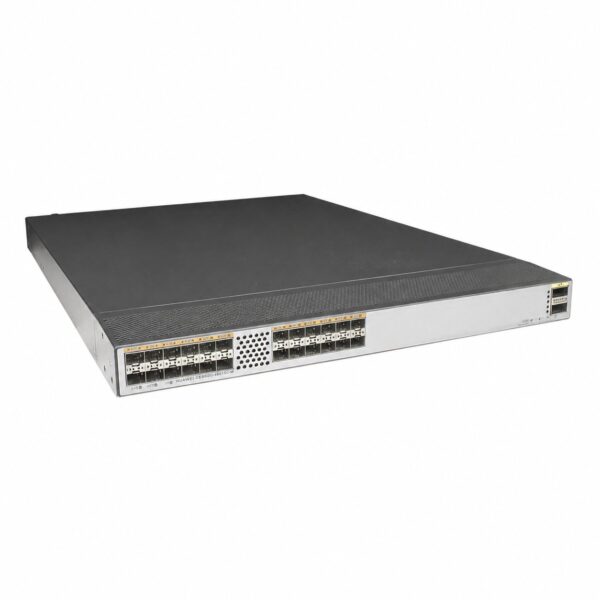

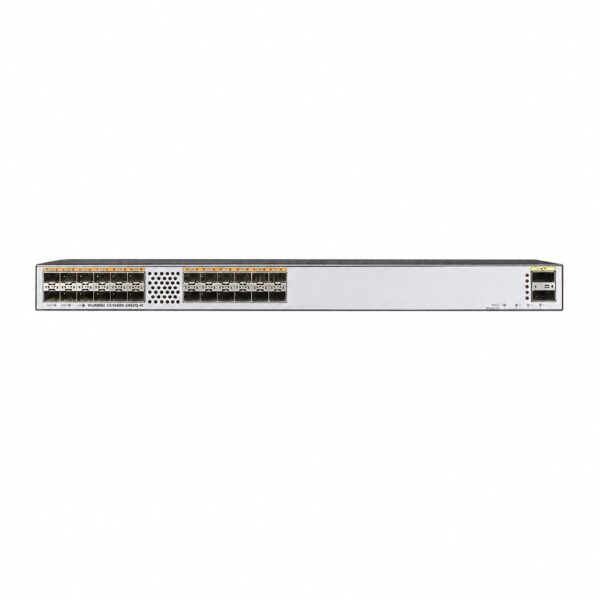

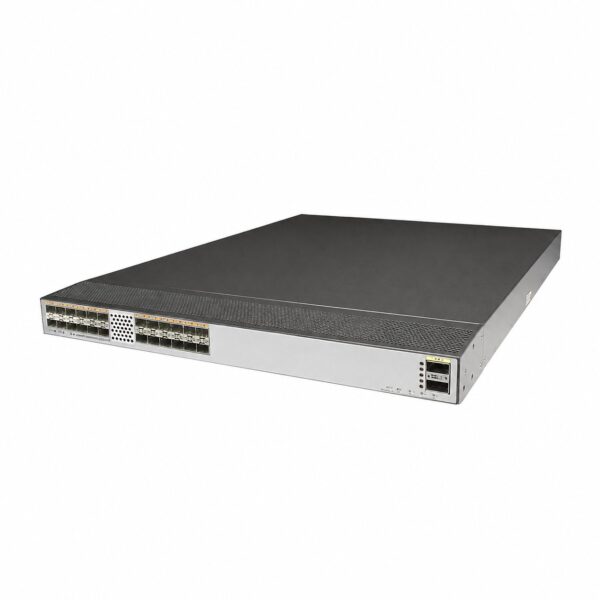

Huawei CloudEngine CE6850U-24S2Q-HI Product Documentation

Name: Huawei CloudEngine CE6850U-24S2Q-HI - Refurbished & Tested - SunSpike
Brand: HUAWEI
SKU: CE6850U-24S2Q-HI

Product Overview

The Huawei CloudEngine CE6850U-24S2Q-HI is a high-performance, fixed-configuration top-of-rack (TOR) switch designed for modern data center and high-end campus network deployments. As part of the CloudEngine 6800 series, this 1U form-factor switch delivers high port density, low latency, and advanced data center features for building scalable, cloud-oriented network infrastructures.

The switch features 24 x 10GE SFP+ service ports that also support 2G/4G/8G Fibre Channel (FC) for storage area network integration, along with 2 x 40GE QSFP+ uplink ports that can be split into four 10GE ports each for flexible connectivity options. Built on Huawei’s VRP8 platform, the CE6850U-24S2Q-HI supports advanced virtualization technologies including VXLAN, TRILL, M-LAG, and SVF, enabling simplified management of large-scale network fabrics. The switch also supports FCoE (Fibre Channel over Ethernet), allowing data, storage, and computing traffic to converge on a single network infrastructure.

With dual hot-swappable power modules and fan modules supporting both front-to-back and back-to-front airflow directions, the CE6850U-24S2Q-HI provides flexible deployment options to match various data center cooling architectures. Its programmability features include OpenFlow support and OPS (Open Programmability System) for customized network service delivery.

Product Specifications

Category	Parameter	Details
Model	Product Code / SKU	CE6850U-24S2Q-HI
Product Family	Series	Huawei CloudEngine 6800 Series
Form Factor	Rack Height	1U
	Dimensions (W x D x H)	442.0 mm x 600.0 mm x 43.6 mm (17.4 in. x 23.6 in. x 1.72 in.)
	Weight (Fully Loaded)	12.3 kg (27.1 lb)
Interface Ports	Service Ports	24 x 10GE SFP+ Ethernet optical ports (supports auto-sensing to 1 Gbit/s)
	FC Support	Supports 2G/4G/8G FC optical modules on SFP+ ports
	Uplink Ports	2 x 40GE QSFP+ Ethernet optical ports (can be split into 4 x 10GE each)
	Management Ports	2 x ETH Management Ports (combo – electrical/optical)
	Console Port	1 x Console Port (RJ45)
	USB Ports	1 x USB Port, 1 x Mini USB Port
Performance	Switching Capacity	640 Gbit/s (base); up to 1.44 Tbit/s (maximum)
	Forwarding Rate	480 Mpps (base); up to 1,080 Mpps (maximum)
Power	Power Supply Type	AC/DC/High-Voltage DC
	AC Input Voltage	Rated: 100 V AC to 240 V AC, 50/60 Hz; Max: 90 V AC to 290 V AC, 47 Hz to 63 Hz
	DC Input Voltage	Rated: -48 V DC to -60 V DC; Max: -38.4 V DC to -72 V DC
	Power Module Slots	2 (supports 1+1 redundancy)
	Maximum Power Consumption	282 W
	Typical Power Consumption	183 W
Cooling	Fan Slots	2 (both required for operation)
	Airflow Direction	Front-to-back or Back-to-front (configurable based on fan module selection)
	Hot-swappable	All fan modules support hot-swap
Environmental	Operating Temperature	0°C to 40°C (32°F to 104°F) at altitude 0-1800 m
	Storage Temperature	-40°C to +70°C (-40°F to +158°F)
	Relative Humidity	5% RH to 95% RH, non-condensing
	Altitude	< 5000 m (16404 ft.)
Key Features	Virtualization	VXLAN, TRILL, M-LAG, SVF (Super Virtual Fabric)
	Network Convergence	FCoE, DCBX, PFC, ETS support
	Programmability	OpenFlow, OPS (Open Programmability System)
	Stacking	iStack technology, up to 16-member stack system
Software	Operating System	VRP8 (Versatile Routing Platform)
	Supported Versions	V100R005C10 to V200R019C10 (Note: V200R005C20 not supported)
Certifications	Standards Compliance	IEEE802.3, Data Center Bridging (DCB) standards
