Huawei CloudEngine S5755-H24P4Y2CZ – Product Documentation
Product Overview

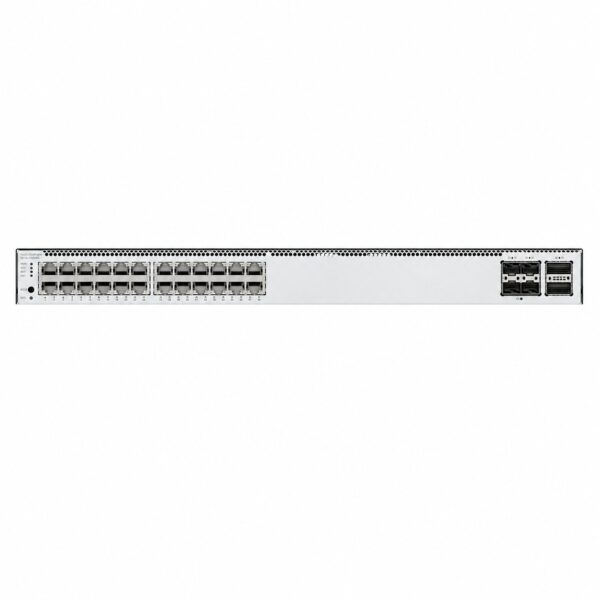

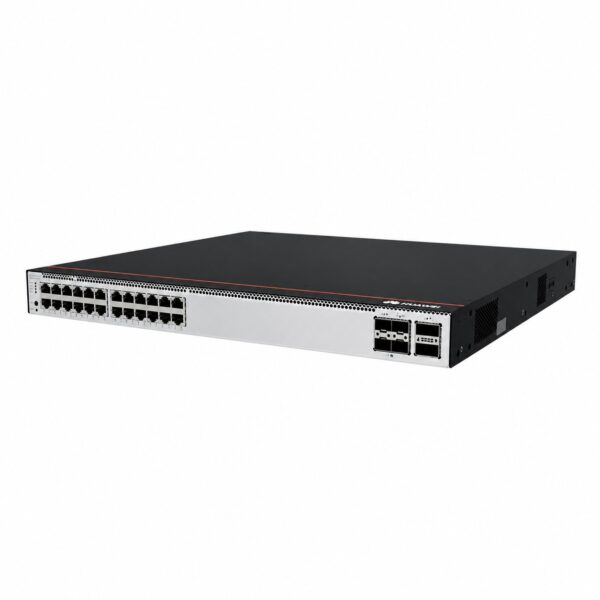

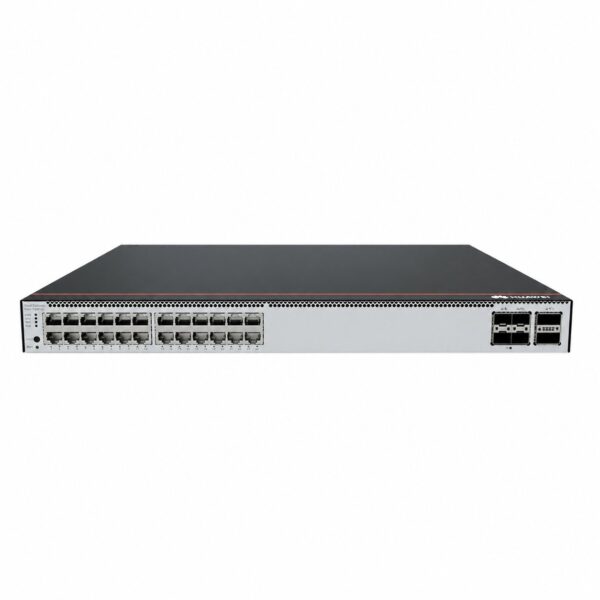

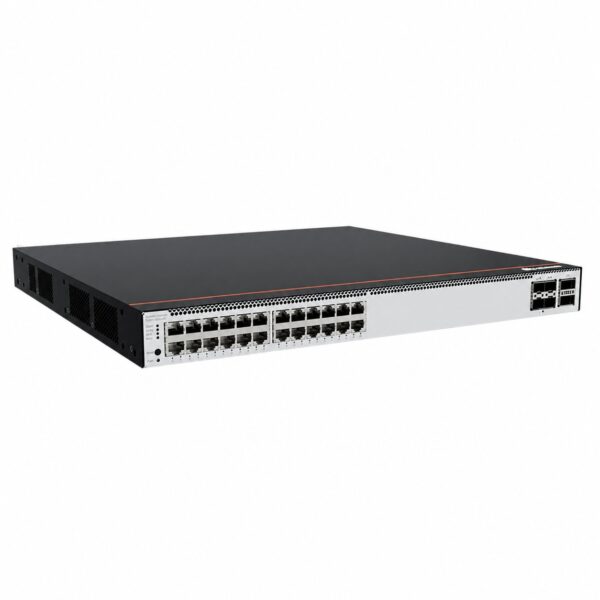

The Huawei CloudEngine S5755-H24P4Y2CZ is a high-quality Gigabit access switch from the CloudEngine S5755-H series, designed for next-generation campus networks, especially for the Wi-Fi 6 and Wi-Fi 7 era . This managed Layer 3 switch provides 24 fixed 10/100/1000BASE-T downlink ports with Power over Ethernet Plus (PoE+) capability, along with four 25GE SFP28 and two 100GE QSFP28 high-bandwidth uplink ports .
Built on Huawei’s unified software platform, the switch supports VXLAN-based network virtualization, enabling multi-service convergence on a single physical network to reduce deployment and operational costs . A key distinction of this model is its enhanced PoE+ support with a total power budget of up to 840W, making it an ideal choice for powering WLAN access points, IP cameras, and other networked devices .

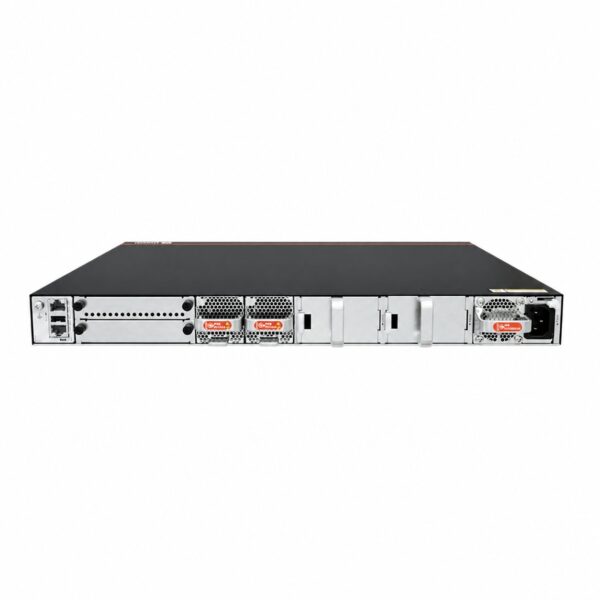

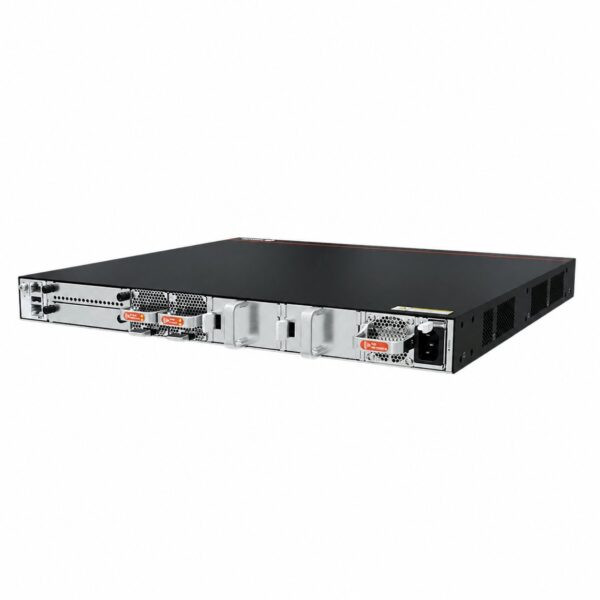

The device features a modular power architecture with N+1 power supply redundancy (three hot-swappable power module slots), and its compact 1U form factor makes it suitable for space-constrained wiring closets and data centers . All ports support MACsec encryption for end-to-end security, and the switch supports stacking of up to 9 units via Huawei’s iStack technology .
Product Specifications
Basic Information
| Category | Specification |
|---|---|
| Product Model | CloudEngine S5755-H24P4Y2CZ |
| Product Type | Managed Layer 3 Switch |
| Chassis Height | 1 U |
| Dimensions (H × W × D) | 43.6 mm × 442.0 mm × 420.0 mm |
| Weight (without packaging) | 5.78 kg |
| Chassis Material | Metal |
Ports & Interfaces
| Category | Specification |
|---|---|
| Fixed Ports | 24 × 10/100/1000BASE-T PoE+ Ethernet ports |
| Uplink Ports | 4 × 1/10/25GE SFP28 ports |
| 100G Uplink Ports | 2 × 40/100GE QSFP28 ports |
| Extended Card Slot | 1 reserved slot for interface subcards |
| Console Port | RJ-45 |
| ETH Management Port | RJ-45 |
| USB Port | USB 2.0 Type A |
| Port Splitting | 40GE ports can be split into 4 × 10GE; 100GE ports can be split into 4 × 25GE |
Performance
| Category | Specification |
|---|---|
| Switching Capacity | 648 Gbps / 2.4 Tbps (device/system) |
| Forwarding Performance | 465 Mpps |
| MAC Address Table Size | 256,000 entries |
| Routing Table Size | 256,000 entries |
| ARP Table Size | 32,200 entries |
| VLAN Count | 4096 |
| ACL Rules | 32,000 |
| Multicast Groups | 4096 |
Power Specifications
| Category | Specification |
|---|---|
| Power Supply Slots | 3 |
| Redundancy | N+1 hot-swappable power supplies (AC and DC modules can be mixed) |
| Supported Power Modules | 1000 W PoE AC, 600 W PoE AC (pluggable) |
| PoE Standard | IEEE 802.3at (PoE+) |
| PoE Power Budget | 840 W |
| Typical Power Consumption | 88 W |
| Maximum Power Consumption | 84 W (100% traffic, all ports used) |
| Rated Voltage Range (AC) | 100 V AC to 130 V AC; 200 V AC to 240 V AC, 50/60 Hz |
| Rated Voltage Range (DC) | 190 V DC to 290 V DC (high-voltage DC); –48 V DC to –60 V DC |
Cooling & Environment
| Category | Specification |
|---|---|
| Cooling System | Air cooling with intelligent speed adjustment, pluggable fan modules |
| Number of Fan Modules | 2 |
| Long-Term Operating Temperature | –5°C to +45°C |
| Short-Term Operating Temperature | –5°C to +50°C |
| Storage Temperature | –40°C to +70°C |
| Relative Humidity | 5% to 95% (non-condensing) |
Layer 2 Features
| Category | Specification |
|---|---|
| MAC Features | IEEE 802.1d compliance; automatic MAC learning/aging; static, dynamic, and blackhole MAC entries; source MAC filtering |
| VLAN | 4096 VLANs supported |
| Redundancy Protocols | STP, RSTP, MSTP, ERPS, VBST, MLAG |
| Link Aggregation | LACP supported |
| Stacking | iStack technology, up to 9 devices |
| Interoperability | VBST (compatible with PVST/PVST+/RPVST), LNP (similar to DTP), VCMP (similar to VTP) |
Layer 3 Features
| Category | Specification |
|---|---|
| Routing Protocols | Static route, RIP, OSPF, BGP, IS-IS, PBR, VRRP, ECMP, RIPv2 |
| MPLS Support | Yes |
| VXLAN | Layer 2 and Layer 3 gateways; centralized/distributed gateways; BGP-EVPN; NETCONF configuration |
Advanced Features
| Category | Specification |
|---|---|
| Security | MACsec support on all ports for end-to-end encryption |
| Quality of Service | QoS supported |
| Multicast | IPv4/IPv6 multicast support |
| iPCA | Direct service packet coloring; real-time packet loss and loss ratio statistics at network and device levels |
Compliance & Physical
| Category | Specification |
|---|---|
| Mounting | Rack-mountable |
| Surge Protection (AC) | ±6 kV differential mode, ±6 kV common mode |
| Surge Protection (DC) | ±2 kV differential mode, ±4 kV common mode |
