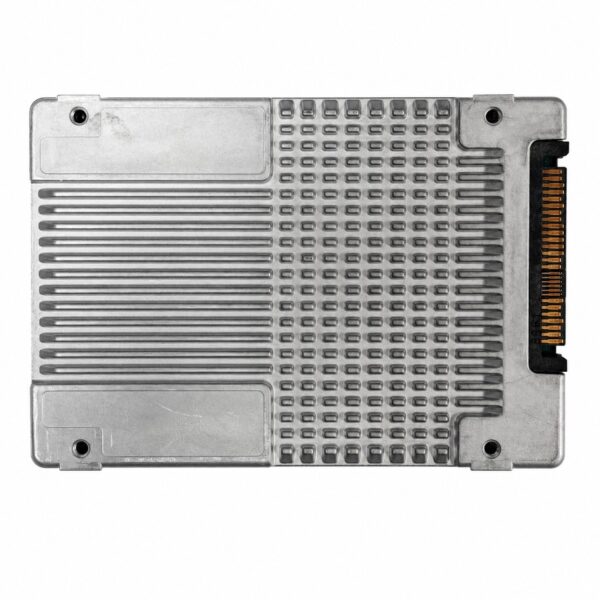

Intel SSD DC P4510 Series — 3.2TB SSDPE2KE032T801

Intel® SSD DC P4510 Series — 3.2TB Specs

General Specifications

• Brand / Manufacturer: Intel® (Data Center Group)

• Product Series: Intel® SSD DC P4510 Series

• Ordering Code (MM# / MPN): SSDPE2KE032T801

• Capacity: 3.2 TB

• Form Factor: 2.5″ 15mm (U.2)

• Interface: PCIe 3.1 x4, NVMe 1.2

• NAND Flash Type: 3D2 TLC (64-Layer 3D NAND)

• Target Workload: Read-Intensive Data Center Applications (Cloud, Analytics, Database)

Performance Specifications

Reliability & Endurance

• Endurance Rating (Lifetime Writes): Up to 13.88 PBW (Petabytes Written) / 2.3 DWPD (Drive Writes Per Day for 5 years)

• Mean Time Between Failures (MTBF): 2,000,000 Hours

• Uncorrectable Bit Error Rate (UBER): < 1 sector per $10^{17}$ bits read

• Component Power Loss Imminence (PLI): Supported (Integrated Enhanced Power Loss Data Protection)

Power & Thermal Specifications

• Active Power Consumption: Up to 14 W (Write) / 10 W (Read)

• Idle Power Consumption: < 5 W

• Operating Temperature Range: $0^\circ\text{C}$ to $70^\circ\text{C}$

• Thermal Monitoring: Internal temperature monitoring and logging via SMART
