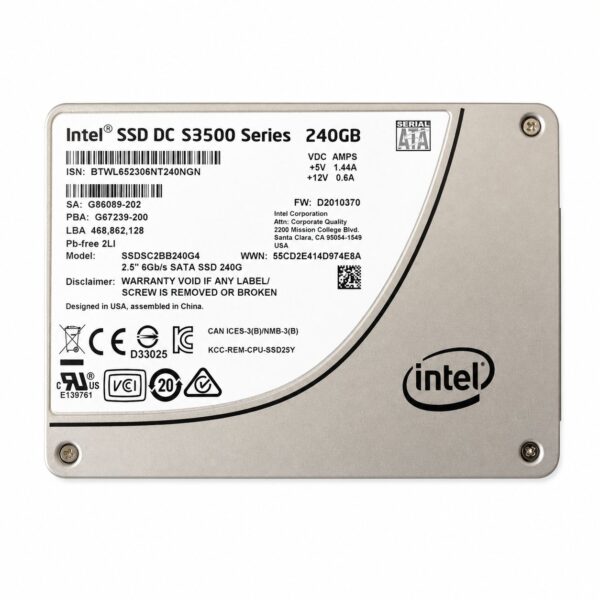

Intel SSD DC S3500 Series (240GB) SSDSC2BB240G4

Intel® SSD DC S3500 Series (240GB) Data Sheet

Overview

The Intel® SSD DC S3500 Series delivers high read performance alongside consistent latency and low power consumption. Designed primarily for enterprise server applications, cloud computing, and data center storage environments, it provides reliable 20nm MLC NAND flash technology with end-to-end data protection.

Key Specifications

Specification	Details
Model Number	SSDSC2BB240G4
Product Line	Intel® SSD DC S3500 Series
Form Factor	2.5-inch, 7mm height
Capacity	240 GB
Interface	SATA III (6.0 Gbps)
NAND Flash Memory	20nm Intel® Multi-Level Cell (MLC)
Controller	Intel® PC29AS21CA0

Performance

Metric	Specification
Sequential Read (up to)	500 MB/s
Sequential Write (up to)	260 MB/s
Random Read (4KB, QD32)	Up to 75,000 IOPS
Random Write (4KB, QD32)	Up to 7,500 IOPS
Read Latency	50 µs (typical)
Write Latency	65 µs (typical)

Reliability & Endurance

• Endurance Rating (TBW): 140 TBW (Terabytes Written) or ~70 GB/day (5-year workload)

• Mean Time Between Failures (MTBF): 2,000,000 hours

• Uncorrectable Bit Error Rate (UBER): 1 sector per $10^{17}$ bits read

• Data Protection: End-to-End Data Protection with AES 256-bit Hardware Encryption

• Power Loss Protection: Enhanced Power Loss Data Protection (integrated capacitors)

Power Consumption

• Active Power (Read/Write): ~3.2 W / ~3.6 W

• Idle Power: ~0.65 W

Environmental & Physical

• Operating Temperature: $0^\circ\text{C}$ to $70^\circ\text{C}$

• Non-Operating Temperature: $-55^\circ\text{C}$ to $95^\circ\text{C}$

• Shock (Operating / Non-Operating): 1,000 G (0.5 ms) / 1,000 G (0.5 ms)

• Vibration (Operating): 2.17 GRMS ($5\text{–}700\text{ Hz}$)

• Weight: Up to 70 grams
