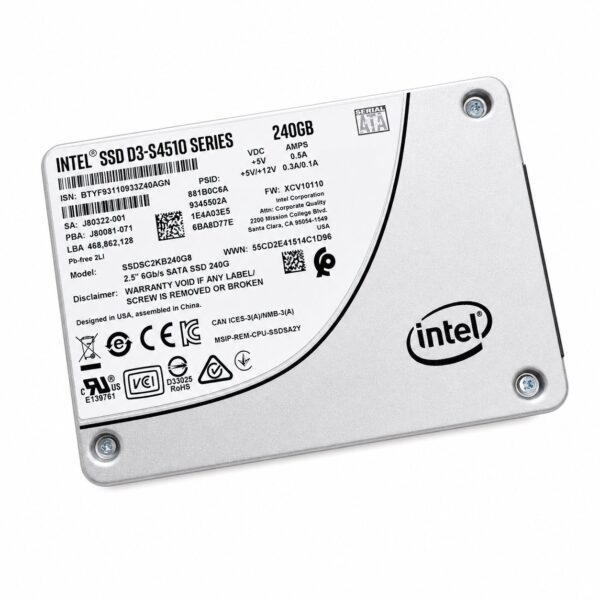

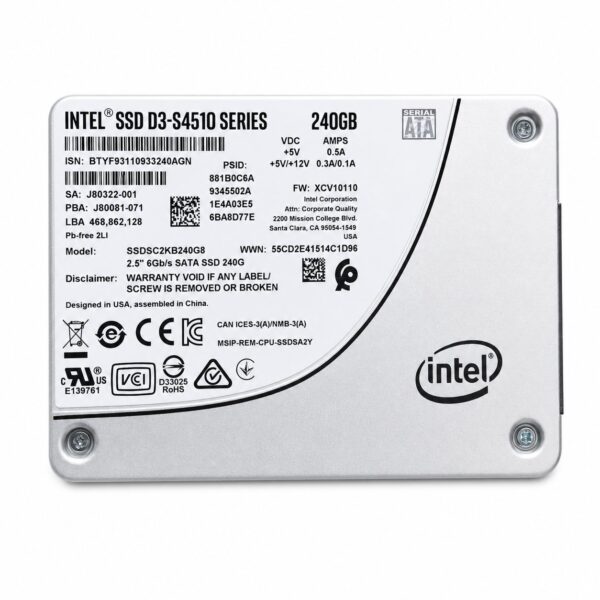

Intel SSD D3-S4510 Series (240GB, 2.5in SATA 6Gb/s, 3D2, TLC) SSDSC2KB240G8
SSDSC2KB240G8
Enterprise stock · tested · export documentation available
Technical Specifications Overview
Model: Intel® SSD D3-S4510 Series (240GB, 2.5in SATA 6Gb/s, 3D2, TLC)
Ordering Code / MPN: SSDSC2KB240G8
Target Market: Data Center / Enterprise Server Storage
Key Specifications
| Feature | Specification |
| Capacity | 240 GB |
| Form Factor | 2.5-inch, 7mm |
| Interface | SATA 3.0 6Gb/s |
| NAND Flash Memory | 3D NAND TLC (64-layer) |
| Lithography Type | 64-Layer 3D TLC |
Performance
| Metric | Rating |
| Sequential Read | Up to 560 MB/s |
| Sequential Write | Up to 280 MB/s |
| Random Read (8GB Span) | Up to 93,000 IOPS |
| Random Write (8GB Span) | Up to 15,500 IOPS |
| Latency – Read | 36 µs |
| Latency – Write | 36 µs |
Reliability & Endurance
| Feature | Specification |
| Endurance Rating (Lifetime Writes) | 900 TBW (Terabytes Written) |
| Drive Writes Per Day (DWPD) | ~2.0 DWPD (5-year basis) |
| Mean Time Between Failures (MTBF) | 2,000,000 hours |
| Uncorrectable Bit Error Rate (UBER) | < 1 sector per $10^{17}$ bits read |
| Hardware Encryption | AES 256-bit |
Power & Thermal Parameters
| Parameter | Value |
| Active Power | 2.4 W |
| Idle Power | 1.0 W |
| Operating Temperature Range | 0°C to 70°C |
| Vibration – Operating | 2.17 GRMS (5-700 Hz) |
| Shock – Operating | 1,000 G (at 0.5 ms) |
