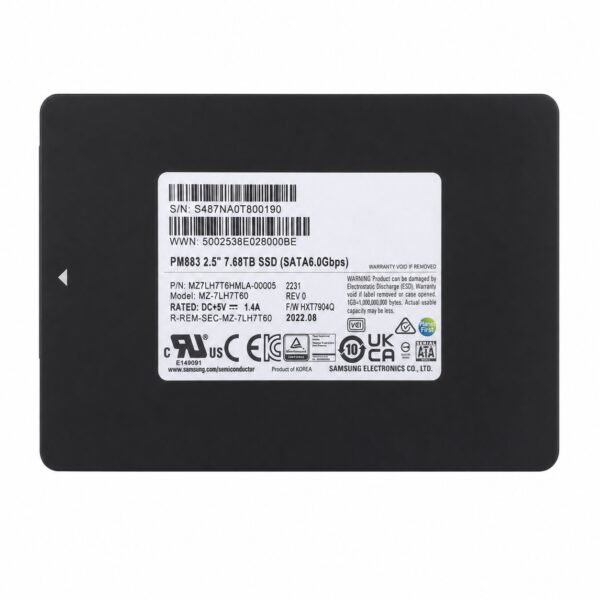

Samsung PM883 7.68 TB SATA 6.0 Gbps SATA III, 3.0 MZ7LH7T6HMLA-00005

Technical Specifications

Core Specifications

• Brand / Manufacturer: Samsung Electronics

• Model Family: PM883 Series

• Part Number (P/N): MZ7LH7T6HMLA-00005

• Capacity: 7.68 TB

• Form Factor: 2.5-inch (7mm depth)

• Interface: SATA 6.0 Gbps (SATA III, 3.0)

• NAND Flash Memory: Samsung V-NAND (3D TLC)

• Controller: Samsung In-House Controller

Performance Specs

• Sequential Read Speed: Up to 550 MB/s

• Sequential Write Speed: Up to 520 MB/s

• Random Read (4KB): Up to 98,000 IOPS

• Random Write (4KB): Up to 25,000 IOPS

Reliability & Endurance

• DWPD (Drive Writes Per Day): 1.3 DWPD (3-year basis) / 0.8 DWPD (5-year basis)

• TBW (Total Bytes Written): Up to 11,228 TBW

• MTBF (Mean Time Between Failures): 2,000,000 Hours

• UBER (Uncorrectable Bit Error Rate): 1 sector per $10^{17}$ bits read

• Data Protection: End-to-End Data Protection, Power Loss Protection (PLP) via Tantalum Capacitors

Physical & Environmental

• Dimensions (W x H x D): $100.20 \times 69.85 \times 6.80\text{ mm}$

• Weight: Max 70 g

• Operating Temperature: $0^\circ\text{C to } 70^\circ\text{C}$

• Operating Power: Read Max ~2.3W / Write Max ~3.6W

• Idle Power: ~1.3W
