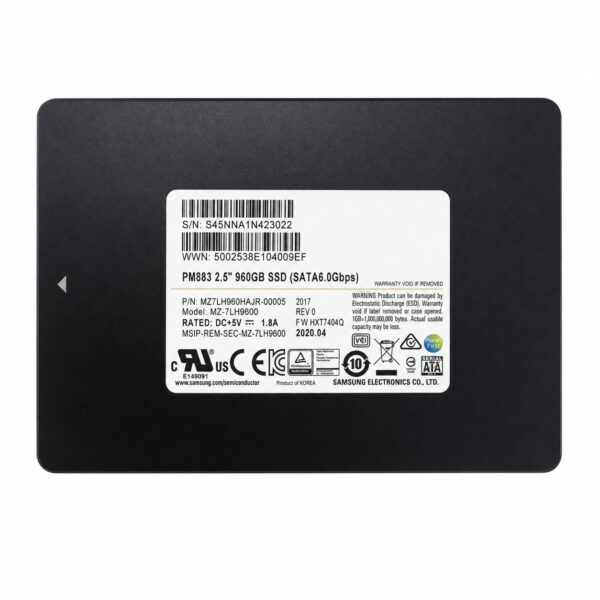

Samsung PM883 960 GB SATA III (6.0 Gb/s) MZ7LH960HAJR-00005

Technical Specifications

Performance Specifications

• Sequential Read Speed: Up to 550 MB/s

• Sequential Write Speed: Up to 520 MB/s

• Random Read (4KB): Up to 98,000 IOPS

• Random Write (4KB): Up to 25,000 IOPS

Endurance & Reliability

• Drive Writes Per Day (DWPD): 1.3 DWPD (3 years)

• Total Bytes Written (TBW): 1,403 TBW

• Mean Time Between Failures (MTBF): 2,000,000 hours

• Bit Error Rate (UBER): 1 sector per $10^{17}$ bits read

• Data Protection: End-to-End Data Protection, Power Loss Protection (PLP) via Tantalum Capacitors

Physical & Environmental

• Dimensions (W x L x H): $100.20 \times 69.85 \times 6.80\text{ mm}$

• Weight: Max 60 g

• Operating Temperature: $0^\circ\text{C}$ to $70^\circ\text{C}$

• Non-Operating Temperature: $-40^\circ\text{C}$ to $85^\circ\text{C}$

• Operating Humidity: 5% to 95% (non-condensing)

• Power Consumption:

  • Active Read: ~2.3 W

  • Active Write: ~3.6 W

  • Idle: ~1.1 W
