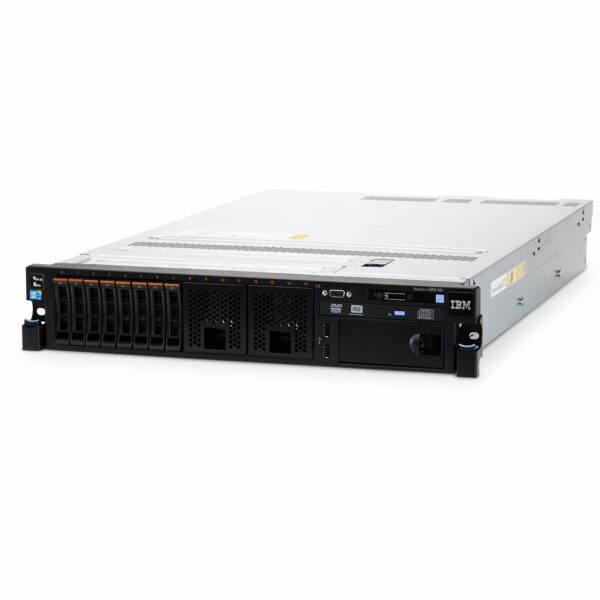

IBM System x3650 M4 Rack Mount Server
IBM System x3650 M4 Rack Mount Server
| Part No. | x3650m4 |
|---|---|
| End of Life? | No |
| Rack Units | 2 U |
| Height | 86 |
| Width | 445 |
| Depth | 746 |
| CPU Socket(s) | 2 Intel® Xeon® E5-2600 |
| Compatible CPU(s) | E5-2603 4C 1.8GHz 10MB 1066MHz 80W; E5-2609 4C 2.4GHz 10MB 1066MHz 80W; E5-2620 6C 2.0GHz 15MB 1333MHz 95W; E5-2630 6C 2.3GHz 15MB 1333MHz 95W; E5-2630L 6C 2.0GHz 15MB 1333MHz 60W; E5-2637 2C 3.0GHz 5MB 1600MHz 80W; E5-2640 6C 2.5GHz 15MB 1333MHz 95W; E5-2643 4C 3.3GHz 10MB 1600MHz 130W; E5-2650 8C 2.0GHz 20MB 1600MHz 95W; E5-2650L 8C 1.8GHz 20MB 1600MHz 70W; E5-2660 8C 2.2GHz 20MB 1600MHz 95W; E5-2665 8C 2.4GHz 20MB 1600MHz 115W; E5-2667 6C 2.9GHz 15MB 1600MHz 130W; E5-2670 8C 2.6GHz 20MB 1600MHz 115W; E5-2680 8C 2.7GHz 20MB 1600MHz 130W; E5-2690 8C 2.9GHz 20MB 1600MHz 135W; |
| Max CPU Clk Spd | Up to 2.9 GHz |
| CPU Cache | 10, 15 or 20 MB per CPU |
| Max # Core(s) | 2, 4, 6 or 8 Cores per CPU |
| Memory Slot(s) | 24 DIMMS (12 per CPU) |
| Memory Capacity | Up to 768 GB |
| Memory Expansion | E5-2600 v2:
E5-2600:
|
| Drive Bays | Up to 32 1.8″ SSD bays, or 16 2.5″ hot-swap SAS/SATA bays, or up to six 3.5″ hot-swap SAS/SATA bays, or up to eight 2.5″ Simple Swap SATA bays, or up to six 3.5″ Simple Swap SATA bays. |
| Capacity | Up to 19.2 TB with 1.2 TB 2.5″ SAS HDDs, up to 16 TB with 1 TB 2.5″ NL SAS/SATA HDDs, up to 12.8 TB with 400 GB 1.8″ SATA SSDs, up to 25.6 TB with 1.6 TB 2.5″ SAS SSDs, or up to 24 TB with 4 TB 3.5″ NL SAS/SATA HDDs. Intermix of SAS/SATA is supported. |
| HDD Suitability | SAS/SATA/SSD |
| RAID Controller | ServeRAID M5100 |
| RAID Options | 6 Gb SAS/SATA: RAID 0, 1, 10 with integrated M5110e or optional M5110; optional upgrades to RAID 5, 50 are available (zero-cache; 512 MB battery-backed cache; 512 MB or 1 GB flash-backed cache). Optional upgrade to RAID 6, 60 is available for M5110e or M5110 with 512 MB or 1 GB cache upgrades.
12 Gb SAS/SATA (support is planned for later in 2013): RAID 0, 1, 10 with optional M5210; optional upgrades to RAID 5, 50 are available (zero-cache; 1 GB non-backed cache; 1 GB or 2 GB flash-backed cache). Optional upgrade to RAID 6, 60 is available for M5210 with 1 GB or 2 GB cache upgrades. |
| Supported OS | Microsoft Windows Server 2012 R2 (support is planned for earlier in 2014), 2012, 2008 R2 and 2008, Red Hat Enterprise Linux 5 and 6, SUSE Linux Enterprise Server 10 and 11, VMware ESX 4.1 and VMware ESXi 4.1 embedded hypervisor (not supported with E5-2600 v2 models), VMware vSphere 5 (ESXi) and vSphere 5.1 (ESXi). |
| USB Port(s) | 2 front/4 back/2 internal |
| PCI Slot(s) | Up to six slots depending on the riser cards installed. The slots are as follows:
Optional riser cards available with PCIe x8 or PCIe x16 or PCI-X slots. |
| Serial Ports | 1x DB-9 Serial Port |
| LAN Socket(s) | Four integrated Gigabit Ethernet 1000BASE-T ports (RJ-45); two embedded 10 Gb Ethernet ports (10GBASE-T RJ-45 or 10GBASE-SR SFP+ based) on optional 10 Gb Ethernet mezzanine card (does not consume PCIe slot). |
| Graphics / GPU | Matrox G200eR2 with 16 MB memory integrated into the IMM2. Maximum resolution is 1600×1200 at 75 Hz with 16 M colors. |
| Standard | Three-year customer-replaceable unit and on-site limited warranty with 9×5 next business day (NBD). |
| Optional | Optional service upgrades are available through IBM ServicePacs®: Four-hour or two-hour response time, eight-hour fix time, one-year or two-year warranty extension, remote technical support for IBM hardware and some IBM and third-party applications. |
