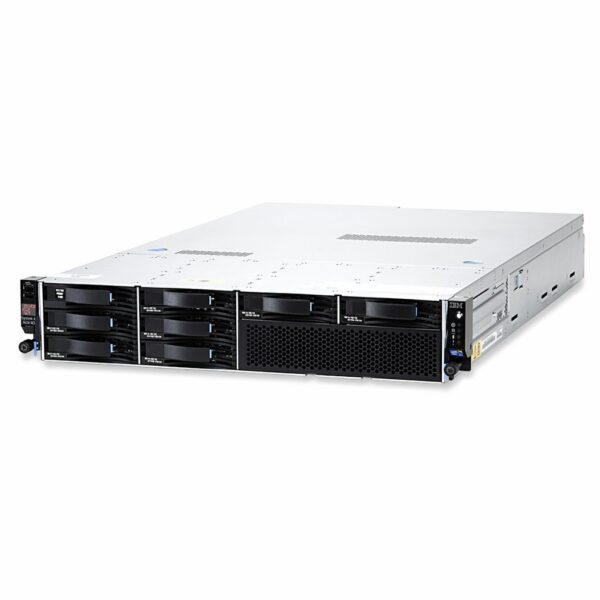

IBM System x3620 M3 Rack Mount Server
IBM System x3620 M3 Rack Mount Server
| Part No. | 7376A2G |
|---|---|
| Rack Units | 2 U |
| Height | 86.5 |
| Width | 488 |
| Depth | 749.4 |
| CPU Socket(s) | 2 Intel® Xeon® 5500 or 5600 series processors |
| Compatible CPU(s) | 6-Core Xeon® L5600/X5600 4-Core Xeon® E5600/L5600 4-Core Xeon® E5500 |
| Max CPU Clk Spd | Up to 3.06 GHz |
| CPU Cache | 4, 8 or 12 MB Shared Level 3 |
| Max # Thread(s) | Up to 24 per Machine |
| Max # Core(s) | 2, 4 or 6 per CPU |
| Memory Slot(s) | 12 |
| Memory Capacity | 192 GB (12x 16 GB) |
| Drive Bays | Up to four 3.5″ simple-swap SATA HDDs or up to eight 3.5″ hot-swap SAS/SATA HDDs |
| Capacity | Up to 16.0 TB |
| HDD Suitability | 3.5″ Hot-swap SAS/SATA, simple-swap SATA |
| RAID Controller | ServeRAID M1015, M5014, M5015, or BR10il |
| RAID Options | Embedded software RAID-0, -1 or hardware RAID-0, -1, -1E or RAID-0, -1, -10 (optional -5 with SED function) or RAID-0, -1, 10, -5, -50 (optional -6,-60 with SED function and optional battery), model dependent. |
| Supported OS | Microsoft® Windows® Server, Red Hat Linux®, SUSE Linux, VMware |
| USB Port(s) | 5 (2 front, 2 rear, 1 internal for an optional tape drive, IBM RDX Removable Disk Backup System, plus a USB flash memory key containing an embedded hypervisor is supported via another internal USB port) |
| PCI Slot(s) | Two x8 PCIe Gen II slots and one x4 PCIe Gen II buried slot |
| Serial Ports | 1 (rear) |
| LAN Socket(s) | 2x GbE Ports |
| LAN Controller(s) | Intel 82575 |
| Bandwidth | Optional 10 GbE |
| Graphics / GPU | Matrox G200eV (in IMM) standard (NVIDIA FX580 optional) |
| Resolution (Native) | 1280×1024 at 60Hz (32 bits) or 1600×1200 at 85Hz (16 bits) |
| Standard | 3-year customer replaceable unit and on-site limited warranty |
7376B2G; 7376D2G; 737644G; 737664G; 7376A2G; 737646G
