Huawei S5700-52P-PWR-LI-AC – Product Documentation

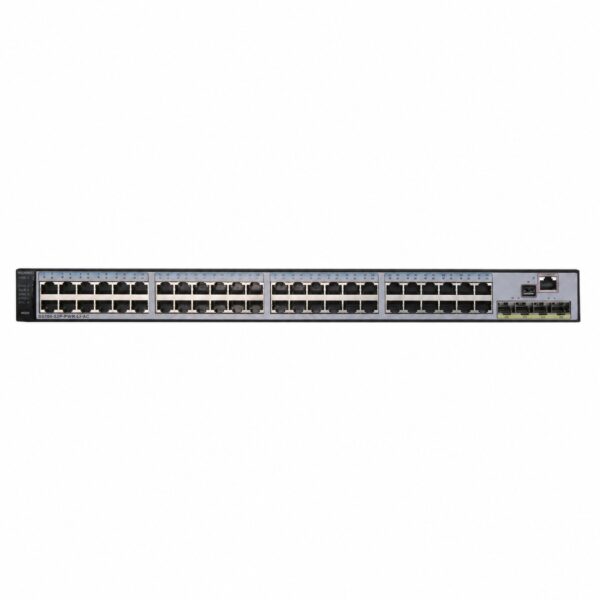

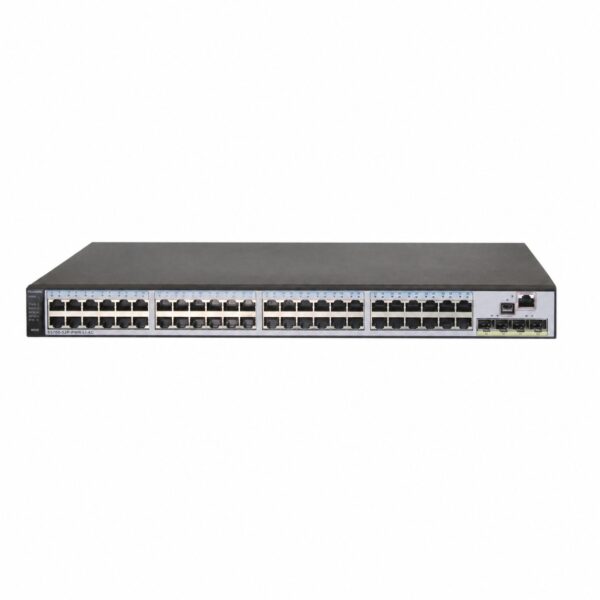

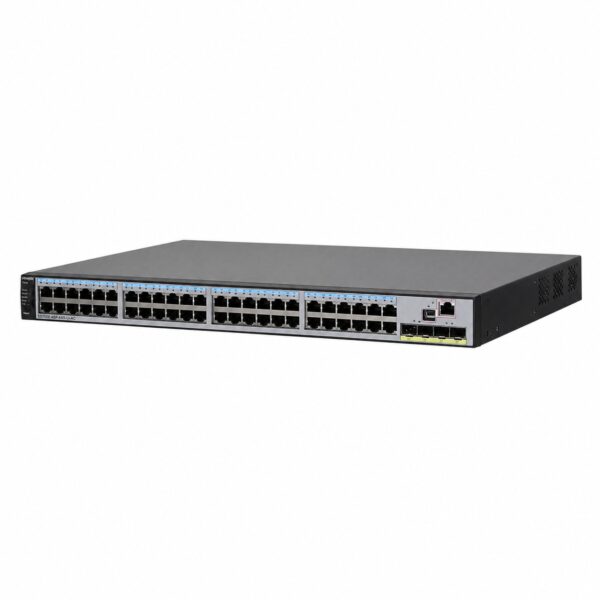

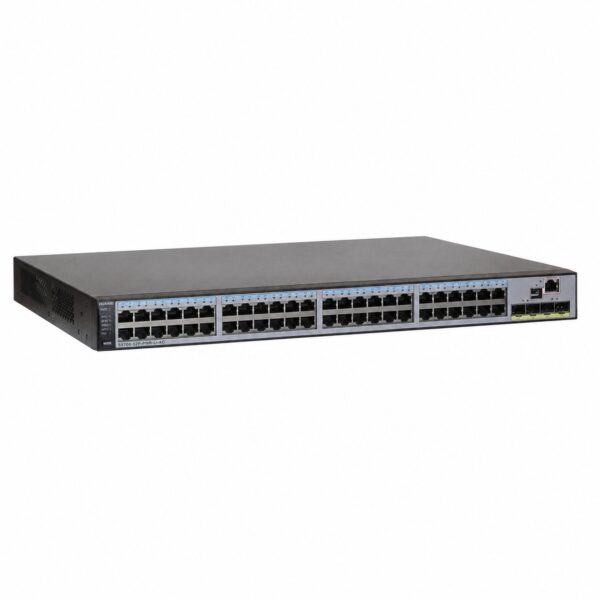

Name: Huawei S5700-52P-PWR-LI-AC Switch - SunSpike
SKU: S5700-52P-PWR-LI-AC

Product Overview

The Huawei S5700-52P-PWR-LI-AC is a fully managed, next-generation energy-saving Gigabit Ethernet switch designed for medium-sized enterprises. It belongs to the S5700-LI series and operates at Layer 3, providing high-performance switching with a switching capacity of 256 Gbps.

The switch is equipped with 48 PoE+ 10/100/1000BASE-T electrical ports and 4 Gigabit SFP uplink ports, delivering a total of 52 ports for flexible network deployment. Built on Huawei’s Versatile Routing Platform (VRP), the S5700-LI supports intelligent stacking (iStack), advanced hibernation management, flexible Ethernet networking, and diversified security controls.

Key features include:

Power over Ethernet (PoE+): The built-in power module provides up to 370 W of PoE power, enabling remote power delivery to wireless APs, IP cameras, and other PoE-powered devices.
Redundant Power Support: The switch supports an external RPS (Redundant Power System) for system power backup.
High Availability: Supports SmartLink, RRPP (Rapid Ring Protection Protocol), and E-Trunk for millisecond-level link redundancy and failover.
Comprehensive Security: Supports 802.1x authentication, DHCP Snooping, ACLs, and MAC/IP/port/VLAN binding.
IPv6 Readiness: Hardware supports IPv4/IPv6 dual stack and IPv6 over IPv4 tunnels, ensuring smooth transition from IPv4 to IPv6 networks.
Green Technology: Supports IEEE 802.3az Energy-Efficient Ethernet (EEE) for reduced power consumption during low traffic periods.

The S5700-52P-PWR-LI-AC is ideal for use as an access or aggregation switch in campus networks, enterprise networks, and Internet data center Gigabit-to-desktop deployments.

Technical Specifications

Category	Specification
Model	S5700-52P-PWR-LI-AC
Product Type	Gigabit Ethernet switch, Layer 3
Switching Capacity	256 Gbps
Forwarding Performance	78 Mpps
MAC Address Table Size	16K
Memory (RAM)	256 MB
Flash Memory	V200R001: 64 MB; V200R002 and later: 200 MB
Ports	48 × 10/100/1000BASE-T PoE+ ports, 4 × 1000BASE-X SFP ports
Port Structure	Non-modular
Expansion Slots	2 expansion slots
Stacking	Supported (iStack)
VLAN	Supports 4K VLANs; Guest VLAN, Voice VLAN, MUX VLAN, GVRP, VLAN Mapping, SuperVLAN
QoS	Rate limiting, traffic policing, 8 queues per port; WRR, DRR, SP, WRR+SP, DRR+SP queue scheduling
Security	User分级 management; DOS/ARP/ICMP attack prevention; IP/MAC/port/VLAN binding; port isolation; port security; Sticky MAC
Multicast	IGMP v1/v2/v3 Snooping, IGMP Fast Leave, IGMP Proxy; VLAN multicast forwarding; PIM-SM, PIM-DM, PIM-SSM
Network Management	SNMP v1/v2/v3; eSight network management; WEB management; Telnet; RMON; automatic configuration; HTTPS; system logs;分级 alarms
EEE (Energy Efficient Ethernet)	IEEE 802.3az supported
Rated Voltage Range	100 V AC to 240 V AC, 50/60 Hz
Maximum Voltage Range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum Power Consumption	464.5 W (system: 94.5 W, PoE: 370 W)
Typical Power Consumption	41.2 W (30% traffic load, EEE enabled)
PoE Power Budget	370 W
Dimensions (H × W × D)	43.6 mm × 442.0 mm × 310.0 mm (1.72 in × 17.4 in × 12.2 in)
Weight (with packaging)	6 kg (13.23 lb)
Operating Temperature	0°C to 50°C (32°F to 122°F) at 0–1800 m altitude
Storage Temperature	–40°C to +70°C (–40°F to +158°F)
Service Port Surge Protection	Common mode: ±6 kV
Power Supply Surge Protection	±6 kV differential mode, ±6 kV common mode
RPS Support	Supported (external RPS1800)
MTBF	35.70 years
MTTR	2 hours
Availability	> 0.99999
